This class implements MeshNet protocol for microcontrollers. More...

#include <mesh.h>

Inheritance diagram for MeshNet:

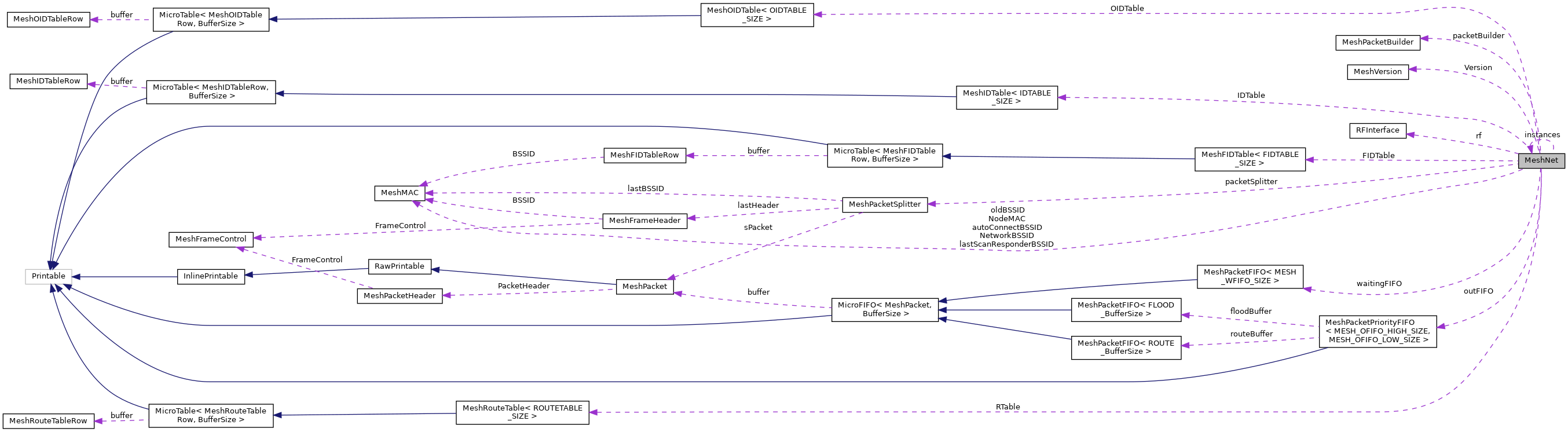

Collaboration diagram for MeshNet:

[legend]

Public Member Functions
	MeshNet ()
	Constructor without arguments. More...

virtual	~MeshNet ()
	Virtual destructor. More...

virtual bool	begin (MeshMAC mac, RFInterface &RFI)
	Starts MeshNet instance for current node. More...

virtual bool	begin ()
	Starts MeshNet instance for current node with last settings. More...

virtual bool	end ()
	Disables mesh node. It is recommended to disconnect from network before calling this method, because some packets for another nodes can be lost. If node won't be disconnected before calling this method, it will be disconnected forcibly. More...

bool	setChannel (uint8_t channel_)
	Sets network channel. More...

bool	connect (MeshMAC netBSSID, bool autoConnect=false, uint32_t autoConnectInterval=30000)
	Connects to specified network. More...

bool	directConnect (MeshMAC netBSSID, uint8_t interpreterAddr)
	Connects to specified network, but without scan. In this case, you have to know address of node, you want to connect to. More...

bool	disconnect ()
	Disconnects current node from mesh network. It is recommended to check isDisconnecting() and isConnected() methods after calling this method. But do not forget, that this method may not immediately disconnect node, because it has to send some remaining packets. That's why it is not recommended to create while loop, where isDisconnecting() and isConnected() will be checked without calling hande() method. More...

void	setAutoConnect (MeshMAC netBSSID, uint32_t retryInterval=60000)
	Enables auto connect to specified network. If auto connect is enabled and node is not connected to any network, it tries to connect to network, which BSSID is specified in parameter. If network is not found, connection is retried after time specified in retryInterval parameter. More...

void	disableAutoConnect ()
	Disables auto connection. More...

bool	startNetScan (void(responseCallback)(MeshNet , const MeshNetScanResult &), uint32_t timeout, MeshNetScanFlags flags, MeshMAC ResponderBSSID=0)
	Starts asynchronous network scanning. This function cannot be called when scan is actually running. More...

bool	startNetScan (void(responseCallback)(MeshNet , const MeshNetScanResult &), uint32_t timeout=2000)
	Starts asynchronous network scanning. This function cannot be called when scan is actually running. More...

int16_t	send (uint8_t addr, const uint8_t *data, uint16_t dataSize)
	Sends data packet to specified node. More...

int16_t	send (uint8_t addr, const MeshVariableArray< uint8_t > &data)
	Sends data packet to specified node. More...

int16_t	send (uint8_t addr, MeshVariableArray< uint8_t > &&data)
	Sends data packet to specified node. More...

int16_t	ping (uint8_t addr, uint32_t timeout, int16_t testDataLength=0)
	Sends ping packet to node with specified address. When ping response is received, callback function set using setOnPingResponseCallback() is called. This is also called, when ping timed out. More...

void	resetStatistics ()
	Resets statistics data. More...

virtual void	handle ()
	This method has to be called in main program loop as often as possible. More...

uint8_t	getMinChannel ()
	Get minimum channel number, that can be set using setChannel() method. More...

uint8_t	getMaxChannel ()
	Get maximum channel number, that can be set using setChannel() method. More...

bool	isConnected () const
	Checks if node is connected to any network. More...

bool	isDisconnecting () const
	Checks if node is disconnecting right now. Node is finally disconnected after disconnect timeout or when no packet for that network is stored in some FIFO on current node. More...

MeshConnectionState	getConnectionState () const
	Gets connection state of current node. More...

bool	netScanRunning () const
	Checks if network scan is running. More...

bool	pathExists (uint8_t address) const
	Checks if path to specified node exists. More...

bool	pathCreating (uint8_t address) const
	Checks if path to specified node is creating right now. More...

uint8_t	getNeighborNode (uint8_t address) const
	Gets address of neighbor node, which is next node in path. More...

uint8_t	availablePacketsToSend (uint8_t destAddress, bool ACK_R=false) const
	Checks how many packet can be sent right now. More...

MeshPacketStatus	getPacketStatus (uint8_t ID) const
	Tries to check, where is packet, that was sent by it's ID. More...

bool	canBeGateway () const
	Checks if current node can be used as gateway or is used as gateway. More...

bool	isMainGateway () const
	Checks if node is main gateway of network. Only main gateway can manage network. Other nodes, which are marked as gateway, but are connected to network are backup gateways. More...

bool	isBackupGateway () const
	Checks if node is backup gateway of network. Only main gateway can manage network. Other nodes, which are marked as gateway, but are connected to network are backup gateways. Those nodes acts as normal node, but when main gateway is lost, one of backup nodes will act as gateway. More...

MeshMAC	getNetworkBSSID () const
	Gets BSSID of network, the node is connected to. More...

MeshMAC	getNodeMAC () const
	Gets current node unique MAC address. More...

uint8_t	getNodeAddress () const
	Gets address of current node. If node is not connected to any network, 253 is returned. More...

RFInterface *	getRadioInterfacePtr () const
	Gets pointer to radio interface. More...

uint32_t	getLostFramesTotalCnt () const
	Gets total count of lost frames. Frame is marked as lost, when attempt to send false, because of radio error or carriage sense detected interference. Frame is also marked as lost, when it need to be acknowledged, but ACK was not received. This value also includes frames for current network (see getLostFramesInNetworkCnt()). This value is reset when end(), clear() or resetStatistics() is called. More...

uint32_t	getLostFramesInNetworkCnt () const
	Gets count of lost frames for current network. Frame is marked as lost, when attempt to send false, because of radio error or carriage sense detected interference. Frame is also marked as lost, when it need to be acknowledged, but ACK was not received. This value does not include count of lost frames, that are not for current network. This value is reset when end(), clear() or resetStatistics() is called or node is disconnected. More...

uint32_t	getLostPacketsTotalCnt () const
	Gets total count of lost packets created by current node. This count does not include packet, that was lost outside of node, for example when response to packet (marked with ACK-R or system packet which need response) was not received until specified timeout (see getLostRemotePacketsCnt()). This value also includes lost data packets, not only system packets. This value also includes packets for current network (see getLostPacketsTotalCnt()). This value is reset when end(), clear() or resetStatistics() is called. More...

uint32_t	getLostPacketsInNetworkCnt () const
	Gets count of lost packets created by current node for current network. This count does not include packets, that were lost outside of node, for example when response to packet (marked with ACK-R or system packet which need response) was not received until specified timeout (see getLostRemotePacketsCnt()). This value also includes lost data packets, not only system packets. This value does not include count of lost packets, that are not for current network. This value is reset when end(), clear() or resetStatistics() is called or node is disconnected. More...

uint32_t	getLostDataPacketsCnt () const
	Gets count of lost data packets created by current node for current network. This count does not include packets, that were lost outside of node, for example when response to packet (marked with ACK-R or system packet which need response) was not received until specified timeout (see getLostRemoteDataPacketsCnt()). This value includes only data packets. This value does not include count of lost packets, that are not for current network. This value is reset when end(), clear() or resetStatistics() is called. More...

uint32_t	getLostRemotePacketsCnt () const
	Gets total count of lost packets outside of current node created by current node. This value includes only packet, that was lost outside of node, for example when response to packet (marked with ACK-R or system packet which need response) was not received until specified timeout. To get total lost packets use this formula: getLostPacketsTotalCnt() + getLostRemotePacketsCnt(). This value also includes lost data packets, not only system packets. This value is reset when end(), clear() or resetStatistics() is called. More...

uint32_t	getLostRemoteDataPacketsCnt () const
	Gets total count of lost data packets outside of current node created by current node. This value includes only packet, that was lost outside of node and were marked as data packets, for example when response to packet marked with ACK-R was not received until specified timeout. To get total lost packets use this formula: getLostPacketsTotalCnt() + getLostRemotePacketsCnt(). This value is reset when end(), clear() or resetStatistics() is called. More...

uint32_t	getLostRelayiedPacketsCnt () const
	Gets count of lost relayed packets in current node (packets, that were not created by current node). This value also includes data packets, not only system packets. This value is reset when end(), clear() or resetStatistics() is called. More...

uint32_t	getSentFramesTotalCnt () const
	Gets total count of successfully sent frames. Frame is successfully sent, when send was successful and frame was acknowledged when ACK was needed. This value also includes frames for current network (see getSentFramesInNetworkCnt()). This value is reset when end(), clear() or resetStatistics() is called. More...

uint32_t	getSentFramesInNetworkCnt () const
	Gets total count of successfully sent frames. Frame is successfully sent, when send was successful and frame was acknowledged when ACK was needed. This value is reset when end(), clear() or resetStatistics() is called or node is disconnected. More...

uint32_t	getSentPacketsTotalCnt () const
	Gets total count of successfully sent packets created by current node. This value also includes packets, that was lost outside of this node (see getLostRemotePacketsCnt()). This value also includes sent data packets, not only system packets. This value also includes packets for current network (see getSentPacketsInNetworkCnt()). This value is reset when end(), clear() or resetStatistics() is called. More...

uint32_t	getSentPacketsInNetworkCnt () const
	Gets count of successfully sent packets created by current node for current network. This value also includes packets, that was lost outside of this node (see getLostRemotePacketsCnt()). This value also includes sent data packets, not only system packets. This value is reset when end(), clear() or resetStatistics() is called or node is disconnected. More...

uint32_t	getSentDataPacketsCnt () const
	Gets count of successfully sent data packets created by current node for current network. This value also includes packets, that was lost outside of this node (see getLostRemoteDataPacketsCnt()). This value also includes only data packets. This value is reset when end(), clear() or resetStatistics() is called. More...

uint32_t	getRelayiedPacketsCnt () const
	Gets count of successfully relayed packets (packets, that were not created by current node). This value also includes data packets, not only system packets. This value is reset when end(), clear() or resetStatistics() is called. More...

bool	printRTable (OSTREAM *stream) const
	Prints Route Table in pretty format to stream. More...

bool	printIDTable (OSTREAM *stream) const
	Prints ID Table in pretty format to stream. More...

bool	printFIDTable (OSTREAM *stream) const
	Prints FID Table in pretty format to stream. More...

bool	printOIDTable (OSTREAM *stream) const
	Prints OID Table in pretty format to stream. More...

bool	printWaitingFIFO (OSTREAM *stream) const
	Prints waiting FIFO buffer in pretty format to stream. More...

bool	printOutFIFO (OSTREAM *stream) const
	Prints output FIFO buffer in pretty format to stream. More...

size_t	printMeshNetworkInfo (OSTREAM &stream) const
	Prints informations about network, node is connected to. More...

size_t	printStatistics (OSTREAM &stream) const
	Prints statistics informations. More...

void	setOnConnectedCallback (void(callback)(MeshNet ))
	Sets callback function, which is called when current node is connected to network. More...

void	setOnDisconnectedCallback (void(callback)(MeshNet , MeshDisconnectReason, MeshMAC, uint8_t))
	Sets callback function, which is called when current node is disconnected from network or when connection to network was aborted. More...

void	setOnRemoteNodeDisconnectedCallback (void(callback)(MeshNet , uint8_t))
	This method is called when some node (not current node) is disconnected from network. More...

void	setOnPingResponseCallback (void(callback)(MeshNet , uint8_t, uint8_t, MeshPacketError, uint8_t, uint32_t, const uint8_t *, int16_t))
	Sets callback function, which is called when ping response is received, or when ping timed out. More...

void	setOnPacketErrorCallback (void(callback)(MeshNet , MeshPacketError, uint8_t, uint8_t, const MeshPacket *))
	Sets callback function, which is called when packet timeout happened and packet is removed. More...

void	setOnReceive (void(callback)(MeshNet , MeshPacket &))
	Sets callback function, which is called when data packet is received. More...

Static Public Member Functions
static size_t	printMeshConnectionState (OSTREAM &stream, MeshConnectionState value)
	Prints MeshConnectionState to stream. More...

static size_t	printMeshDisconnectReason (OSTREAM &stream, MeshDisconnectReason value)
	Prints MeshDisconnectReason to stream. More...

static size_t	printMeshPacketError (OSTREAM &stream, MeshPacketError value)
	Prints MeshPacketError to stream. More...

static MeshNet **	getInstances ()
	Gets array of all created MeshNet instances. More...

Static Public Attributes
const static MeshVersion	Version = MESHNET_VERSION
	Version of MeshNet protocol. More...

Protected Member Functions
	MeshNet (bool canBeGateway)
	Universal protected constructor. More...

uint8_t	getNewID ()
	Generates new ID for packet. More...

uint8_t	getLastID ()
	Gets last generated ID. More...

void	handleReceivedInterrupt ()

void	onFrameReceive (MeshPacketBuilder builder, MeshPacketBuilderStatus status, const MeshFrameHeader &frameHeader, const uint8_t frameData, uint8_t frameDataSize, int8_t rssi)
	Method, which is called, when new valid frame is received. This method is used to calculate CTS time. More...

bool	checkPacket (MeshPacketBuilder builder, const MeshPacketHeader &packetHeader, MeshMAC BSSID, SystemPacketType systemPacketType, const uint8_t frameData, uint8_t frameDataSize, int8_t rssi)
	This method is called when first frame of packet has been received. It has to decide, if packet has to be processed or ignored. More...

void	processReceived ()
	Processes received frames. More...

virtual void	processPacket (MeshPacket &packet, MeshMAC BSSID)
	Processes received packet. Called in processReceived() method. More...

void	processTransmit ()
	Processes transmission of one frame from output FIFO. More...

void	abortCurrentPacketTransmission (bool packetLost)
	Aborts splitting and transmission of packet currently loaded in packetSplitter. More...

void	restartCurrentPacketTransmission ()
	Restarts transmission of current packet. Splitting is restarted. More...

void	restartCurrentPacketTransmission (uint8_t maxFrameSize)
	Restarts transmission of current packet. Splitting is restarted. More...

bool	packetTransmitting ()
	Checks if some frame of currently splitting packet has been already transmitted. More...

bool	packetSplitting ()
	Checks if some packet is loaded in packet splitter. More...

bool	systemNetworkScan (MeshMAC responderBSSID, MeshNetScanFlags flags)
	Perform network scan invoked by system before connecting to any network. This can be done only when no other scan is running right now and only if node is disconnected. More...

bool	sendACK (const MeshACKSetup &setup, bool asDisconnected=false, bool asConnectedToOld=false)
	Sends ACK to last received frame. This has to be done when builder returns status MPB_FullPacketOK or MPB_PartPacketOK. More...

bool	sendERR_ACK (const MeshACKSetup &setup, ERR_ACK_ErrorCode ErrorCode, uint8_t RepairValue, bool asDisconnected=false, bool asConnectedToOld=false)
	Sends ERROR ACK to last received frame. This has to be done when some error happened to last received frame. More...

bool	PacketToFrame (const MeshPacket &packet, MeshMAC bssid, uint8_t *outBuffer, uint8_t &bufferSize) const
	Converts packet to frame. This can be called only if you are sure, that this packet won't be splitted to multiple frames, but will be converted to only one frame. Routed packets (ROE == 1 && RE == 1) cannot be converted. More...

bool	SendPacketAsFrame (MeshPacket &packet, MeshMAC bssid)
	Sends packet, which is converted using method PacketToFrame() to frame, which is then sends. Packet is cleared after sending. Only packets, that won't be splitted to multiple frames will be sent, else false is returned. Packet ID is automatically generated here, same as using pushOutPacket() method, also From field is filled by current node address if needed. More...

virtual void	onNodeLost (uint8_t address, bool nodeLostForever)
	This method is called, when some node is disconnected from network or does not responds to sent packet. More...

bool	disconnectPriv (MeshDisconnectReason reason, bool doNotDisconnectImmediatelly, bool forceDisconnect=false)
	Disconnects current node from mesh network. It is recommended to check isDisconnecting() and isConnected() methods after calling this method. But do not forget, that this method may not immediately disconnect node, because it has to send some remaining packets. That's why it is not recommended to create while loop, where isDisconnecting() and isConnected() will be checked without calling handle() method. More...

bool	sendDisconnectPacket (MeshNetDisconnectPacketType type)
	Immediately sends disconnect packet (without pushing to outFIFO), that says current node is disconnecting. OnSystemDisconnect() method is not called here. More...

void	onSystemDisconnect (MeshDisconnectReason reason)
	Do necessary work after node was disconnected or connection was aborted. onDisconnected method is called here. More...

virtual void	onOIDTRemove (int16_t index, const MeshOIDTableRow &oldRow, uint8_t oldRawLifeTime, MeshOIDTableRemoveReason reason)
	This method is called when any row from OID table is removed. More...

void	onNewPath (int16_t index, const MeshRouteTableRow &row)
	This method is called when new path was found (created). It is not called if path is prolonged. More...

void	onBufferPacketLost (const MeshPacket &packet, MeshPacketError error)
	This method is called when some packet created by this node was lost, because some FIFO, where it has to be stored is full or it was removed from FIFO. This method does some clearing process (clears OIDT row of current packet if exists) and reports error if packet was created by current node. More...

void	onBufferPacketRemove (const MeshPacket &packet, bool ignoreCurrentNetworkPacket, bool packetLost)
	This method is called when any packet is removed from waitingFIFO or outFIFO. More...

virtual void	onPacketError (MeshPacketError error, uint8_t packetID, uint8_t packetDest, SystemPacketType packetType, const MeshPacket *packet_ptr)
	This method is called when some error happened to any packet created by current node. More...

bool	systemPing (uint8_t addr, uint32_t timeout)
	Sends ping packet to node with specified address. When ping response is received, onSystemPingReceived() is called. This is also called, when ping timed out. This can be called only once. More...

void	onSystemPingReceived (bool valid, uint32_t duration)
	This method is called when system ping packet response was received. More...

virtual void	routeTableUpdate (const MeshPacketHeader &header, MeshMAC BSSID, int8_t rssi)
	Updates route table when valid packet from node with same network is received.ň More...

MeshPacketError	pushOutPacket (MeshPacket &packet, uint32_t timeout=0)
	Pushes packet to output FIFO buffer. More...

bool	createPath (uint8_t address)
	Creates path to specified node. More...

void	checkWaitingBuffer ()
	Checks if there are some packets in waiting buffer, which can be sent. Those packets will be sent in this method. More...

Static Protected Member Functions
static void	onFrameReceiveStatic (MeshPacketBuilder builder, MeshPacketBuilderStatus status, const MeshFrameHeader &frameHeader, const uint8_t frameData, uint8_t frameDataSize, int8_t rssi)
	Processed received messages. More...

static bool	checkPacketStatic (MeshPacketBuilder builder, const MeshPacketHeader &packetHeader, MeshMAC BSSID, SystemPacketType systemPacketType, const uint8_t frameData, uint8_t frameDataSize, int8_t rssi)
	Static function, which can be used as callback. In this function correct checkPacket() method is called. More...

static bool	isForeignNetworkPacket (const MeshPacket &packet, MeshMAC bssid)
	Checks if packet is for current network (with specified BSSID in BSSID parameter) or not. More...

static void	onOIDTRemoveStatic (MeshOIDTable< OIDTABLE_SIZE > *table, int16_t index, const MeshOIDTableRow &oldRow, uint8_t oldRawLifeTime, MeshOIDTableRemoveReason reason)
	Static function, which can be used as callback. In this function correct onOIDTRemove() method is called. More...

static void	onNewPathStatic (MeshRouteTable< ROUTETABLE_SIZE > *table, int16_t index, const MeshRouteTableRow &row, uint8_t rawLifeTime)
	Static function, which can be used as callback. In this function correct onNewPath() method is called. More...

Protected Attributes
const bool	canBeGateway_:1
	True if current node can be used as gateway. More...

bool	sentFrameWasACK:1
	True when sent frame was acknowledged. More...

bool	packetSplittingStarted:1
	True if packet splitting has started. More...

bool	sendingPacketIsForeign:1
	True if packet, that is loaded in packetSplitter is for foreign network. More...

bool	ignoreRSSIThreshold:1
	True to ignore RSSI threshold on received network scan responses during scan. More...

bool	waitingBufferCheck:1
	True if waitBuffer has to be checked and some packets has to be sent. More...

bool	beginCalled:1
	True if begin was called. More...

bool	receiveInterruptEnabled:1
	True if interrupt will be fired when new frame is received. More...

uint8_t	channel
	Channel number, that will be set or is set. More...

uint8_t	AddrPriv = UNKNOWN_MESH_ADDRESS
	Address of current node. Can be between 0 - 250 or 254 when disconnected. More...

MeshMAC	NodeMAC
	Unique node physical MeshMAC address. More...

MeshMAC	NetworkBSSID
	If node is disconnected, this is same as NodeMAC, else NetworkBSSID equals BSSID address of connected network. More...

char	SSID [65]
	SSID of network, node is connected to. More...

uint32_t	AddrReservedUntil = 0
	Time in milliseconds until which address of current node is for sure reserved in main gateway node's DHCP table. Address reservation in DHCP table is prolonged, when gateway receives any packet from current node. More...

uint16_t	AddrReservationTime = 0
	Time in minutes the address can be reserved for in DHCP table in main gateway. This value is obtained during connection and it cannot change when connected to network. More...

uint8_t	oldNodeAddress = UNKNOWN_MESH_ADDRESS
	Old node address, that was assigned to node when it has been connected to some network. More...

MeshMAC	oldBSSID
	Old BSSID of network the node was connected to last time. More...

RFInterface *	rf
	Pointer to radio interface, that is used by current class. More...

uint64_t	CTS_until = 0
	Clear to send until this time in microseconds, so node cannot send frames until this time. ACK packets have exception from this rule. More...

uint64_t	lastReceiveTime = 0
	Time when last frame was received in microseconds. More...

uint32_t	lastSentTime = 0
	Time, when was last frame sent in milliseconds. More...

uint8_t	frameTranCnt = 0
	(Re)Transmission count of last sent frame. More...

MeshConnectionState	connectionState = MeshConnectionState::MeshDisconnected
	Connection state of current node. More...

MeshDisconnectReason	lastDisconnectReason = MeshDisconnectReason::MDR_None
	Last disconnect or connection fail reason. More...

uint8_t	currentNetworkPackets = 0
	Count of packets in buffers, that belongs to the current connected network. More...

uint32_t	scanEndTime = 0
	Time in milliseconds, when network scan ends. More...

uint32_t	lastScanTime = 0
	Time in milliseconds, when network scan was last time executed. More...

uint8_t	lowestHopsToGateway = 255
	The smallest count of hops to gateway established during last system network scan. More...

uint8_t	lowestHopsToGateway_Addr = INVALID_MESH_ADDRESS
	Address of node with the smallest count of hops to gateway established during last system network scan. More...

MeshMAC	lastScanResponderBSSID
	BSSID of network, the system network scan was assigned to. More...

uint32_t	connectionStepTime = 0
	Time in milliseconds, when connection state was last changed. More...

MeshMAC	autoConnectBSSID
	BSSID of network, this node has to automatically connect to. More...

uint32_t	nextAutoConnectTime = 0
	Time in milliseconds, when auto connection attempt will be invoked. More...

uint32_t	autoConnectInterval = 0
	Auto connect interval in milliseconds. More...

uint32_t	disconnectUntil = 0
	Until this time in milliseconds node has to be disconnected. More...

int16_t	systemPingID = -1
	ID of last system ping packet. More...

void(*	netScanResponseCallback )(MeshNet *, const MeshNetScanResult &)
	Pointer to callback function called when network scan response was received. More...

void(*	onConnected )(MeshNet *)
	This method is called when node is connected to network. More...

void(*	onDisconnected )(MeshNet *, MeshDisconnectReason, MeshMAC, uint8_t)
	This method is called when node is disconnected from network. More...

void(*	onRemDisconnected )(MeshNet *, uint8_t)
	This method is called when some node from network is disconnected. More...

void(*	onReceive )(MeshNet *, MeshPacket &)
	Function called when data packet is received. More...

void(*	onPingResponse )(MeshNet , uint8_t, uint8_t, MeshPacketError, uint8_t, uint32_t, const uint8_t , int16_t)
	Function called when ping response is received or when ping timed out. More...

void(*	onPacketErrorCallback )(MeshNet , MeshPacketError, uint8_t, uint8_t, const MeshPacket )

uint32_t	lostFramesTotal = 0

uint32_t	lostFramesInNetwork = 0

uint32_t	lostPacketsTotal = 0

uint32_t	lostPacketsInNetwork = 0

uint32_t	lostRemotePackets = 0

uint32_t	lostRemoteDataPackets = 0

uint32_t	lostDataPackets = 0

uint32_t	lostRelayiedPackets = 0

uint32_t	sentFramesTotal = 0

uint32_t	sentFramesInNetwork = 0

uint32_t	sentPacketsTotal = 0

uint32_t	sentPacketsInNetwork = 0

uint32_t	sentDataPackets = 0

uint32_t	relayiedPackets = 0

MeshPacketBuilder	packetBuilder
	Combines received MeshFrames to MeshPacket. More...

MeshPacketSplitter	packetSplitter
	Splits MeshPacket to multiple MeshFrames for transmission. More...

MeshRouteTable< ROUTETABLE_SIZE >	RTable
	Routing table. More...

MeshIDTable< IDTABLE_SIZE >	IDTable
	Table of received packets ID (ID+Source). This check, if some packet has been received multiple times. More...

MeshFIDTable< FIDTABLE_SIZE >	FIDTable

MeshOIDTable< OIDTABLE_SIZE >	OIDTable
	Table of sent (output) packets ID and destination (source is current node address). Only packet, that was created by current node can be stored here, relayed packet cannot be stored here. This table is for checking, what action was done and what packet is expected (response or ACK-R response). More...

MeshPacketPriorityFIFO< MESH_OFIFO_HIGH_SIZE, MESH_OFIFO_LOW_SIZE >	outFIFO
	Packets that waits in buffer to be sent. More...

MeshPacketFIFO< MESH_WFIFO_SIZE >	waitingFIFO
	Packets, that has to be sent as routed packet, but path is not known yet. More...

Private Member Functions
void	addThisToInstArr ()
	Writes new class instance to the array of all created MeshNet instances. We need to know all created instances to call correct callback method. This method has to be called in constructor. More...

void	removeThisFromInstArr ()
	Removes this instance from instances array. This method has to be called in destructor. More...

void	clear (bool disconnecting)
	Clears current class data. More...

Private Attributes
uint8_t	msgIDPriv = 0xFF
	Last value of packet ID. More...

Static Private Attributes
static MeshNet *	instances [] = { 0 }
	Array of all created MeshNet instances. Thanks to this array callback functions of MicroTable, PacketSplitter and PacketBuilder classes can be set. If this array is full. New created instances will not work correctly. More...

static uint8_t	instCount = 0
	Count of created instances of this class. More...

Detailed Description

This class implements MeshNet protocol for microcontrollers.

Note: When this class is inherited, base constructor has to be always called.

Constructor & Destructor Documentation

◆ MeshNet() [1/2]

MeshNet::MeshNet ( )

inline

Constructor without arguments.

Note: When this class is inherited, base constructor has to be always called.

◆ ~MeshNet()

MeshNet::~MeshNet ( )

virtual

Virtual destructor.

◆ MeshNet() [2/2]

MeshNet::MeshNet ( bool canBeGateway )

protected

Universal protected constructor.

Member Function Documentation

◆ abortCurrentPacketTransmission()

void MeshNet::abortCurrentPacketTransmission ( bool packetLost )

inlineprotected

Aborts splitting and transmission of packet currently loaded in packetSplitter.

Parameters

packetLost True when packet was lost.

◆ addThisToInstArr()

void MeshNet::addThisToInstArr ( )

private

Writes new class instance to the array of all created MeshNet instances. We need to know all created instances to call correct callback method. This method has to be called in constructor.

◆ availablePacketsToSend()

uint8_t MeshNet::availablePacketsToSend	(	uint8_t	destAddress,
		bool	ACK_R = `false`
	)		const

Checks how many packet can be sent right now.

Note: It is recommended to leave at least 1 free space for packet, which can be used for packets, that has to be relayed.

Parameters

destAddress	Destination address of receiver node.
ACK_R	True if ACK response is requested.

Returns: Returns count of packets, that can be sent.

◆ begin() [1/2]

bool MeshNet::begin ( )

virtual

Starts MeshNet instance for current node with last settings.

Note: This method can be called only when begin(MeshMAC mac, RFInterface& RFI) has been called any time before, because parameters of that method are reused.

Returns: Returns true when instance started successfully.

Reimplemented in MeshNetGateway.

◆ begin() [2/2]

bool MeshNet::begin	(	MeshMAC	mac,
		RFInterface &	RFI
	)

virtual

Starts MeshNet instance for current node.

Parameters

mac	Node MAC address.

Note: Node MAC address has to be valid and unique.

Parameters

RFI	Radio interface, which is used for radio control.

Returns: Returns true when instance started successfully.

Reimplemented in MeshNetGateway.

◆ canBeGateway()

bool MeshNet::canBeGateway ( ) const

inline

Checks if current node can be used as gateway or is used as gateway.

◆ checkPacket()

bool MeshNet::checkPacket	(	MeshPacketBuilder *	builder,
		const MeshPacketHeader &	packetHeader,
		MeshMAC	BSSID,
		SystemPacketType	systemPacketType,
		const uint8_t *	frameData,
		uint8_t	frameDataSize,
		int8_t	rssi
	)

protected

This method is called when first frame of packet has been received. It has to decide, if packet has to be processed or ignored.

Parameters

builder	PacketBuilder, which called this method.
packetHeader	Received packet header.
BSSID	of packet transmitter.
systemPacketType	Type of system packet.
frameData	Part of received data from packet payload.
frameDataSize	Size of part of received data from packet payload.
rssi	RSSI value of received frame.

◆ checkPacketStatic()

bool MeshNet::checkPacketStatic	(	MeshPacketBuilder *	builder,
		const MeshPacketHeader &	packetHeader,
		MeshMAC	BSSID,
		SystemPacketType	systemPacketType,
		const uint8_t *	frameData,
		uint8_t	frameDataSize,
		int8_t	rssi
	)

staticprotected

Static function, which can be used as callback. In this function correct checkPacket() method is called.

◆ checkWaitingBuffer()

void MeshNet::checkWaitingBuffer ( )

protected

Checks if there are some packets in waiting buffer, which can be sent. Those packets will be sent in this method.

◆ clear()

void MeshNet::clear ( bool disconnecting )

private

Clears current class data.

Parameters

disconnecting True if clear is called, because node was disconnected

◆ connect()

bool MeshNet::connect	(	MeshMAC	netBSSID,
		bool	autoConnect = `false`,
		uint32_t	autoConnectInterval = `30000`
	)

Connects to specified network.

Connection steps:

Scan is done. Only nodes of network, we want to connect to will respond to that scan. Scan takes time specified by macro: MESH_SYS_NET_SCAN_TIMEOUT. The result of scan is an interpreter node address, which is the gateway or is near gateway.
Connection request is sent to the interpreter node.
If the interpreter node is gateway, this step and step 5 are skipped. Else the interpreter node will send routed packet to the gateway.
Gateway can refuse connection. If connection is granted, gateway will assign new address to the current node using DHCP table.
Gateway will send connection result to the interpreter node.

Current node will receive response to the connection. If connection was not refused, current node is connected to network.

Parameters

netBSSID	BSSID of network to connect to.
autoConnect	Enables auto connection to that network. For more see setAutoConnect() method.
autoConnectInterval	After this interval when connection failed, connect() method is called again.

Returns: Returns true when connecting process has started.

◆ createPath()

bool MeshNet::createPath ( uint8_t address )

protected

Creates path to specified node.

Parameters

address Address of node, to which path has to be created.

Returns: Returns true if path creation has started.

◆ directConnect()

bool MeshNet::directConnect	(	MeshMAC	netBSSID,
		uint8_t	interpreterAddr
	)

Connects to specified network, but without scan. In this case, you have to know address of node, you want to connect to.

Connection steps:

Connection request is sent to the interpreter node.
If the interpreter node is gateway, this step and step 4 are skipped. Else the interpreter node will send routed packet to the gateway.
Gateway can refuse connection. If connection is granted, gateway will assign new address to the current node using DHCP table.
Gateway will send connection result to the interpreter node.
Current node will receive response to the connection. If connection was not refused, current node is connected to network.
Parameters

netBSSID BSSID of network to connect to.

interpreterAddr Address of interpreter node.

Returns
Returns true when connecting process has started.

◆ disableAutoConnect()

void MeshNet::disableAutoConnect ( )

Disables auto connection.

◆ disconnect()

bool MeshNet::disconnect ( )

Disconnects current node from mesh network. It is recommended to check isDisconnecting() and isConnected() methods after calling this method. But do not forget, that this method may not immediately disconnect node, because it has to send some remaining packets. That's why it is not recommended to create while loop, where isDisconnecting() and isConnected() will be checked without calling hande() method.

Disconnection steps

Removing packets created by current node for network from waitingFIFO or outFIFO. isDisconnecting() and isConnected() will return true.
Disconnect packet is created and pushed to outFIFO.
Sending all packets from outFIFO for network until timeout MESH_DISCONNECT_TIMEOUT.
After timeout, or when outFIFO is clear, node is definitely disconnected. isDisconnecting() and isConnected() will return false here.
Returns
Returns true if disconnect started or node was immediately disconnected.

◆ disconnectPriv()

bool MeshNet::disconnectPriv	(	MeshDisconnectReason	reason,
		bool	doNotDisconnectImmediatelly,
		bool	forceDisconnect = `false`
	)

protected

Disconnects current node from mesh network. It is recommended to check isDisconnecting() and isConnected() methods after calling this method. But do not forget, that this method may not immediately disconnect node, because it has to send some remaining packets. That's why it is not recommended to create while loop, where isDisconnecting() and isConnected() will be checked without calling handle() method.

Disconnection steps

Removing packets created by current node for network from waitingFIFO or outFIFO. isDisconnecting() and isConnected() will return true.
Disconnect packet is created and pushed to outFIFO.
Sending all packets from outFIFO for network until timeout MESH_DISCONNECT_TIMEOUT.

After timeout, or when outFIFO is clear, node is definitely disconnected. isDisconnecting() and isConnected() will return false here.

Parameters

reason	Disconnect reason;
doNotDisconnectImmediatelly	If there is possibility to disconnect node immediately, don't do it.
forceDisconnect	True to force immediately disconnect from network.

Returns: Returns true if disconnect started or node was immediately disconnected.

◆ end()

bool MeshNet::end ( )

virtual

Disables mesh node. It is recommended to disconnect from network before calling this method, because some packets for another nodes can be lost. If node won't be disconnected before calling this method, it will be disconnected forcibly.

Reimplemented in MeshNetGateway.

◆ getConnectionState()

MeshConnectionState MeshNet::getConnectionState ( ) const

inline

Gets connection state of current node.

Returns: Returns connection state of current node.

◆ getInstances()

static MeshNet** MeshNet::getInstances ( )

inlinestatic

Gets array of all created MeshNet instances.

Returns: Returns pointer to array of all created MeshNet instances.

◆ getLastID()

uint8_t MeshNet::getLastID ( )

inlineprotected

Gets last generated ID.

Returns: Returns ID.

◆ getLostDataPacketsCnt()

uint32_t MeshNet::getLostDataPacketsCnt ( ) const

inline

Gets count of lost data packets created by current node for current network. This count does not include packets, that were lost outside of node, for example when response to packet (marked with ACK-R or system packet which need response) was not received until specified timeout (see getLostRemoteDataPacketsCnt()). This value includes only data packets. This value does not include count of lost packets, that are not for current network. This value is reset when end(), clear() or resetStatistics() is called.

◆ getLostFramesInNetworkCnt()

uint32_t MeshNet::getLostFramesInNetworkCnt ( ) const

inline

Gets count of lost frames for current network. Frame is marked as lost, when attempt to send false, because of radio error or carriage sense detected interference. Frame is also marked as lost, when it need to be acknowledged, but ACK was not received. This value does not include count of lost frames, that are not for current network. This value is reset when end(), clear() or resetStatistics() is called or node is disconnected.

◆ getLostFramesTotalCnt()

uint32_t MeshNet::getLostFramesTotalCnt ( ) const

inline

Gets total count of lost frames. Frame is marked as lost, when attempt to send false, because of radio error or carriage sense detected interference. Frame is also marked as lost, when it need to be acknowledged, but ACK was not received. This value also includes frames for current network (see getLostFramesInNetworkCnt()). This value is reset when end(), clear() or resetStatistics() is called.

◆ getLostPacketsInNetworkCnt()

uint32_t MeshNet::getLostPacketsInNetworkCnt ( ) const

inline

Gets count of lost packets created by current node for current network. This count does not include packets, that were lost outside of node, for example when response to packet (marked with ACK-R or system packet which need response) was not received until specified timeout (see getLostRemotePacketsCnt()). This value also includes lost data packets, not only system packets. This value does not include count of lost packets, that are not for current network. This value is reset when end(), clear() or resetStatistics() is called or node is disconnected.

◆ getLostPacketsTotalCnt()

uint32_t MeshNet::getLostPacketsTotalCnt ( ) const

inline

Gets total count of lost packets created by current node. This count does not include packet, that was lost outside of node, for example when response to packet (marked with ACK-R or system packet which need response) was not received until specified timeout (see getLostRemotePacketsCnt()). This value also includes lost data packets, not only system packets. This value also includes packets for current network (see getLostPacketsTotalCnt()). This value is reset when end(), clear() or resetStatistics() is called.

◆ getLostRelayiedPacketsCnt()

uint32_t MeshNet::getLostRelayiedPacketsCnt ( ) const

inline

Gets count of lost relayed packets in current node (packets, that were not created by current node). This value also includes data packets, not only system packets. This value is reset when end(), clear() or resetStatistics() is called.

◆ getLostRemoteDataPacketsCnt()

uint32_t MeshNet::getLostRemoteDataPacketsCnt ( ) const

inline

Gets total count of lost data packets outside of current node created by current node. This value includes only packet, that was lost outside of node and were marked as data packets, for example when response to packet marked with ACK-R was not received until specified timeout. To get total lost packets use this formula: getLostPacketsTotalCnt() + getLostRemotePacketsCnt(). This value is reset when end(), clear() or resetStatistics() is called.

◆ getLostRemotePacketsCnt()

uint32_t MeshNet::getLostRemotePacketsCnt ( ) const

inline

Gets total count of lost packets outside of current node created by current node. This value includes only packet, that was lost outside of node, for example when response to packet (marked with ACK-R or system packet which need response) was not received until specified timeout. To get total lost packets use this formula: getLostPacketsTotalCnt() + getLostRemotePacketsCnt(). This value also includes lost data packets, not only system packets. This value is reset when end(), clear() or resetStatistics() is called.

◆ getMaxChannel()

uint8_t MeshNet::getMaxChannel ( )

inline

Get maximum channel number, that can be set using setChannel() method.

◆ getMinChannel()

uint8_t MeshNet::getMinChannel ( )

inline

Get minimum channel number, that can be set using setChannel() method.

◆ getNeighborNode()

uint8_t MeshNet::getNeighborNode ( uint8_t address ) const

inline

Gets address of neighbor node, which is next node in path.

Parameters

address Destination address - address of node at the end of path.

Returns: Returns address of next node or UNKNOWN_MESH_ADDRESS (253) if no path exists.

◆ getNetworkBSSID()

MeshMAC MeshNet::getNetworkBSSID ( ) const

inline

Gets BSSID of network, the node is connected to.

Returns: Returns BSSID of network, the node is connected to or current node MAC when node is disconnected or node is gateway.

◆ getNewID()

uint8_t MeshNet::getNewID ( )

inlineprotected

Generates new ID for packet.

Returns: Returns generated ID.

◆ getNodeAddress()

uint8_t MeshNet::getNodeAddress ( ) const

inline

Gets address of current node. If node is not connected to any network, 253 is returned.

Parameters

Returns address of current node.

◆ getNodeMAC()

MeshMAC MeshNet::getNodeMAC ( ) const

inline

Gets current node unique MAC address.

Returns: Returns current node unique MAC address.

◆ getPacketStatus()

MeshPacketStatus MeshNet::getPacketStatus ( uint8_t ID ) const

Tries to check, where is packet, that was sent by it's ID.

Parameters

ID	ID of packet created by current node to check.

Returns: Returns in which buffer is packet located or if it was sent, but acknowledgment by destination node was not received yet.

◆ getRadioInterfacePtr()

RFInterface* MeshNet::getRadioInterfacePtr ( ) const

inline

Gets pointer to radio interface.

◆ getRelayiedPacketsCnt()

uint32_t MeshNet::getRelayiedPacketsCnt ( ) const

inline

Gets count of successfully relayed packets (packets, that were not created by current node). This value also includes data packets, not only system packets. This value is reset when end(), clear() or resetStatistics() is called.

◆ getSentDataPacketsCnt()

uint32_t MeshNet::getSentDataPacketsCnt ( ) const

inline

Gets count of successfully sent data packets created by current node for current network. This value also includes packets, that was lost outside of this node (see getLostRemoteDataPacketsCnt()). This value also includes only data packets. This value is reset when end(), clear() or resetStatistics() is called.

◆ getSentFramesInNetworkCnt()

uint32_t MeshNet::getSentFramesInNetworkCnt ( ) const

inline

Gets total count of successfully sent frames. Frame is successfully sent, when send was successful and frame was acknowledged when ACK was needed. This value is reset when end(), clear() or resetStatistics() is called or node is disconnected.

◆ getSentFramesTotalCnt()

uint32_t MeshNet::getSentFramesTotalCnt ( ) const

inline

Gets total count of successfully sent frames. Frame is successfully sent, when send was successful and frame was acknowledged when ACK was needed. This value also includes frames for current network (see getSentFramesInNetworkCnt()). This value is reset when end(), clear() or resetStatistics() is called.

◆ getSentPacketsInNetworkCnt()

uint32_t MeshNet::getSentPacketsInNetworkCnt ( ) const

inline

Gets count of successfully sent packets created by current node for current network. This value also includes packets, that was lost outside of this node (see getLostRemotePacketsCnt()). This value also includes sent data packets, not only system packets. This value is reset when end(), clear() or resetStatistics() is called or node is disconnected.

◆ getSentPacketsTotalCnt()

uint32_t MeshNet::getSentPacketsTotalCnt ( ) const

inline

Gets total count of successfully sent packets created by current node. This value also includes packets, that was lost outside of this node (see getLostRemotePacketsCnt()). This value also includes sent data packets, not only system packets. This value also includes packets for current network (see getSentPacketsInNetworkCnt()). This value is reset when end(), clear() or resetStatistics() is called.

◆ handle()

void MeshNet::handle ( )

virtual

This method has to be called in main program loop as often as possible.

Reimplemented in MeshNetGateway.

◆ handleReceivedInterrupt()

void MeshNet::handleReceivedInterrupt ( )

protected

◆ isBackupGateway()

bool MeshNet::isBackupGateway ( ) const

inline

Checks if node is backup gateway of network. Only main gateway can manage network. Other nodes, which are marked as gateway, but are connected to network are backup gateways. Those nodes acts as normal node, but when main gateway is lost, one of backup nodes will act as gateway.

◆ isConnected()

bool MeshNet::isConnected ( ) const

inline

Checks if node is connected to any network.

Returns: Returns true when node is connected to any network.

◆ isDisconnecting()

bool MeshNet::isDisconnecting ( ) const

inline

Checks if node is disconnecting right now. Node is finally disconnected after disconnect timeout or when no packet for that network is stored in some FIFO on current node.

◆ isForeignNetworkPacket()

bool MeshNet::isForeignNetworkPacket	(	const MeshPacket &	packet,
		MeshMAC	bssid
	)

staticprotected

Checks if packet is for current network (with specified BSSID in BSSID parameter) or not.

Parameters

[in]	packet	Packet to check.
	bssid	Network BSSID to check.

Returns: Returns true if packet is for foreign network.

◆ isMainGateway()

bool MeshNet::isMainGateway ( ) const

inline

Checks if node is main gateway of network. Only main gateway can manage network. Other nodes, which are marked as gateway, but are connected to network are backup gateways.

◆ netScanRunning()

bool MeshNet::netScanRunning ( ) const

inline

Checks if network scan is running.

◆ onBufferPacketLost()

void MeshNet::onBufferPacketLost	(	const MeshPacket &	packet,
		MeshPacketError	error
	)

protected

This method is called when some packet created by this node was lost, because some FIFO, where it has to be stored is full or it was removed from FIFO. This method does some clearing process (clears OIDT row of current packet if exists) and reports error if packet was created by current node.

Parameters

index	Index of row, where new path is located.
packet	Reference to packet, which will be lost.
error	Error code indicating, why packet was lost.

◆ onBufferPacketRemove()

void MeshNet::onBufferPacketRemove	(	const MeshPacket &	packet,
		bool	ignoreCurrentNetworkPacket,
		bool	packetLost
	)

protected

This method is called when any packet is removed from waitingFIFO or outFIFO.

Parameters

packet	Packet to be removed.
ignoreCurrentNetworkPacket	When true, currentNetworkPacket cannot be changed. This can be set
packetLost	True if packet was lost. to true only in special cases.

◆ onFrameReceive()

void MeshNet::onFrameReceive	(	MeshPacketBuilder *	builder,
		MeshPacketBuilderStatus	status,
		const MeshFrameHeader &	frameHeader,
		const uint8_t *	frameData,
		uint8_t	frameDataSize,
		int8_t	rssi
	)

protected

Method, which is called, when new valid frame is received. This method is used to calculate CTS time.

◆ onFrameReceiveStatic()

void MeshNet::onFrameReceiveStatic	(	MeshPacketBuilder *	builder,
		MeshPacketBuilderStatus	status,
		const MeshFrameHeader &	frameHeader,
		const uint8_t *	frameData,
		uint8_t	frameDataSize,
		int8_t	rssi
	)

staticprotected

Processed received messages.

Static function, which can be used as callback. In this function correct onFrameReceive() method is called.

◆ onNewPath()

void MeshNet::onNewPath	(	int16_t	index,
		const MeshRouteTableRow &	row
	)

protected

This method is called when new path was found (created). It is not called if path is prolonged.

Parameters

index	Index of row, where new path is located.
row	Row, which contains path informations from route table.

◆ onNewPathStatic()

void MeshNet::onNewPathStatic	(	MeshRouteTable< ROUTETABLE_SIZE > *	table,
		int16_t	index,
		const MeshRouteTableRow &	row,
		uint8_t	rawLifeTime
	)

staticprotected

Static function, which can be used as callback. In this function correct onNewPath() method is called.

◆ onNodeLost()

void MeshNet::onNodeLost	(	uint8_t	address,
		bool	nodeLostForever
	)

protectedvirtual

This method is called, when some node is disconnected from network or does not responds to sent packet.

Parameters

address	Address of lost node.
nodeLostForever	True when node was lost forever. This has to be set to true if node was disconnected from network.

Reimplemented in MeshNetGateway.

◆ onOIDTRemove()

void MeshNet::onOIDTRemove	(	int16_t	index,
		const MeshOIDTableRow &	oldRow,
		uint8_t	oldRawLifeTime,
		MeshOIDTableRemoveReason	reason
	)

protectedvirtual

This method is called when any row from OID table is removed.

Parameters

index	Index of removed row.
oldRow	Old row.
oldRawLifeTime	Old raw life time of row.
reason	Remove reason.

◆ onOIDTRemoveStatic()

void MeshNet::onOIDTRemoveStatic	(	MeshOIDTable< OIDTABLE_SIZE > *	table,
		int16_t	index,
		const MeshOIDTableRow &	oldRow,
		uint8_t	oldRawLifeTime,
		MeshOIDTableRemoveReason	reason
	)

staticprotected

Static function, which can be used as callback. In this function correct onOIDTRemove() method is called.

◆ onPacketError()

void MeshNet::onPacketError	(	MeshPacketError	error,
		uint8_t	packetID,
		uint8_t	packetDest,
		SystemPacketType	packetType,
		const MeshPacket *	packet_ptr
	)

protectedvirtual

This method is called when some error happened to any packet created by current node.

Parameters

error	Type of error that happened.
packetID	ID of packet.
packetDest	Destination address of packet.
packetType	Type of packet.
packet_ptr	Pointer to packet, this may be NULL.

Reimplemented in MeshNetGateway.

◆ onSystemDisconnect()

void MeshNet::onSystemDisconnect ( MeshDisconnectReason reason )

protected

Do necessary work after node was disconnected or connection was aborted. onDisconnected method is called here.

Parameters

reason Disconnect reason.

◆ onSystemPingReceived()

void MeshNet::onSystemPingReceived	(	bool	valid,
		uint32_t	duration
	)

protected

This method is called when system ping packet response was received.

Parameters

valid	True if ping response was valid.
duration	Ping duration in milliseconds.

◆ packetSplitting()

bool MeshNet::packetSplitting ( )

inlineprotected

Checks if some packet is loaded in packet splitter.

◆ PacketToFrame()

bool MeshNet::PacketToFrame	(	const MeshPacket &	packet,
		MeshMAC	bssid,
		uint8_t *	outBuffer,
		uint8_t &	bufferSize
	)		const

protected

Converts packet to frame. This can be called only if you are sure, that this packet won't be splitted to multiple frames, but will be converted to only one frame. Routed packets (ROE == 1 && RE == 1) cannot be converted.

Parameters

[in]	packet	ACK packet, that has to be splitted. This condition has to be valid: ackPackets.Length() <= 11.
	bssid	BSSID of packet sender.
[out]	data	Buffer reserved for frame data. Size of this buffer has to be at least 24 bytes.
[out]	dataSize	The size of data copied to data buffer.

Returns: True packet was successfully converted to frame. False if packet have error or is Routed packet (ROE == 1 && RE == 1) or packet length exceeded.

◆ packetTransmitting()

bool MeshNet::packetTransmitting ( )

inlineprotected

Checks if some frame of currently splitting packet has been already transmitted.

◆ pathCreating()

bool MeshNet::pathCreating ( uint8_t address ) const

inline

Checks if path to specified node is creating right now.

Parameters

address Address of node, to which path has to be checked.

Returns: Returns true if path to specified node is creating right now.

◆ pathExists()

bool MeshNet::pathExists ( uint8_t address ) const

inline

Checks if path to specified node exists.

Parameters

address Address of node, to which path has to be checked.

Returns: Returns true if path to specified node exists.

◆ ping()

int16_t MeshNet::ping	(	uint8_t	addr,
		uint32_t	timeout,
		int16_t	testDataLength = `0`
	)

Sends ping packet to node with specified address. When ping response is received, callback function set using setOnPingResponseCallback() is called. This is also called, when ping timed out.

Parameters

addr	Address of node, the ping packet is for.
timeout	Ping timeout value in milliseconds. Minimum value, that can be set is 1 second (1000ms). Error of timeout is +0ms, -500ms.
testDataLength	Length of test data sent with ping packet. Those data are randomly generated. Allowed values: 0-500.

Returns

ID of ping packet is returned, or: Returns:

ID of ping packet when ping was successfully sent.
MPE_Full_outFIFO when outFIFO is full and packet cannot be pushed.
MPE_Full_waitingFIFO when outFIFO is full and packet cannot be pushed.
MPE_Invalid when address is invalid.
MPE_NoRoute when route creation to destination has failed.
MPE_NoNetwork when node is not connected to any network.
MPE_GenErr when node is pinged itself.
MPE_AllocErr when ping packet cannot be constructed.

◆ printFIDTable()

bool MeshNet::printFIDTable ( OSTREAM * stream ) const

Prints FID Table in pretty format to stream.

Parameters

stream Output stream where to print.

Returns: Returns true if stream was not NULL.

◆ printIDTable()

bool MeshNet::printIDTable ( OSTREAM * stream ) const

Prints ID Table in pretty format to stream.

Parameters

stream Output stream where to print.

Returns: Returns true if stream was not NULL.

◆ printMeshConnectionState()

size_t MeshNet::printMeshConnectionState	(	OSTREAM &	stream,
		MeshConnectionState	value
	)

static

Prints MeshConnectionState to stream.

Parameters

stream	Where to print.
value	Value to print.

Returns: Returns count of printed characters.

◆ printMeshDisconnectReason()

size_t MeshNet::printMeshDisconnectReason	(	OSTREAM &	stream,
		MeshDisconnectReason	value
	)

static

Prints MeshDisconnectReason to stream.

Parameters

stream	Where to print.
value	Value to print.

Returns: Returns count of printed characters.

◆ printMeshNetworkInfo()

size_t MeshNet::printMeshNetworkInfo ( OSTREAM & stream ) const

Prints informations about network, node is connected to.

Parameters

stream Stream where to print.

Returns: Returns count of printed characters.

◆ printMeshPacketError()

size_t MeshNet::printMeshPacketError	(	OSTREAM &	stream,
		MeshPacketError	value
	)

static

Prints MeshPacketError to stream.

Parameters

stream	Where to print.
value	Value to print.

Returns: Returns count of printed characters.

◆ printOIDTable()

bool MeshNet::printOIDTable ( OSTREAM * stream ) const

Prints OID Table in pretty format to stream.

Parameters

stream Output stream where to print.

Returns: Returns true if stream was not NULL.

◆ printOutFIFO()

bool MeshNet::printOutFIFO ( OSTREAM * stream ) const

Prints output FIFO buffer in pretty format to stream.

Parameters

stream Output stream where to print.

Returns: Returns true if stream was not NULL.

◆ printRTable()

bool MeshNet::printRTable ( OSTREAM * stream ) const

Prints Route Table in pretty format to stream.

Parameters

stream Output stream where to print.

Returns: Returns true if stream was not NULL.

◆ printStatistics()

size_t MeshNet::printStatistics ( OSTREAM & stream ) const

Prints statistics informations.

Parameters

stream Stream where to print.

Returns: Returns count of printed characters.

◆ printWaitingFIFO()

bool MeshNet::printWaitingFIFO ( OSTREAM * stream ) const

Prints waiting FIFO buffer in pretty format to stream.

Parameters

stream Output stream where to print.

Returns: Returns true if stream was not NULL.

◆ processPacket()

void MeshNet::processPacket	(	MeshPacket &	packet,
		MeshMAC	BSSID
	)

protectedvirtual

Processes received packet. Called in processReceived() method.

Parameters

packet	Reference to received packet.
BSSID	BSSID of network, which sent packet.

Reimplemented in MeshNetGateway.

◆ processReceived()

void MeshNet::processReceived ( )

protected

Processes received frames.

◆ processTransmit()

void MeshNet::processTransmit ( )

protected

Processes transmission of one frame from output FIFO.

◆ pushOutPacket()

MeshPacketError MeshNet::pushOutPacket	(	MeshPacket &	packet,
		uint32_t	timeout = `0`
	)

protected

Pushes packet to output FIFO buffer.

Autofill fields

Those fields should not be set before calling this method, because they are set in this method.

ID field is automatically set in this method, so it shouldn't be set before calling this method. ID is generated using getNewID() method. If packet cannot be pushed, new packet ID won't be generated. ID is also not generated, if packet is relaying and current node is not source node (source != from). To get ID of created (not relayed) packet, use getLastID() method.
To field is automatically set in this method, so it shouldn't be set before calling this method. Route table is used to fill this field. If path to destination address cannot be found, packet is stored in waitingFIFO and createPath method is called.

FIFO selection

This methods makes decision, where packet will be pushed. If path to packet destination can be found or is not needed, packet is pushed to the outFIFO, where it waits until it will be sent. If path to packet destination cannot be found, packet is pushed to the waitingFIFO, where packet will wait until path is created. If path is successfully created, all related packets from waitingFIFO will be moved to the outFIFO.

Warning: After calling this method and method returns true, packet will be cleared, else packet stays unchanged.

Parameters

packet Packet to push.

timeout Packet timeout in milliseconds. Value resolution is 500ms, that's why timeout error is (+0ms, -500ms) and that's why it is recommended to set at least 1 second. Maximum value is 127500 milliseconds, which is more than 2 minutes. If 0 is set, packet is not set to OIDTable. After this timeout packet is removed from OIDTable and from waiting or output FIFO buffer. Timeout is ignored (timeout = 0) if packet was not created, but only relayed.

Returns

Returns:

MPE_OK when packet was successfully pushed.
MPE_Full_outFIFO when outFIFO is full and packet cannot be pushed.
MPE_Full_waitingFIFO when outFIFO is full and packet cannot be pushed.
MPE_Invalid when packet is invalid or has zero length payload.
MPE_NoRoute when route creation to destination has failed.
MPE_NoNetwork when packet with RE == 1 was tried to push, but node is not connected to any network.

◆ removeThisFromInstArr()

void MeshNet::removeThisFromInstArr ( )

private

Removes this instance from instances array. This method has to be called in destructor.

◆ resetStatistics()

void MeshNet::resetStatistics ( )

Resets statistics data.

◆ restartCurrentPacketTransmission() [1/2]

void MeshNet::restartCurrentPacketTransmission ( )

inlineprotected

Restarts transmission of current packet. Splitting is restarted.

◆ restartCurrentPacketTransmission() [2/2]

void MeshNet::restartCurrentPacketTransmission ( uint8_t maxFrameSize )

inlineprotected

Restarts transmission of current packet. Splitting is restarted.

Parameters

maxFrameSize New max frame size for packet splitter.

◆ routeTableUpdate()

void MeshNet::routeTableUpdate	(	const MeshPacketHeader &	header,
		MeshMAC	BSSID,
		int8_t	rssi
	)

protectedvirtual

Updates route table when valid packet from node with same network is received.ň

Parameters

header	Header of received packet.
BSSID	BSSID of received packet.
rssi	RSSI of first packet frame.

Note: This is called in checkPacket() method.

Reimplemented in MeshNetGateway.

◆ send() [1/3]

int16_t MeshNet::send	(	uint8_t	addr,
		const MeshVariableArray< uint8_t > &	data
	)

Sends data packet to specified node.

Note: It is recommended to check availablePacketsToSend() method before calling send method. If availablePacketsToSend() returns more than 1, send method can be used.

Parameters

	addr	Address of node, where to send message.
[in]	data	Data, that will be sent. To achieve better performance, use std::move.

Returns

Returns ID of sent packet, it can be used to track packet or -1 when packet was not sent. Returns:

ID of sent packet on success.
MPE_Full_outFIFO when outFIFO is full and packet cannot be pushed.
MPE_Full_waitingFIFO when outFIFO is full and packet cannot be pushed.
MPE_Invalid when address or payload size is invalid.
MPE_NoRoute when route creation to destination has failed.
MPE_NoNetwork when node is not connected to any network.
MPE_AllocErr when packet cannot be constructed.

Note: Packet can be sent only if current node is connected to any network or is main gateway node.

◆ send() [2/3]

int16_t MeshNet::send	(	uint8_t	addr,
		const uint8_t *	data,
		uint16_t	dataSize
	)

Sends data packet to specified node.

Note: It is recommended to check availablePacketsToSend() method before calling send method. If availablePacketsToSend() returns more than 1, send method can be used.

Parameters

addr	Address of node, where to send message.
data	Data, that will be sent.
dataSize	Size of data to be sent in bytes.

Returns

Returns ID of sent packet, it can be used to track packet or -1 when packet was not sent. Returns:

ID of sent packet on success.
MPE_Full_outFIFO when outFIFO is full and packet cannot be pushed.
MPE_Full_waitingFIFO when outFIFO is full and packet cannot be pushed.
MPE_Invalid when address or payload size is invalid.
MPE_NoRoute when route creation to destination has failed.
MPE_NoNetwork when node is not connected to any network.
MPE_AllocErr when packet cannot be constructed.

Note: Packet can be sent only if current node is connected to any network or is main gateway node.

◆ send() [3/3]

int16_t MeshNet::send	(	uint8_t	addr,
		MeshVariableArray< uint8_t > &&	data
	)

Sends data packet to specified node.

Note: It is recommended to check availablePacketsToSend() method before calling send method. If availablePacketsToSend() returns more than 1, send method can be used.

Parameters

	addr	Address of node, where to send message.
[in]	data	Data, that will be sent. Those data will be cleared when send was successful, because std::move is used, which has incredible performance compared to copying data.

Returns

Returns ID of sent packet, it can be used to track packet or -1 when packet was not sent. Returns:

ID of sent packet on success.
MPE_Full_outFIFO when outFIFO is full and packet cannot be pushed.
MPE_Full_waitingFIFO when outFIFO is full and packet cannot be pushed.
MPE_Invalid when address or payload size is invalid.
MPE_NoRoute when route creation to destination has failed.
MPE_NoNetwork when node is not connected to any network.
MPE_AllocErr when packet cannot be constructed.

Note: Packet can be sent only if current node is connected to any network or is main gateway node.

◆ sendACK()

bool MeshNet::sendACK	(	const MeshACKSetup &	setup,
		bool	asDisconnected = `false`,
		bool	asConnectedToOld = `false`
	)

protected

Sends ACK to last received frame. This has to be done when builder returns status MPB_FullPacketOK or MPB_PartPacketOK.

Parameters

setup	Structure, which has data needed for ACK packet creation.
asDisconnected	Send packet as disconnected node (BSSID = NodeMAC and Source == 253)
asConnectedToOld	Send packet as connected to old network (BSSID = oldBSSID and Source == oldNodeAddress)

Returns: Returns true when ACK was sent or don't need to be sent.

◆ sendDisconnectPacket()

bool MeshNet::sendDisconnectPacket ( MeshNetDisconnectPacketType type )

protected

Immediately sends disconnect packet (without pushing to outFIFO), that says current node is disconnecting. OnSystemDisconnect() method is not called here.

Parameters

type	Disconnect type.

Returns: Returns true if disconnect packet was successfully sent.

◆ sendERR_ACK()

bool MeshNet::sendERR_ACK	(	const MeshACKSetup &	setup,
		ERR_ACK_ErrorCode	ErrorCode,
		uint8_t	RepairValue,
		bool	asDisconnected = `false`,
		bool	asConnectedToOld = `false`
	)

protected

Sends ERROR ACK to last received frame. This has to be done when some error happened to last received frame.

Parameters

setup	Structure, which has data needed for ACK packet creation.
ErrorCode	Error code.
RepairValue	Value, which can be used for repairing this error.
asDisconnected	Send packet as disconnected node (BSSID = NodeMAC and Source == 253)
asConnectedToOld	Send packet as connected to old network (BSSID = oldBSSID and Source == oldNodeAddress)

Returns: Returns true when ACK was sent or don't need to be sent.

◆ SendPacketAsFrame()

bool MeshNet::SendPacketAsFrame	(	MeshPacket &	packet,
		MeshMAC	bssid
	)

protected

Sends packet, which is converted using method PacketToFrame() to frame, which is then sends. Packet is cleared after sending. Only packets, that won't be splitted to multiple frames will be sent, else false is returned. Packet ID is automatically generated here, same as using pushOutPacket() method, also From field is filled by current node address if needed.

Note: This packet cannot be acknowledged.

Parameters

packet[in]	Packet to send. Packet is never cleared.
bssid	BSSID of current network.

Returns: Returns true if packet was sent without error.

◆ setAutoConnect()

void MeshNet::setAutoConnect	(	MeshMAC	netBSSID,
		uint32_t	retryInterval = `60000`
	)

Enables auto connect to specified network. If auto connect is enabled and node is not connected to any network, it tries to connect to network, which BSSID is specified in parameter. If network is not found, connection is retried after time specified in retryInterval parameter.

Auto connection is disabled when:

node is disconnected from that network using disconnect() method,
node is disconnected, because disconnect request was received,
node connection is refused,
end() method is called,
disableAutoConnect() is called.

Parameters

netBSSID	BSSID of network, the node has to connect to.
retryInterval	Auto connect retry interval in milliseconds. Minimum value is 10000ms.

◆ setChannel()

bool MeshNet::setChannel ( uint8_t channel_ )

Sets network channel.

Parameters

channel_	Channel to set. This value has to be between or same as getMinChannel() and getMaxChannel() values.
return	Return true if channel was set.

◆ setOnConnectedCallback()

void MeshNet::setOnConnectedCallback ( void(*)(MeshNet *) callback )

inline

Sets callback function, which is called when current node is connected to network.

Parameters

callback Callback function.

◆ setOnDisconnectedCallback()

void MeshNet::setOnDisconnectedCallback ( void(*)(MeshNet *, MeshDisconnectReason, MeshMAC, uint8_t) callback )

inline

Sets callback function, which is called when current node is disconnected from network or when connection to network was aborted.

Parameters

callback Callback function.

Parameters

MeshNet - Pointer to MeshNet.
MeshDisconnectReason - Disconnect reason
MeshMAC - Old network BSSID. Invalid if node was not connected yet.
uint8_t - Old node address. Set to UNKNOWN_MESH_ADDRESS if node was not connected yet.

◆ setOnPacketErrorCallback()

void MeshNet::setOnPacketErrorCallback ( void(*)(MeshNet *, MeshPacketError, uint8_t, uint8_t, const MeshPacket *) callback )

inline

Sets callback function, which is called when packet timeout happened and packet is removed.

Parameters

callback Callback function.

Parameters

MeshNet - Pointer to MeshNet.
MeshPacketError - Mesh packet error type.
uint8_t - ID of packet, which timed out.
uint8_t - Address of destination node, which has to receive node. If node is not specified, UNKNOWN_MESH_ADDRESS is set.
MeshPacket - Pointer to packet, which timed out. If packet does not exists, NULL is returned.

◆ setOnPingResponseCallback()

void MeshNet::setOnPingResponseCallback ( void(*)(MeshNet *, uint8_t, uint8_t, MeshPacketError, uint8_t, uint32_t, const uint8_t *, int16_t) callback )

inline

Sets callback function, which is called when ping response is received, or when ping timed out.

Parameters

callback Callback function.

Parameters

MeshNet - Pointer to MeshNet.
uint8_t - ID of ping packet.
uint8_t - Address of node, which has been pinged.
MeshPacketError - Error which happened to ping packet.
uint8_t - Response packet hops.
uint32_t - Duration in milliseconds
const uint8_t - Pointer to test data. This can be NULL.
int16_t - Size of test data in bytes.

◆ setOnReceive()

void MeshNet::setOnReceive ( void(*)(MeshNet *, MeshPacket &) callback )

inline

Sets callback function, which is called when data packet is received.

Parameters

callback Callback function.

Parameters

MeshNet - Pointer to MeshNet.
MeshPacket - Reference to received packet. This packet is not marked with const, to make possible to use std::move on this packet.

◆ setOnRemoteNodeDisconnectedCallback()

void MeshNet::setOnRemoteNodeDisconnectedCallback ( void(*)(MeshNet *, uint8_t) callback )

inline

This method is called when some node (not current node) is disconnected from network.

Parameters

MeshNet - Pointer to MeshNet.
uint8_t - Address of disconnected node.

◆ startNetScan() [1/2]

bool MeshNet::startNetScan	(	void()(MeshNet , const MeshNetScanResult &)	responseCallback,
		uint32_t	timeout,
		MeshNetScanFlags	flags,
		MeshMAC	ResponderBSSID = `0`
	)

Starts asynchronous network scanning. This function cannot be called when scan is actually running.

Parameters

responseCallback	Function, that is called when some node responded to scan request.
timeout	Timeout in milliseconds. After this time, all scan responses are ignored. Min: 500ms, max: 10000ms, recommended: 2000ms.
flags	Scan request flags.
ResponderBSSID	This parameter is optional and when is specified, only nodes connected to network same as ResponserBSSID can respond.

Returns: Returns true when network scan has started.

◆ startNetScan() [2/2]

bool MeshNet::startNetScan	(	void()(MeshNet , const MeshNetScanResult &)	responseCallback,
		uint32_t	timeout = `2000`
	)

Starts asynchronous network scanning. This function cannot be called when scan is actually running.

Parameters

responseCallback	Function, that is called when some node responded to scan request.
timeout	Timeout in milliseconds. After this time, all scan responses are ignored. Min: 500ms, max: 10000ms, recommended: 2000ms.

Returns: Returns true when network scan has started.

◆ systemNetworkScan()

bool MeshNet::systemNetworkScan	(	MeshMAC	responderBSSID,
		MeshNetScanFlags	flags
	)

protected

Perform network scan invoked by system before connecting to any network. This can be done only when no other scan is running right now and only if node is disconnected.

Parameters

responderBSSID	BSSID of network, which nodes has to respond to scan request.
flags	Scan flags.

Returns: Returns true when system scan was started.

◆ systemPing()

bool MeshNet::systemPing	(	uint8_t	addr,
		uint32_t	timeout
	)

protected

Sends ping packet to node with specified address. When ping response is received, onSystemPingReceived() is called. This is also called, when ping timed out. This can be called only once.

Parameters

addr	Address of node, the ping packet is for.
timeout	Ping timeout value in milliseconds. Minimum value, that can be set is 1 second (1000ms). Error of timeout is +0ms, -500ms.
testDataLength	Length of test data sent with ping packet. Those data are randomly generated. Allowed values: 0-500.

Returns: True if ping was started, false if error happened. If node pings itself, true is returned.

Field Documentation

◆ AddrPriv

uint8_t MeshNet::AddrPriv = UNKNOWN_MESH_ADDRESS

protected

Address of current node. Can be between 0 - 250 or 254 when disconnected.

◆ AddrReservationTime

uint16_t MeshNet::AddrReservationTime = 0

protected

Time in minutes the address can be reserved for in DHCP table in main gateway. This value is obtained during connection and it cannot change when connected to network.

◆ AddrReservedUntil

uint32_t MeshNet::AddrReservedUntil = 0

protected

Time in milliseconds until which address of current node is for sure reserved in main gateway node's DHCP table. Address reservation in DHCP table is prolonged, when gateway receives any packet from current node.

◆ autoConnectBSSID

MeshMAC MeshNet::autoConnectBSSID

protected

BSSID of network, this node has to automatically connect to.

◆ autoConnectInterval

uint32_t MeshNet::autoConnectInterval = 0

protected

Auto connect interval in milliseconds.

◆ beginCalled

bool MeshNet::beginCalled

protected

True if begin was called.

◆ canBeGateway_

const bool MeshNet::canBeGateway_

protected

True if current node can be used as gateway.

◆ channel

uint8_t MeshNet::channel

protected

Channel number, that will be set or is set.

◆ connectionState

MeshConnectionState MeshNet::connectionState = MeshConnectionState::MeshDisconnected

protected

Connection state of current node.

◆ connectionStepTime

uint32_t MeshNet::connectionStepTime = 0

protected

Time in milliseconds, when connection state was last changed.

◆ CTS_until

uint64_t MeshNet::CTS_until = 0

protected

Clear to send until this time in microseconds, so node cannot send frames until this time. ACK packets have exception from this rule.

◆ currentNetworkPackets

uint8_t MeshNet::currentNetworkPackets = 0

protected

Count of packets in buffers, that belongs to the current connected network.

◆ disconnectUntil

uint32_t MeshNet::disconnectUntil = 0

protected

Until this time in milliseconds node has to be disconnected.

◆ FIDTable

MeshFIDTable<FIDTABLE_SIZE> MeshNet::FIDTable

protected

@breif Table of received packets ID (ID+Source+BSSID) from foreign networks. This check, if some packet has been received multiple times.

◆ frameTranCnt

uint8_t MeshNet::frameTranCnt = 0

protected

(Re)Transmission count of last sent frame.

◆ IDTable

MeshIDTable<IDTABLE_SIZE> MeshNet::IDTable

protected

Table of received packets ID (ID+Source). This check, if some packet has been received multiple times.

◆ ignoreRSSIThreshold

bool MeshNet::ignoreRSSIThreshold

protected

True to ignore RSSI threshold on received network scan responses during scan.

◆ instances

MeshNet * MeshNet::instances = { 0 }

staticprivate

Array of all created MeshNet instances. Thanks to this array callback functions of MicroTable, PacketSplitter and PacketBuilder classes can be set. If this array is full. New created instances will not work correctly.

◆ instCount

uint8_t MeshNet::instCount = 0

staticprivate

Count of created instances of this class.

◆ lastDisconnectReason

MeshDisconnectReason MeshNet::lastDisconnectReason = MeshDisconnectReason::MDR_None

protected

Last disconnect or connection fail reason.

◆ lastReceiveTime

uint64_t MeshNet::lastReceiveTime = 0

protected

Time when last frame was received in microseconds.

◆ lastScanResponderBSSID

MeshMAC MeshNet::lastScanResponderBSSID

protected

BSSID of network, the system network scan was assigned to.

◆ lastScanTime

uint32_t MeshNet::lastScanTime = 0

protected

Time in milliseconds, when network scan was last time executed.

◆ lastSentTime

uint32_t MeshNet::lastSentTime = 0

protected

Time, when was last frame sent in milliseconds.

◆ lostDataPackets

uint32_t MeshNet::lostDataPackets = 0

protected

◆ lostFramesInNetwork

uint32_t MeshNet::lostFramesInNetwork = 0

protected

◆ lostFramesTotal

uint32_t MeshNet::lostFramesTotal = 0

protected

◆ lostPacketsInNetwork

uint32_t MeshNet::lostPacketsInNetwork = 0

protected

◆ lostPacketsTotal

uint32_t MeshNet::lostPacketsTotal = 0

protected

◆ lostRelayiedPackets

uint32_t MeshNet::lostRelayiedPackets = 0

protected

◆ lostRemoteDataPackets

uint32_t MeshNet::lostRemoteDataPackets = 0

protected

◆ lostRemotePackets

uint32_t MeshNet::lostRemotePackets = 0

protected

◆ lowestHopsToGateway

uint8_t MeshNet::lowestHopsToGateway = 255

protected

The smallest count of hops to gateway established during last system network scan.

◆ lowestHopsToGateway_Addr

uint8_t MeshNet::lowestHopsToGateway_Addr = INVALID_MESH_ADDRESS

protected

Address of node with the smallest count of hops to gateway established during last system network scan.

◆ msgIDPriv

uint8_t MeshNet::msgIDPriv = 0xFF

private

Last value of packet ID.

◆ netScanResponseCallback

void(* MeshNet::netScanResponseCallback) (MeshNet *, const MeshNetScanResult &)

protected

Pointer to callback function called when network scan response was received.

◆ NetworkBSSID

MeshMAC MeshNet::NetworkBSSID

protected

If node is disconnected, this is same as NodeMAC, else NetworkBSSID equals BSSID address of connected network.

◆ nextAutoConnectTime

uint32_t MeshNet::nextAutoConnectTime = 0

protected

Time in milliseconds, when auto connection attempt will be invoked.

◆ NodeMAC

MeshMAC MeshNet::NodeMAC

protected

Unique node physical MeshMAC address.

◆ OIDTable

MeshOIDTable<OIDTABLE_SIZE> MeshNet::OIDTable

protected

Table of sent (output) packets ID and destination (source is current node address). Only packet, that was created by current node can be stored here, relayed packet cannot be stored here. This table is for checking, what action was done and what packet is expected (response or ACK-R response).

◆ oldBSSID

MeshMAC MeshNet::oldBSSID

protected

Old BSSID of network the node was connected to last time.

◆ oldNodeAddress

uint8_t MeshNet::oldNodeAddress = UNKNOWN_MESH_ADDRESS

protected

Old node address, that was assigned to node when it has been connected to some network.

◆ onConnected

void(* MeshNet::onConnected) (MeshNet *)

protected

This method is called when node is connected to network.

◆ onDisconnected

void(* MeshNet::onDisconnected) (MeshNet *, MeshDisconnectReason, MeshMAC, uint8_t)

protected

This method is called when node is disconnected from network.

Parameters

MeshNet - Pointer to MeshNet.
MeshDisconnectReason - Disconnect reason
MeshMAC - Old network BSSID. Invalid if node was not connected yet.
uint8_t - Old node address. Set to UNKNOWN_MESH_ADDRESS if node was not connected yet.

◆ onPacketErrorCallback

void(* MeshNet::onPacketErrorCallback) (MeshNet *, MeshPacketError, uint8_t, uint8_t, const MeshPacket *)

protected

Parameters

MeshNet - Pointer to MeshNet
MeshPacketError - Error type
uint8_t - ID of packet, with error.
uint8_t - Address of destination node, which has to receive node. If node is not specified, UNKNOWN_MESH_ADDRESS is set.
MeshPacket - Pointer to packet, with error. If packet does not exists, NULL is returned.

◆ onPingResponse

void(* MeshNet::onPingResponse) (MeshNet *, uint8_t, uint8_t, MeshPacketError, uint8_t, uint32_t, const uint8_t *, int16_t)

protected

Function called when ping response is received or when ping timed out.

Parameters

MeshNet - Pointer to MeshNet.
uint8_t - ID of ping packet.
uint8_t - Address of node, which has been pinged.
MeshPacketError - Error which happened to ping packet.
uint8_t - Response packet hops.
uint32_t - Duration in milliseconds
const uint8_t - Pointer to test data. This can be NULL.
int16_t - Size of test data in bytes.

◆ onReceive

void(* MeshNet::onReceive) (MeshNet *, MeshPacket &)

protected

Function called when data packet is received.

Parameters

MeshNet - Pointer to MeshNet.
MeshPacket - Received packet

◆ onRemDisconnected

void(* MeshNet::onRemDisconnected) (MeshNet *, uint8_t)

protected

This method is called when some node from network is disconnected.

Parameters

MeshNet - Pointer to MeshNet.
uint8_t - Address of disconnected node.

◆ outFIFO

MeshPacketPriorityFIFO<MESH_OFIFO_HIGH_SIZE, MESH_OFIFO_LOW_SIZE> MeshNet::outFIFO

protected

Packets that waits in buffer to be sent.

◆ packetBuilder

MeshPacketBuilder MeshNet::packetBuilder

protected

Combines received MeshFrames to MeshPacket.

◆ packetSplitter

MeshPacketSplitter MeshNet::packetSplitter

protected

Splits MeshPacket to multiple MeshFrames for transmission.

◆ packetSplittingStarted

bool MeshNet::packetSplittingStarted

protected

True if packet splitting has started.

◆ receiveInterruptEnabled

bool MeshNet::receiveInterruptEnabled

protected

True if interrupt will be fired when new frame is received.

◆ relayiedPackets

uint32_t MeshNet::relayiedPackets = 0

protected

◆ rf

RFInterface* MeshNet::rf

protected

Pointer to radio interface, that is used by current class.

◆ RTable

MeshRouteTable<ROUTETABLE_SIZE> MeshNet::RTable

protected

Routing table.

◆ scanEndTime

uint32_t MeshNet::scanEndTime = 0

protected

Time in milliseconds, when network scan ends.

◆ sendingPacketIsForeign

bool MeshNet::sendingPacketIsForeign

protected

True if packet, that is loaded in packetSplitter is for foreign network.

◆ sentDataPackets

uint32_t MeshNet::sentDataPackets = 0

protected

◆ sentFramesInNetwork

uint32_t MeshNet::sentFramesInNetwork = 0

protected

◆ sentFramesTotal

uint32_t MeshNet::sentFramesTotal = 0

protected

◆ sentFrameWasACK

bool MeshNet::sentFrameWasACK

protected

True when sent frame was acknowledged.

◆ sentPacketsInNetwork

uint32_t MeshNet::sentPacketsInNetwork = 0

protected

◆ sentPacketsTotal

uint32_t MeshNet::sentPacketsTotal = 0

protected

◆ SSID

char MeshNet::SSID[65]

protected

SSID of network, node is connected to.

◆ systemPingID

int16_t MeshNet::systemPingID = -1

protected

ID of last system ping packet.

◆ Version

const MeshVersion MeshNet::Version = MESHNET_VERSION

static

Version of MeshNet protocol.

◆ waitingBufferCheck

bool MeshNet::waitingBufferCheck

protected

True if waitBuffer has to be checked and some packets has to be sent.

◆ waitingFIFO

MeshPacketFIFO<MESH_WFIFO_SIZE> MeshNet::waitingFIFO

protected

Packets, that has to be sent as routed packet, but path is not known yet.

The documentation for this class was generated from the following files:

Mesh/Inc/mesh.h
Mesh/Src/mesh.cpp

netBSSID	BSSID of network to connect to.
interpreterAddr	Address of interpreter node.

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ MeshNet() [1/2]

◆ ~MeshNet()

◆ MeshNet() [2/2]

Member Function Documentation

◆ abortCurrentPacketTransmission()

◆ addThisToInstArr()

◆ availablePacketsToSend()

◆ begin() [1/2]

◆ begin() [2/2]

◆ canBeGateway()

◆ checkPacket()

◆ checkPacketStatic()

◆ checkWaitingBuffer()

◆ clear()

◆ connect()

Connection steps:

◆ createPath()

◆ directConnect()

Connection steps:

◆ disableAutoConnect()

◆ disconnect()

Disconnection steps

◆ disconnectPriv()

Disconnection steps

◆ end()

◆ getConnectionState()

◆ getInstances()

◆ getLastID()

◆ getLostDataPacketsCnt()

◆ getLostFramesInNetworkCnt()

◆ getLostFramesTotalCnt()

◆ getLostPacketsInNetworkCnt()

◆ getLostPacketsTotalCnt()

◆ getLostRelayiedPacketsCnt()

◆ getLostRemoteDataPacketsCnt()

◆ getLostRemotePacketsCnt()

◆ getMaxChannel()

◆ getMinChannel()

◆ getNeighborNode()

◆ getNetworkBSSID()

◆ getNewID()

◆ getNodeAddress()

◆ getNodeMAC()

◆ getPacketStatus()

◆ getRadioInterfacePtr()

◆ getRelayiedPacketsCnt()

◆ getSentDataPacketsCnt()

◆ getSentFramesInNetworkCnt()

◆ getSentFramesTotalCnt()

◆ getSentPacketsInNetworkCnt()

◆ getSentPacketsTotalCnt()

◆ handle()

◆ handleReceivedInterrupt()

◆ isBackupGateway()

◆ isConnected()

◆ isDisconnecting()

◆ isForeignNetworkPacket()

◆ isMainGateway()

◆ netScanRunning()

◆ onBufferPacketLost()

◆ onBufferPacketRemove()

◆ onFrameReceive()

◆ onFrameReceiveStatic()

◆ onNewPath()

◆ onNewPathStatic()

◆ onNodeLost()

◆ onOIDTRemove()

◆ onOIDTRemoveStatic()

◆ onPacketError()
