MeshNetScanResult Struct Reference

Structure, which holds network scan result. More...

#include <meshPacketFlags.h>

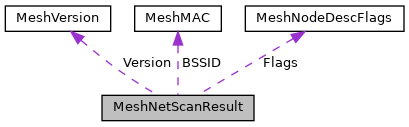

Collaboration diagram for MeshNetScanResult:

Public Member Functions
bool	IsValid () const
	Checks if result is valid. More...
bool	IsGateway () const
	Checks if node which responsed is gateway. More...
bool	IsConneted () const
	Checks if node which responsed is connected to any network. More...

Data Fields
MeshMAC	BSSID
	BSSID of network, the node which responsed is connected to. If node is not connected to any network (Address == 253) BSSID is MAC address of node. More...
uint8_t	Address = 0
	Address of node. More...
MeshVersion	Version
	MeshNet version, the node is using. More...
MeshNodeDescFlags	Flags
	Mesh node description flags, which describes every node. More...
uint8_t	HopsToGateway = 0
	Hops from current node to gateway. If node is gateway (Address == 0) 0 is set. More...
char *	SSID_ptr = NULL
	Pointer to network name (SSID). If node is not connected to any network, NULL is set. More...
uint8_t	SSID_length = 0
	Length of SSID without null terminator. If node is not connected to any network, 0 is set. More...
int8_t	RSSI = 0
	RSSI of scan response in dBm. More...

Detailed Description

Structure, which holds network scan result.

Member Function Documentation

IsConneted()

bool MeshNetScanResult::IsConneted ( ) const

inline

Checks if node which responsed is connected to any network.

IsGateway()

bool MeshNetScanResult::IsGateway ( ) const

inline

Checks if node which responsed is gateway.

IsValid()

bool MeshNetScanResult::IsValid ( ) const

inline

Checks if result is valid.

Field Documentation

Address

uint8_t MeshNetScanResult::Address = 0

Address of node.

BSSID

MeshMAC MeshNetScanResult::BSSID

BSSID of network, the node which responsed is connected to. If node is not connected to any network (Address == 253) BSSID is MAC address of node.

Flags

MeshNodeDescFlags MeshNetScanResult::Flags

Mesh node description flags, which describes every node.

HopsToGateway

uint8_t MeshNetScanResult::HopsToGateway = 0

Hops from current node to gateway. If node is gateway (Address == 0) 0 is set.

RSSI

int8_t MeshNetScanResult::RSSI = 0

RSSI of scan response in dBm.

SSID_length

uint8_t MeshNetScanResult::SSID_length = 0

Length of SSID without null terminator. If node is not connected to any network, 0 is set.

SSID_ptr

char* MeshNetScanResult::SSID_ptr = NULL

Pointer to network name (SSID). If node is not connected to any network, NULL is set.

Warning

SSID has no null terminator.

Version

MeshVersion MeshNetScanResult::Version

MeshNet version, the node is using.

---

The documentation for this struct was generated from the following file:

• Mesh/Inc/meshPacketFlags.h
