This file contains classes and structures that supports meshNet. More...

#include "meshConfig.h"

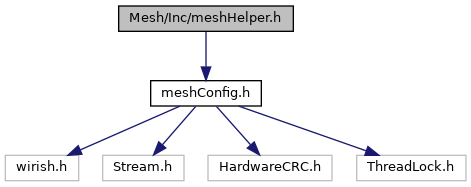

Include dependency graph for meshHelper.h:

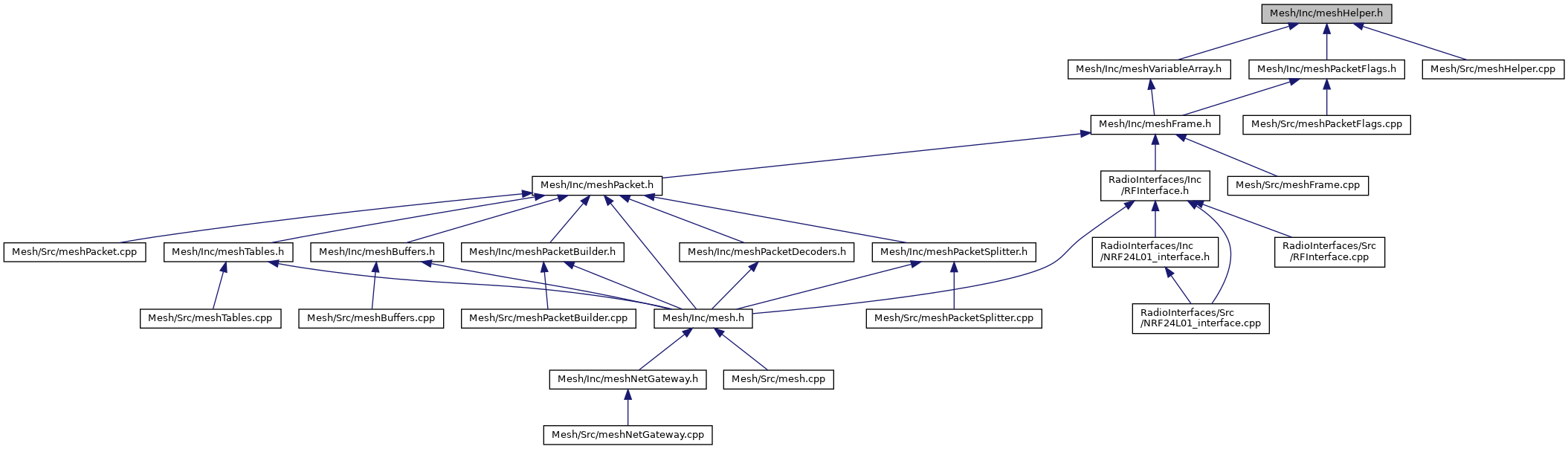

This graph shows which files directly or indirectly include this file:

Data Structures
class	InlinePrintable
	Interface for printing derived class collection as table with header and rows. More...

class	RawPrintable
	Interface for converting class or structure instance to raw bytes, which can be sent. More...

struct	MeshMAC
	Structure that represents physical MAC address used in MeshNEt protocol. MeshMAC address unlike MAC address used in TCP/IP protocol has just 4 octets. More...

struct	MeshVersion
	Structure that represents MeshNet version. Real size of this class is always 2 bytes. More...

Macros
#define	HAS_MEM_FUNC(func, name)
	This macro creates checker structure, which can check, if class contains member function. More...

Enumerations
enum	TextAlignment { T_LEFT, T_CENTER, T_RIGHT }
	Enumeration for text alignment in alignText() function. More...

enum	MeshPacketStatus { MPS_Unknown = 0, MPS_Sent, MPS_Waiting, MPS_WaitingForPath }

Functions
char *	_itoa_s (int32_t value, char *buffer, size_t size, int radix)

void	alignText (char *text, int size, char fill, TextAlignment alignment)
	Aligns text in char array. More...

Detailed Description

This file contains classes and structures that supports meshNet.

Credits

Author: Matej Fitoš

Date: Aug 24, 2021

Macro Definition Documentation

◆ HAS_MEM_FUNC

#define HAS_MEM_FUNC	(	func,
		name
	)

Value:

    template<typename T, typename Sign>                                         \
    struct name {                                                               \
        typedef char yes[1];                                                    \
        typedef char no [2];                                                    \
        template <typename U, U> struct type_check;                             \
        template <typename _1> static yes &chk(type_check<Sign, &_1::func> *);  \
        template <typename   > static no  &chk(...);                            \
        static bool const value = sizeof(chk<T>(0)) == sizeof(yes);             \
    }

This macro creates checker structure, which can check, if class contains member function.

@macro HAS_MEM_FUNC

Example

class testClass{
    int foo(bool a){
     return a;
    }

    int foo2(bool a) const{
     return a;
    }

    static int foo3(bool a){
     return a;
    }
};

HAS_MEM_FUNC(foo, has_foo); //Generating checker for member function foo()
HAS_MEM_FUNC(foo2, has_foo2); //Generating checker for member function foo2()
HAS_MEM_FUNC(foo3, has_foo3); //Generating checker for member function foo3()

//Basic member function
bool t1 = has_foo<testClass, int(testClass::*)(bool)>::value;           //True
bool t2 = has_foo<testClass, int(testClass::*)(int)>::value;            //False

//Constant member function
bool t3 = has_foo2<testClass, int(testClass::*)(bool) const>::value;    //True
bool t4 = has_foo2<testClass, int(testClass::*)(bool)>::value;          //False

//Static member function
bool t3 = has_foo3<testClass, int(*)(bool)>::value;                     //True
bool t4 = has_foo3<testClass, int(testClass::*)(bool)>::value;          //False

Author

https://stackoverflow.com/a/264088

Parameters

func	Name of function that needs to be checked.
name	Name of generated checker structure.

Enumeration Type Documentation

◆ MeshPacketStatus

enum MeshPacketStatus

@begin Status of sent mesh packet.

Enumerator
MPS_Unknown	No info about sent packet exists. This can be set if packet was sent, but no timeout was set.
MPS_Sent	Packet was sent. This can be set only if packet was sent with timeout.
MPS_Waiting	Packet is waiting for send.
MPS_WaitingForPath	Packet is waiting for path creation.

◆ TextAlignment

enum TextAlignment

Enumeration for text alignment in alignText() function.

Enumerator
T_LEFT
T_CENTER
T_RIGHT

Function Documentation

◆ _itoa_s()

char* _itoa_s	(	int32_t	value,
		char *	buffer,
		size_t	size,
		int	radix
	)

◆ alignText()

void alignText	(	char *	text,
		int	size,
		char	fill,
		TextAlignment	alignment
	)

Aligns text in char array.
