MeshPacketFIFO< BufferSize > Class Template Reference

Optimized FIFO buffer for microcontrolers, that can store only MeshPacket structure. More...

#include <meshBuffers.h>

Inheritance diagram for MeshPacketFIFO< BufferSize >:

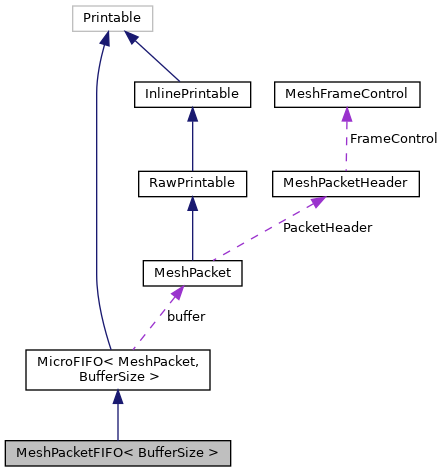

Collaboration diagram for MeshPacketFIFO< BufferSize >:

Public Member Functions
bool	existsID (uint8_t ID, uint8_t source) const
	Checks if there is packet in buffer with specified ID and source address, which creates unique packet identifier. More...
int16_t	getIndexOfPacket (uint8_t ID, uint8_t source) const
	Gets index of packet from unique packet identifier, which consists from ID and packet source address. More...
uint8_t	removeByDestination (uint8_t destination)
	Removes all packets with specified destination. More...
Public Member Functions inherited from MicroFIFO< MeshPacket, BufferSize >
const MeshPacket &	front () const
	Gets the first (oldest) item from the buffer. More...
MeshPacket &	front ()
	Gets the first (oldest) item from the buffer. More...
const MeshPacket &	back () const
	Gets the last (newest) item from the buffer. More...
MeshPacket &	back ()
	Gets the last (newest) item from the buffer. More...
bool	get (MeshPacket &item, uint8_t index) const
	Gets item from the buffer by index. More...
const MeshPacket &	operator[] (int index) const
	Gets item from the buffer by index. More...
MeshPacket &	operator[] (int index)
	Gets item from the buffer by index. More...
void	push (MeshPacket const &item)
	Pushes item after last item in buffer. When buffer is full, first (oldest) item will be overwritten and lostItemsCount() will be incremented by 1. More...
void	push (MeshPacket &&item)
	Pushes item after last item in buffer. When buffer is full, first (oldest) item will be overwritten and lostItemsCount() will be incremented by 1. More...
MeshPacket &&	popMove ()
	Reads and removes first (oldest) item from the buffer. When buffer is empty, exception may be thrown. This method is recommended to use only if std::move will be used. More...
bool	pop ()
	Removes first (oldest) item from the buffer. More...
bool	empty () const
	Checks if buffer is empty. More...
uint8_t	count () const
	Gets how many items are stored in buffer. More...
const uint8_t	size () const
	Gets maximum count of items, that can be stored in buffer. More...
uint8_t	lostItemsCount () const
void	restartLostItemsCounter ()
	Restarts lostItemsCount counter. More...
bool	removeAt (uint8_t index)
	Removes item at specified index. After removing, count() will return new value. More...
uint8_t	removeMulti (uint8_t startPos_, uint8_t itmCount)
	Removes number of item from specified index. After removing, count() will return new value. More...
uint8_t	removeIf (bool(*dec)(const MeshPacket &))
	Removes specified items. More...
void	clear ()
	Clears whole buffer. More...
size_t	getRawDataSize () const
	Calculates, how many bytes will be printed, when using command printRaw. More...
virtual size_t	printRaw (OSTREAM &stream, const char *customTag)
	Prints raw FIFO data through stream. Those data can be decoded in PC or in another MCU. More...
virtual size_t	print (OSTREAM &stream, bool showIndexes=true) const
	Prints items as table from FIFO buffer to stream. More...
virtual size_t	sizeOf () const
	Gets size of the whole FIFO in bytes. More...
size_t	printTo (Print &p) const override
	Makes this class printable. More...

Additional Inherited Members
Protected Member Functions inherited from MicroFIFO< MeshPacket, BufferSize >
int16_t	getRawIndex (uint8_t index) const
	Gets raw index in buffer from index. Index starts from startPos. Raw index starts from the beginning of the buffer. More...
const MeshPacket *	getRowPtr (uint8_t index) const
	Gets pointer to the item in buffer by index. More...
MeshPacket *	getRowPtr (uint8_t index)
	Gets pointer to the item in buffer by index. More...
bool	isRawIndexOccupied (uint8_t rawIndex) const
	Checks if there is item stored at raw index. More...
Protected Attributes inherited from MicroFIFO< MeshPacket, BufferSize >
MeshPacket	buffer [BufferSize]
uint8_t	startPos
uint8_t	endPos
uint8_t	usedSize
uint8_t	lostItems

Detailed Description

template<uint8_t BufferSize>
class MeshPacketFIFO< BufferSize >

Optimized FIFO buffer for microcontrolers, that can store only MeshPacket structure.

MeshPacketFIFO<255> packetFIFO;

Size of the FIFO buffer in this example can store 255 MeshPackets.

How data are stored:

index (not physically stored)	MeshPacket
0	XXX
1	XXX
...	...
XXX - depends on BufferSize	XXX

Member Function Documentation

existsID()

template<uint8_t BufferSize>

bool MeshPacketFIFO< BufferSize >::existsID ( uint8_t  ID, uint8_t  source  ) const

inline

Checks if there is packet in buffer with specified ID and source address, which creates unique packet identifier.

Parameters

ID	ID of packet to check if exists.
source	Source address of packet.

Returns

Returns true when packet with specified ID and source address exists in FIFO.

getIndexOfPacket()

template<uint8_t BufferSize>

int16_t MeshPacketFIFO< BufferSize >::getIndexOfPacket ( uint8_t  ID, uint8_t  source  ) const

inline

Gets index of packet from unique packet identifier, which consists from ID and packet source address.

Parameters

ID	Packet ID to look for.
source	Packet source address to look for.

Returns

Returns index of row with packet or -1 if no suitable packet found.

removeByDestination()

template<uint8_t BufferSize>

uint8_t MeshPacketFIFO< BufferSize >::removeByDestination ( uint8_t  destination )

inline

Removes all packets with specified destination.

Optimizations

Some optimizations are done here to reduce remove time.

1. std::Move is used to move rows. This can reduce moving time, because no allocation is needed when items in FIFO has allocated space.

   Note

   This operation can take some time, because some rows has to be moved, that's why it is not recommended to call it often.

   Parameters

   destination

   Packet, which has same destination will be removed.

   Returns

   Returns count of removed items.

---

The documentation for this class was generated from the following file:

• Mesh/Inc/meshBuffers.h
