Class, that stores mesh packet with it's data. The size of this class can be slightly bigger then real packet size. Fields that increasing size are: More...

#include <meshPacket.h>

Inheritance diagram for MeshPacket:

[legend]

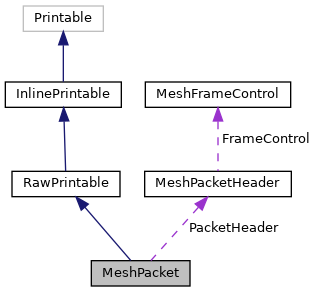

Collaboration diagram for MeshPacket:

[legend]

Public Member Functions
	MeshPacket ()

	MeshPacket (const MeshPacket &mp)
	Copy constructor. More...

	MeshPacket (MeshPacket &&mp) noexcept
	Move constructor. More...

	~MeshPacket ()
	Destructor. More...

MeshPacket &	operator= (const MeshPacket &mp)
	Copy assignment operator. More...

MeshPacket &	operator= (MeshPacket &&mp) noexcept
	Move assignment operator. More...

uint16_t	Length () const
	Length of payload. More...

uint8_t	operator[] (uint16_t i) const

uint8_t &	operator[] (uint16_t i)

SystemPacketType	GetSystemPacketType () const
	Gets type of system packet. More...

uint8_t	GetPayloadByteAt (uint16_t index) const
	Reads payload byte at specified index. More...

virtual bool	SetPayloadByteAt (uint16_t index, uint8_t value)
	Sets payload byte at specified index. More...

virtual bool	SetPayload (const uint8_t *payload, const uint16_t payloadLength)
	Sets payload data. More...

bool	SetPayload (const MeshVariableArray< uint8_t > &va)
	Copyies payload data from variable array to current packet payload. More...

virtual bool	SetPayload (MeshVariableArray< uint8_t > &&va)
	Copyies payload data from variable array to current packet payload and clears data in that variable array. More...

void	GetPayload (uint8_t *payload, uint16_t &payloadLength) const
	Gets payload data. More...

bool	GetPayload (MeshVariableArray< uint8_t > &payload) const
	Copyies payload data. More...

MeshVariableArray< uint8_t >	TakePayload ()
	Takes payload data. Payload will be cleared after this operation, because std::move was used. This method has a lot better performance than GetPayload() method, because there is no manual copying. More...

bool	ResizePayload (uint16_t size, bool doNotCopy=false)
	Resizes payload. More...

void	ClearPayload ()
	Clears payload data. More...

virtual void	Clear ()
	Clears all data in packet. More...

virtual bool	copyFrom (const MeshPacket &another)
	Copyies data from another packet to current packet. More...

virtual void	moveFrom (MeshPacket &another)
	Copyies data from another packet to current packet and clears data in another packet. More...

const uint8_t *	p_ptr () const
	Pointer to payload. More...

size_t	prettyPrint (OSTREAM &stream) const
	Pretty prints packet to stream. More...

size_t	printTo (Print &p) const override
	Makes this class printable. More...

size_t	printHeader (OSTREAM *stream) const override
	Prints header of table. More...

size_t	printLine (OSTREAM *stream) const override
	Prints this data as row to table. More...

size_t	sizeOf () const override
	Gets size of the whole class in bytes including dynamically allocated part. More...

size_t	printRaw (OSTREAM stream, void(CRC_calculation)(uint8_t *, size_t)) const override
	Prints current instance into stream in raw bytes. More...

virtual size_t	getRawSize () const override
	Calculates size of raw bytes. More...

virtual bool	HasError () const
	Checks if packet is not valid. More...

void	SetError ()
	Sets that packet is not valid. More...

bool	GetError () const
	Checks if error is set by calling SetError() More...

void	ClearError ()
	Sets that packet is valid. More...

Data Fields
MeshPacketHeader	PacketHeader
	Mesh packet header. More...

Static Protected Member Functions
static char	toHEXChar (OSTREAM &stream, uint8_t val)

static size_t	printHex (OSTREAM &stream, uint8_t val)

Protected Attributes
uint8_t *	Payload = NULL
	Packet payload. More...

uint16_t	PayloadLength: 10
	Packet payload length. Maximum value can be 1023, because only 10 bits are used. More...

bool	error: 1
	True when packet has error. More...

Detailed Description

Class, that stores mesh packet with it's data. The size of this class can be slightly bigger then real packet size. Fields that increasing size are:

Payload pointer (+4 bytes on 32-bit, +8 bytes on 64-bit) - pointer to dynamically allocated memory for payload,
Payload length (+2 bytes),
Vtable (+4 bytes on 32-bit, +8 bytes on 64-bit) - this class is derived, so it has to contain pointer to VTable,
Padding - depends on compiler
BSSID (-4 bytes) - BSSID is not stored in memory, but it is sent or received.

See also: meshPacket.h

Constructor & Destructor Documentation

◆ MeshPacket() [1/3]

MeshPacket::MeshPacket ( )

◆ MeshPacket() [2/3]

MeshPacket::MeshPacket ( const MeshPacket & mp )

Copy constructor.

◆ MeshPacket() [3/3]

MeshPacket::MeshPacket ( MeshPacket && mp )

noexcept

Move constructor.

◆ ~MeshPacket()

MeshPacket::~MeshPacket ( )

Destructor.

Member Function Documentation

◆ Clear()

void MeshPacket::Clear ( )

virtual

Clears all data in packet.

◆ ClearError()

void MeshPacket::ClearError ( )

inline

Sets that packet is valid.

◆ ClearPayload()

void MeshPacket::ClearPayload ( )

Clears payload data.

◆ copyFrom()

bool MeshPacket::copyFrom ( const MeshPacket & another )

virtual

Copyies data from another packet to current packet.

Parameters

another Packet to copy data from.

Returns: Returns true when copying was done correctly.

◆ GetError()

bool MeshPacket::GetError ( ) const

inline

Checks if error is set by calling SetError()

◆ GetPayload() [1/2]

bool MeshPacket::GetPayload ( MeshVariableArray< uint8_t > & payload ) const

inline

Copyies payload data.

Parameters

[out] payload Payload data.

Note: For better performance you can use TakePayload().

Returns: Returns true if data were copyied successfully.

◆ GetPayload() [2/2]

void MeshPacket::GetPayload	(	uint8_t *	payload,
		uint16_t &	payloadLength
	)		const

Gets payload data.

Parameters

[out]	payload	Payload data
	[in/out]	payloadLength Set length of your buffer. After data copying this value will contain copyied payload length.

◆ GetPayloadByteAt()

uint8_t MeshPacket::GetPayloadByteAt ( uint16_t index ) const

Reads payload byte at specified index.

Parameters

index Index, where to read payload byte.

Returns: Returns byte from payload at specified index or 0 when index is outside of range.

◆ getRawSize()

size_t MeshPacket::getRawSize ( ) const

overridevirtual

Calculates size of raw bytes.

Returns: Returns size of raw bytes.

Reimplemented from RawPrintable.

◆ GetSystemPacketType()

SystemPacketType MeshPacket::GetSystemPacketType ( ) const

Gets type of system packet.

Returns: Returns type of system packet or SPT_ERROR when curent packet has error or SPT_DATA is packet is not system packet.

◆ HasError()

virtual bool MeshPacket::HasError ( ) const

inlinevirtual

Checks if packet is not valid.

◆ Length()

uint16_t MeshPacket::Length ( ) const

inline

Length of payload.

◆ moveFrom()

void MeshPacket::moveFrom ( MeshPacket & another )

virtual

Copyies data from another packet to current packet and clears data in another packet.

Note: This is more efficient than calling copyFrom.

Parameters

another Packet to move data from.

Returns: Returns true when moving was done correctly.

◆ operator=() [1/2]

MeshPacket & MeshPacket::operator= ( const MeshPacket & mp )

Copy assignment operator.

◆ operator=() [2/2]

MeshPacket & MeshPacket::operator= ( MeshPacket && mp )

noexcept

Move assignment operator.

◆ operator[]() [1/2]

uint8_t& MeshPacket::operator[] ( uint16_t i )

inline

◆ operator[]() [2/2]

uint8_t MeshPacket::operator[] ( uint16_t i ) const

inline

◆ p_ptr()

const uint8_t* MeshPacket::p_ptr ( ) const

inline

Pointer to payload.

◆ prettyPrint()

size_t MeshPacket::prettyPrint ( OSTREAM & stream ) const

Pretty prints packet to stream.

Parameters

stream Stream, where packet will be printed.

Returns: Returns number of printed characters.

◆ printHeader()

size_t MeshPacket::printHeader ( OSTREAM * stream ) const

overridevirtual

Prints header of table.

Parameters

stream Ponter to wtream, where header has to be print.

Returns: Returns number of printed characters.

Note: Print "\r\n" at the end of the header.

Reimplemented from InlinePrintable.

◆ printHex()

size_t MeshPacket::printHex	(	OSTREAM &	stream,
		uint8_t	val
	)

staticprotected

◆ printLine()

size_t MeshPacket::printLine ( OSTREAM * stream ) const

overridevirtual

Prints this data as row to table.

Parameters

stream Ponter to wtream, where row has to be print.

Returns: Returns number of printed characters.

Note: Print "\r\n" at the end of the line.

Reimplemented from InlinePrintable.

◆ printRaw()

size_t MeshPacket::printRaw	(	OSTREAM *	stream,
		void()(uint8_t , size_t)	CRC_calculation
	)		const

overridevirtual

Prints current instance into stream in raw bytes.

Parameters

CRC_calculation Pointer to function, which provides CRC calculation, every sent byte has to be passed to this function. First parameter is pointer to data, that were printed and second is number of printed bytes.

Returns: Number of printed characters.

Reimplemented from RawPrintable.

◆ printTo()

size_t MeshPacket::printTo ( Print & p ) const

override

Makes this class printable.

Parameters

p	Stream, where to print data.

Returns: Returns number of printed characters.

◆ ResizePayload()

bool MeshPacket::ResizePayload	(	uint16_t	size,
		bool	doNotCopy = `false`
	)

Resizes payload.

Parameters

size	New size. Allowed value from 0 to PAYLOAD_SIZE_LIMIT.
doNotCopy	True to do not copy old data.

Returns: Returns true when resizing was sucessfull.

◆ SetError()

void MeshPacket::SetError ( )

inline

Sets that packet is not valid.

◆ SetPayload() [1/3]

bool MeshPacket::SetPayload ( const MeshVariableArray< uint8_t > & va )

inline

Copyies payload data from variable array to current packet payload.

Parameters

va	Variable array which data will be copyied.

Returns: Returns true when copying was done correctly.

◆ SetPayload() [2/3]

bool MeshPacket::SetPayload	(	const uint8_t *	payload,
		const uint16_t	payloadLength
	)

virtual

Sets payload data.

Parameters

[in]	payload	New payload data.
[in]	payloadLength	Length of new data.

Returns: Returns true when data was copyied.

◆ SetPayload() [3/3]

bool MeshPacket::SetPayload ( MeshVariableArray< uint8_t > && va )

virtual

Copyies payload data from variable array to current packet payload and clears data in that variable array.

Note: This is more efficient than calling copyFrom.

Parameters

va	Variable array which data will be moved.

Returns: Returns true when moving was done correctly.

◆ SetPayloadByteAt()

bool MeshPacket::SetPayloadByteAt	(	uint16_t	index,
		uint8_t	value
	)

virtual

Sets payload byte at specified index.

Parameters

index	Index, where to set payload byte.
value	Byte valeu to set.

Returns: Returns true when byte was set.

◆ sizeOf()

size_t MeshPacket::sizeOf ( ) const

inlineoverridevirtual

Gets size of the whole class in bytes including dynamically allocated part.

Returns: Returns size of the whole class in bytes.

Reimplemented from RawPrintable.

◆ TakePayload()

MeshVariableArray< uint8_t > MeshPacket::TakePayload ( )

Takes payload data. Payload will be cleared after this operation, because std::move was used. This method has a lot better performance than GetPayload() method, because there is no manual copying.

Returns: Returns payload as MeshVariableArray<uint8_t>.

◆ toHEXChar()

static char MeshPacket::toHEXChar	(	OSTREAM &	stream,
		uint8_t	val
	)

inlinestaticprotected

Field Documentation

◆ error

bool MeshPacket::error

protected

True when packet has error.

◆ PacketHeader

MeshPacketHeader MeshPacket::PacketHeader

Mesh packet header.

See also: MeshPacketHeader

◆ Payload

uint8_t* MeshPacket::Payload = NULL

protected

Packet payload.

◆ PayloadLength

uint16_t MeshPacket::PayloadLength

protected

Packet payload length. Maximum value can be 1023, because only 10 bits are used.

The documentation for this class was generated from the following files:

Mesh/Inc/meshPacket.h
Mesh/Src/meshPacket.cpp

Public Member Functions

Data Fields

Static Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ MeshPacket() [1/3]

◆ MeshPacket() [2/3]

◆ MeshPacket() [3/3]

◆ ~MeshPacket()

Member Function Documentation

◆ Clear()

◆ ClearError()

◆ ClearPayload()

◆ copyFrom()

◆ GetError()

◆ GetPayload() [1/2]

◆ GetPayload() [2/2]

◆ GetPayloadByteAt()

◆ getRawSize()

◆ GetSystemPacketType()

◆ HasError()

◆ Length()

◆ moveFrom()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ p_ptr()

◆ prettyPrint()

◆ printHeader()

◆ printHex()

◆ printLine()

◆ printRaw()

◆ printTo()

◆ ResizePayload()

◆ SetError()

◆ SetPayload() [1/3]

◆ SetPayload() [2/3]

◆ SetPayload() [3/3]

◆ SetPayloadByteAt()

◆ sizeOf()

◆ TakePayload()

◆ toHEXChar()

Field Documentation

◆ error

◆ PacketHeader

◆ Payload

◆ PayloadLength
