This file contains class called MeshNet, which implements sensory mesh protocol for microcontrollers. More...

#include <meshPacket.h>
#include <meshTables.h>
#include <meshBuffers.h>
#include <meshPacketBuilder.h>
#include <meshPacketSplitter.h>
#include <meshPacketDecoders.h>
#include <RFInterface.h>
#include <wirish.h>

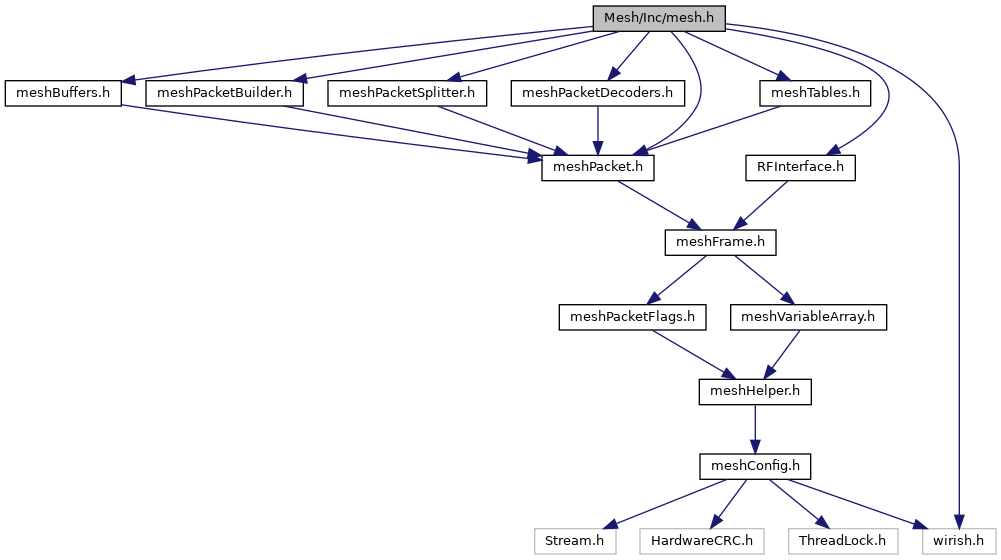

Include dependency graph for mesh.h:

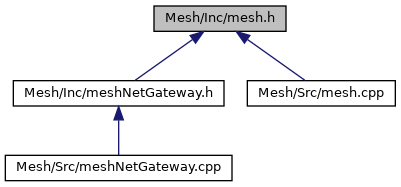

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
class	MeshNet
	This class implements MeshNet protocol for microcontrollers. More...

Enumerations
enum	MeshConnectionState { MeshDisconnected = 0, MeshConnectionScan, MeshConnectionRequest, MeshConnected, MeshDisconnecting }
	Enumeration that represents connection state of MeshNet. More...

enum	MeshDisconnectReason { MDR_None = 0, MDR_NotFound = 1, MDR_ConnectionRefused = 2, MDR_NetworkFull = 3, MDR_ConnectionError = 4, MDR_ConnectionRemoteError = 5, MDR_ConnectionTimeout = 6, MDR_DisconnectCalled = 30, MDR_DisconnectRequest = 31, MDR_NetworkDrop = 32, MDR_Unknown = 255 }
	Enumeration that represents disconnect or connection fail reason of MeshNet. More...

enum	MeshPacketError { MPE_OK = 0, MPE_OIDT_Overwrritten = -1, MPE_Timeout = -2, MPE_NodeLost = -3, MPE_NoNetwork = -4, MPE_Full_outFIFO = -5, MPE_Full_waitingFIFO = -6, MPE_LostRemote = -7, MPE_NoRoute = -8, MPE_Invalid = -9, MPE_GenErr = -10, MPE_AllocErr = -11 }
	Enumeration that represents state or error of sent MeshPacket in MeshNet. More...

Detailed Description

This file contains class called MeshNet, which implements sensory mesh protocol for microcontrollers.

See also: MeshNet

Credits

Author: Matej Fitoš

Date: May 4, 2022

Enumeration Type Documentation

◆ MeshConnectionState

enum MeshConnectionState

Enumeration that represents connection state of MeshNet.

Enumerator
MeshDisconnected	Node is disconnected from any network.
MeshConnectionScan	Node is connecting to network. Network scan started.
MeshConnectionRequest	Node is connecting to network. Connection request was sent.
MeshConnected	Node is connected to network.
MeshDisconnecting	Node is disconnecting.

◆ MeshDisconnectReason

enum MeshDisconnectReason

Enumeration that represents disconnect or connection fail reason of MeshNet.

Enumerator
MDR_None	None disconnect reason
MDR_NotFound	Network, the node wants to connect to was not found. This can happened only after calling connection.
MDR_ConnectionRefused	Network, the node wants to connect to refused connection. This can happened only after calling connection.
MDR_NetworkFull	Network, the node wants to connect to refused connection. This can happened only after calling connection.
MDR_ConnectionError	Some error happened during connection. This can happened only after calling connection.
MDR_ConnectionRemoteError	Some error happened during connection, but not in current node. This can happened only after calling connection.
MDR_ConnectionTimeout	Connection timed out. This can happened only after calling connection.
MDR_DisconnectCalled	Disconnected after calling disconnect() method.
MDR_DisconnectRequest	Gateway node requests current node disconnect.
MDR_NetworkDrop	Network has dropped, all nodes was disconnected.
MDR_Unknown	Unknown reason.

◆ MeshPacketError

enum MeshPacketError

Enumeration that represents state or error of sent MeshPacket in MeshNet.

Enumerator
MPE_OK	No packet error.
MPE_OIDT_Overwrritten	Record of sent packet was overwritten in OIDTable. This is warning sign, that OID table is full and maybe you have to set it's capacity to larger number.
MPE_Timeout	Packet has timed out and no response has been received. This can happened only if packet was sent with response request (ACK-R) or when specific system packet was sent. Packet timeouts are stored in OIDTable.
MPE_NodeLost	Packet lost, because destination node is no longer accessible.
MPE_NoNetwork	Packet was lost, because node was disconnected from network it belongs to.
MPE_Full_outFIFO	Packet was lost, because buffer, where it has to be stored was already full. It is recommended to create same packet and send it again. This could happened only occasionally and it indicates, that outFIFO buffer has small size.
MPE_Full_waitingFIFO	Packet was lost, because buffer, where it has to be stored was already full. It is recommended to create same packet and send it again. This could happened only occasionally and it indicates, that waitingFIFO buffer has small size.
MPE_LostRemote	Packet was lost, but not in current node. Same action has to be done to handle this as with MPE_Lost error.
MPE_NoRoute	Packet was lost, because route to destination node was not created or discovery process has failed.
MPE_Invalid	Packet was scrapped, because it was marked as invalid.
MPE_GenErr	Generic error happened during action.
MPE_AllocErr	Packet was lost, because it's memory cannot be allocated.
