Optimized FIFO buffer for microcontrolers, that can store only MeshPacket structure. This class contains 2 FIFO buffers, first for high priority (routed packet), second for low priority (flood packet). Size of each inner FIFO can be specified in template. Template parameters are: More...

#include <meshBuffers.h>

Inheritance diagram for MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >:

[legend]

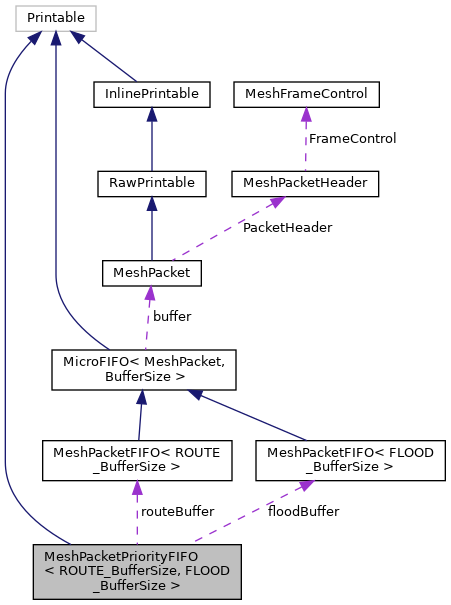

Collaboration diagram for MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >:

[legend]

Public Member Functions
const MeshPacket &	front () const
	Gets the first (oldest with the highest priority) item from the buffer. More...

MeshPacket &	front ()
	Gets the first (oldest with the highest priority) item from the buffer. More...

const MeshPacket &	back () const
	Gets the last (newest with the lowest priority) item from the buffer. More...

MeshPacket &	back ()
	Gets the last (newest with the lowest priority) item from the buffer. More...

bool	get (MeshPacket &item, uint8_t index) const
	Gets item from the buffer by index. More...

const MeshPacket &	operator[] (int index) const
	Gets item from the buffer by index. More...

MeshPacket &	operator[] (int index)
	Gets item from the buffer by index. More...

void	push (MeshPacket const &item)
	Pushes item after last item in buffer. When buffer is full, first (oldest with the highest priority) item will be overwritten and lostItemsCount() will be incremented by 1. More...

void	push (MeshPacket &&item)
	Pushes item after last item in buffer. When buffer is full, first (oldest with the highest priority) item will be overwritten and lostItemsCount() will be incremented by 1. More...

MeshPacket &&	popMove ()
	Reads and removes first (oldest with the highest priority) item from the buffer. When buffer is empty, exception may be thrown. More...

bool	pop ()
	Removes first (oldest with the highest priority) item from the buffer. More...

bool	removeAt (uint8_t index)
	Removes item at specified index. After removing, count() will return new value. More...

uint8_t	removeMulti (uint8_t startPos, uint8_t itmCount)
	Removes number of item from specified index. After removing, count() will return new value. More...

uint8_t	removeIf (bool(*dec)(const MeshPacket &))
	Removes specified items. More...

uint8_t	removeByDestination (uint8_t destination)
	Removes all packets with specified destination. More...

bool	existsID (uint8_t ID, uint8_t source) const
	Checks if there is packet in buffer with specified ID and source address, which creates unique packet identifier. More...

int16_t	getIndexOfPacket (uint8_t ID, uint8_t source) const
	Gets index of packet from unique packet identifier, which consists from ID and packet source address. More...

bool	empty () const
	Checks if buffer is empty. More...

uint8_t	count () const
	Gets how many items are stored in buffer. More...

uint8_t	highCount () const
	Gets how many items are stored in high priority buffer. More...

uint8_t	lowCount () const
	Gets how many items are stored in low priority buffer. More...

uint8_t	size () const
	Gets maximum count of items, that can be stored in buffer. More...

uint8_t	highSize () const
	Gets maximum count of items, that can be stored in high priority buffer. More...

uint8_t	lowSize () const
	Gets maximum count of items, that can be stored in low priority buffer. More...

uint8_t	lostItemsCount () const

void	restartLostItemsCounter ()
	Restarts lostItemsCount counter. More...

void	clear ()
	Clears whole buffer. More...

MeshPacketFIFO< ROUTE_BufferSize > &	highFIFO ()
	Gets reference to high priority FIFO. More...

const MeshPacketFIFO< ROUTE_BufferSize > &	highFIFO () const
	Gets reference to high priority FIFO. More...

MeshPacketFIFO< ROUTE_BufferSize > &	lowFIFO ()
	Gets reference to low priority FIFO. More...

const MeshPacketFIFO< ROUTE_BufferSize > &	lowFIFO () const
	Gets reference to low priority FIFO. More...

size_t	getRawDataSize () const
	Calculates, how many bytes will be printed, when using command printRaw. More...

virtual size_t	printRaw (OSTREAM &stream, const char *customTag)
	Prints raw FIFO data through stream. Those data can be decoded in PC or in another MCU. More...

virtual size_t	print (OSTREAM &stream, bool showIndexes=true) const
	Prints items as table from FIFO buffer to stream. More...

virtual size_t	sizeOf () const
	Gets size of the whole FIFO in bytes. More...

size_t	printTo (Print &p) const override
	Makes this class printable. More...

Protected Attributes
MeshPacketFIFO< ROUTE_BufferSize >	routeBuffer

MeshPacketFIFO< FLOOD_BufferSize >	floodBuffer

Detailed Description

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>
class MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >

Optimized FIFO buffer for microcontrolers, that can store only MeshPacket structure. This class contains 2 FIFO buffers, first for high priority (routed packet), second for low priority (flood packet). Size of each inner FIFO can be specified in template. Template parameters are:

ROUTE_BufferSize - Size of high priority buffer.
FLOOD_BufferSize - Size of low priority buffer.
MeshPacketPriorityFIFO<20,30> packetFIFO;

Size of the FIFO buffer in this example is 20 rows for high priority and 30 rows for low priority.

How data are stored:

index (not physically stored)	MeshPacket
0	XXX
1	XXX
...	...
XXX - depends on BufferSize	XXX

Member Function Documentation

◆ back() [1/2]

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

MeshPacket& MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::back ( )

inline

Gets the last (newest with the lowest priority) item from the buffer.

Note: Always check, if there is at least one available item in the buffer, because the exception can be thrown.

Returns: Returns the last (newest with the lowest priority) item from the buffer.

◆ back() [2/2]

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

const MeshPacket& MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::back ( ) const

inline

Gets the last (newest with the lowest priority) item from the buffer.

Note: Always check, if there is at least one available item in the buffer, because the exception can be thrown.

Returns: Returns the last (newest with the lowest priority) item from the buffer.

◆ clear()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

void MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::clear ( )

inline

Clears whole buffer.

◆ count()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

uint8_t MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::count ( ) const

inline

Gets how many items are stored in buffer.

Returns: Returns how many items are stored in buffer.

◆ empty()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

bool MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::empty ( ) const

inline

Checks if buffer is empty.

Returns: Returns true when buffer is empty.

◆ existsID()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

bool MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::existsID	(	uint8_t	ID,
		uint8_t	source
	)		const

inline

Checks if there is packet in buffer with specified ID and source address, which creates unique packet identifier.

Parameters

ID	ID of packet to check if exists.
source	Source address of packet.

Returns: Returns true when packet with specified ID and source address exists in FIFO.

◆ front() [1/2]

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

MeshPacket& MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::front ( )

inline

Gets the first (oldest with the highest priority) item from the buffer.

Note: Always check, if there is at least one available item in the buffer, because the exception can be thrown.

Returns: Returns the first (oldest with the highest priority) item from the buffer.

◆ front() [2/2]

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

const MeshPacket& MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::front ( ) const

inline

Gets the first (oldest with the highest priority) item from the buffer.

Note: Always check, if there is at least one available item in the buffer, because the exception can be thrown.

Returns: Returns the first (oldest with the highest priority) item from the buffer.

◆ get()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

bool MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::get	(	MeshPacket &	item,
		uint8_t	index
	)		const

inline

Gets item from the buffer by index.

Parameters

item	Reference to item, that will be filled by data from buffer.
index	Index of item to get. Index 0 is the first (oldest with highest priority) item from the buffer, same as using front() method.

Returns: Returns true when item was read and false, when there is no available item at specified index.

◆ getIndexOfPacket()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

int16_t MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::getIndexOfPacket	(	uint8_t	ID,
		uint8_t	source
	)		const

inline

Gets index of packet from unique packet identifier, which consists from ID and packet source address.

Parameters

ID	Packet ID to look for.
source	Packet source address to look for.

Returns: Returns index of row with packet or -1 if no suitable packet found.

◆ getRawDataSize()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

size_t MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::getRawDataSize ( ) const

inline

Calculates, how many bytes will be printed, when using command printRaw.

Returns: Returns how many bytes will be printed, when using command printRaw.

◆ highCount()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

uint8_t MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::highCount ( ) const

inline

Gets how many items are stored in high priority buffer.

Returns: Returns how many items are stored in high priority buffer.

◆ highFIFO() [1/2]

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

MeshPacketFIFO<ROUTE_BufferSize>& MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::highFIFO ( )

inline

Gets reference to high priority FIFO.

◆ highFIFO() [2/2]

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

const MeshPacketFIFO<ROUTE_BufferSize>& MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::highFIFO ( ) const

inline

Gets reference to high priority FIFO.

◆ highSize()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

uint8_t MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::highSize ( ) const

inline

Gets maximum count of items, that can be stored in high priority buffer.

Returns: Returns maximum count of items, that can be stored in high priority buffer.

◆ lostItemsCount()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

uint8_t MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::lostItemsCount ( ) const

inline

@breif Gets how many items were lost (overwrote).

Returns: Returns how many items were lost (overwrote).

◆ lowCount()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

uint8_t MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::lowCount ( ) const

inline

Gets how many items are stored in low priority buffer.

Returns: Returns how many items are stored in low priority buffer.

◆ lowFIFO() [1/2]

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

MeshPacketFIFO<ROUTE_BufferSize>& MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::lowFIFO ( )

inline

Gets reference to low priority FIFO.

◆ lowFIFO() [2/2]

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

const MeshPacketFIFO<ROUTE_BufferSize>& MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::lowFIFO ( ) const

inline

Gets reference to low priority FIFO.

◆ lowSize()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

uint8_t MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::lowSize ( ) const

inline

Gets maximum count of items, that can be stored in low priority buffer.

Returns: Returns maximum count of items, that can be stored in low priority buffer.

◆ operator[]() [1/2]

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

MeshPacket& MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::operator[] ( int index )

inline

Gets item from the buffer by index.

Note: Always check, if there is at available item in the buffer at specified index, because the exception can be thrown.

Parameters

index Index of item to get. Index 0 is the first (oldest with highest priority) item from the buffer, same as using front() method.

◆ operator[]() [2/2]

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

const MeshPacket& MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::operator[] ( int index ) const

inline

Gets item from the buffer by index.

Note: Always check, if there is at available item in the buffer at specified index, because the exception can be thrown.

Parameters

index Index of item to get. Index 0 is the first (oldest with highest priority) item from the buffer, same as using front() method.

◆ pop()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

bool MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::pop ( )

inline

Removes first (oldest with the highest priority) item from the buffer.

Note: To read first (oldest) item from this buffer use front() method before pop().

Returns: Returns true if item was removed and false if not.

◆ popMove()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

MeshPacket&& MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::popMove ( )

inline

Reads and removes first (oldest with the highest priority) item from the buffer. When buffer is empty, exception may be thrown.

Note: Always check, if there is at least one available item in the buffer, because the exception can be thrown.

Returns: Returns first (oldest with the highest priority) item from the buffer.

◆ print()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

virtual size_t MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::print	(	OSTREAM &	stream,
		bool	showIndexes = `true`
	)		const

inlinevirtual

Prints items as table from FIFO buffer to stream.

Parameters

stream	Stream, where data will be printed.
showIndexes	True to show indexes of items in printed table.

Returns: Returns number of printed characters.

◆ printRaw()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

virtual size_t MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::printRaw	(	OSTREAM &	stream,
		const char *	customTag
	)

inlinevirtual

Prints raw FIFO data through stream. Those data can be decoded in PC or in another MCU.

Data structure

Byte	Data	Data name
0-3	"MFF:"	Data label (Micro FIFO).
4-7		Custom tag
7		Allocated buffer size (Max number of rows).
8		Size of one row in bytes. (255 = unknown, size of each row has to be stored at the begining of row data)
9		Used rows count (length and CRC bytes not included).
10.....x		Raw data
last 4 bytes		CRC-32 (excluded 0-3 bytes)

Parameters

stream	Stream where to print raw data.
customTag	Custom data type tag. Maximum length is 4 characters.

Returns: Returns number of printed bytes.

◆ printTo()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

size_t MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::printTo ( Print & p ) const

inlineoverride

Makes this class printable.

Parameters

p	Stream, where to print data.

Returns: Returns number of printed characters.

◆ push() [1/2]

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

void MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::push ( MeshPacket && item )

inline

Pushes item after last item in buffer. When buffer is full, first (oldest with the highest priority) item will be overwritten and lostItemsCount() will be incremented by 1.

Note: If Type supports moving, it value will be moved.

Parameters

item	Item to push into buffer.

◆ push() [2/2]

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

void MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::push ( MeshPacket const & item )

inline

Pushes item after last item in buffer. When buffer is full, first (oldest with the highest priority) item will be overwritten and lostItemsCount() will be incremented by 1.

Parameters

item	Item to push into buffer.

◆ removeAt()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

bool MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::removeAt ( uint8_t index )

inline

Removes item at specified index. After removing, count() will return new value.

Optimizations

Some optimizations are done here to reduce remove time.

std::Move is used to move rows. This can reduce moving time, because no allocation is needed when items in FIFO has allocated space.
FIFO is splitted to half before removing. If index is in lower half, rows from start until index are moved up. If index is in higher half, rows from end until index are moved down. This can reduce complexity to half of it's value.
Note
This operation can take some time, because some rows has to be moved, that's why it is not recommended to call it often.

Parameters

index Index of item to remove.

Returns
Returns true if item was removed.

◆ removeByDestination()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

uint8_t MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::removeByDestination ( uint8_t destination )

inline

Removes all packets with specified destination.

Optimizations

Some optimizations are done here to reduce remove time.

std::Move is used to move rows. This can reduce moving time, because no allocation is needed when items in FIFO has allocated space.
Note
This operation can take some time, because some rows has to be moved, that's why it is not recommended to call it often.

Parameters

destination Packet, which has same destination will be removed.

Returns
Returns count of removed items.

◆ removeIf()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

uint8_t MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::removeIf ( bool(*)(const MeshPacket &) dec )

inline

Removes specified items.

Optimizations

Some optimizations are done here to reduce remove time.

std::Move is used to move rows. This can reduce moving time, because no allocation is needed when items in FIFO has allocated space.
Note
This operation can take some time, because some rows has to be moved, that's why it is not recommended to call it often.

Parameters

dec Function, which returns true to remove item.

Returns
Returns count of removed items.

◆ removeMulti()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

uint8_t MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::removeMulti	(	uint8_t	startPos,
		uint8_t	itmCount
	)

inline

Removes number of item from specified index. After removing, count() will return new value.

Optimizations

Some optimizations are done here to reduce remove time.

std::Move is used to move rows. This can reduce moving time, because no allocation is needed when items in FIFO has allocated space.
FIFO is splitted to half before removing. If the most of removed part is in lower half, rows from start until index are moved up. If the most of removed part is in higher half, rows from end until index are moved down. This can reduce complexity to half of it's value.
Note
This operation can take some time, because some rows has to be moved, that's why it is not recommended to call it often.

Parameters

startPos Index of first item to remove.

itmCount Count of items to remove (including first one).

Returns
Returns count of removed items.

◆ restartLostItemsCounter()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

void MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::restartLostItemsCounter ( )

inline

Restarts lostItemsCount counter.

◆ size()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

uint8_t MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::size ( ) const

inline

Gets maximum count of items, that can be stored in buffer.

Returns: Returns maximum count of items, that can be stored in buffer.

◆ sizeOf()

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

virtual size_t MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::sizeOf ( ) const

inlinevirtual

Gets size of the whole FIFO in bytes.

Returns: Returns size of the whole FIFO in bytes.

Field Documentation

◆ floodBuffer

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

MeshPacketFIFO<FLOOD_BufferSize> MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::floodBuffer

protected

◆ routeBuffer

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>

MeshPacketFIFO<ROUTE_BufferSize> MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >::routeBuffer

protected

The documentation for this class was generated from the following file:

Mesh/Inc/meshBuffers.h

startPos	Index of first item to remove.
itmCount	Count of items to remove (including first one).

Public Member Functions

Protected Attributes

Detailed Description

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize> class MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >

How data are stored:

Member Function Documentation

◆ back() [1/2]

◆ back() [2/2]

◆ clear()

◆ count()

◆ empty()

◆ existsID()

◆ front() [1/2]

◆ front() [2/2]

◆ get()

◆ getIndexOfPacket()

◆ getRawDataSize()

◆ highCount()

◆ highFIFO() [1/2]

◆ highFIFO() [2/2]

◆ highSize()

◆ lostItemsCount()

◆ lowCount()

◆ lowFIFO() [1/2]

◆ lowFIFO() [2/2]

◆ lowSize()

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ pop()

◆ popMove()

◆ print()

◆ printRaw()

Data structure

◆ printTo()

◆ push() [1/2]

◆ push() [2/2]

◆ removeAt()

Optimizations

◆ removeByDestination()

Optimizations

◆ removeIf()

Optimizations

◆ removeMulti()

Optimizations

◆ restartLostItemsCounter()

◆ size()

◆ sizeOf()

Field Documentation

◆ floodBuffer

◆ routeBuffer

template<uint8_t ROUTE_BufferSize, uint8_t FLOOD_BufferSize>
class MeshPacketPriorityFIFO< ROUTE_BufferSize, FLOOD_BufferSize >
