This class supports splitting MeshPacket to multiple MeshFrames in one carriage. MeshPackets are splitted, because they can contain larger payload than frame. Those frames can be then sent over radio to another receiver, which can build packet from those frames MeshPacketBuilder. More...

#include <meshPacketSplitter.h>

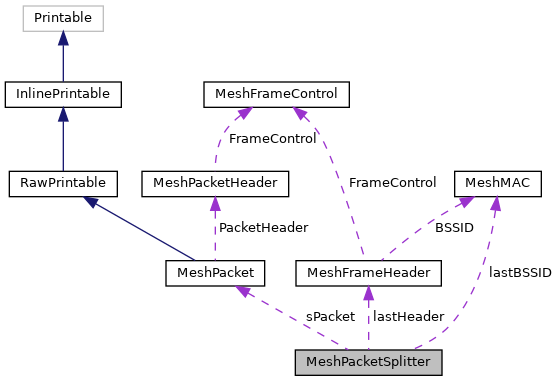

Collaboration diagram for MeshPacketSplitter:

[legend]

Public Member Functions
bool	SplitNew (const MeshPacket &packet, MeshMAC bssid, uint8_t maxFrameSize_)
	Starts splitting new packet to frames, this has to be called first before splitting. More...

bool	SplitNew (MeshPacket &&packet, MeshMAC bssid, uint8_t maxFrameSize_)
	Starts splitting new packet to frames, this has to be called first before splitting. More...

bool	SplitNewMove (MeshPacket &packet, MeshMAC bssid, uint8_t maxFrameSize_)
	Starts splitting new packet to frames, this has to be called first before splitting. More...

void	Restart (MeshMAC bssid, uint8_t maxFrameSize_)
	Restarts splitting with old packet, which is reused. More...

void	Restart (uint8_t maxFrameSize_)
	Restarts splitting with old packet, which is reused. More...

void	Restart (MeshMAC bssid)
	Restarts splitting with old packet, which is reused. More...

void	Restart ()
	Restarts splitting with old packet, which is reused. Alternative name to this method is SeekToBegin(). More...

void	Clear ()
	Clears and releases all rsources and stops splitting. More...

uint8_t	GetMaxFrameSize () const
	Gets maximum frame size, that was set in SplitNew(), SplitNewMove() or Restart() method. More...

uint8_t	GetLastCarriageFrameSize () const
	Gets size of frame, that will be at the end of carriage. All other frames has size same as GetMaxFrameSize(). When frame doesn't have to be splitted, size of that frame is returned. More...

uint8_t	GetFramesCount () const
	Gets count of frames into which the packet will be splitted. More...

uint8_t	GetRemainingFramesCount () const
	Gets count of remaining frames, that will be splitted. More...

uint8_t	GetCurrentFrameSize () const
	Gets size of the current frame, which will be splitted. More...

uint8_t	GetCurrentFrameDataSize () const
	Gets size of data part of the current frame, which will be splitted. More...

uint8_t	GetFrameSize (uint8_t index) const
	Gets size of frame at specific index. More...

uint8_t	GetFrameDataSize (uint8_t index) const
	Gets size of data part of frame at specific index. More...

uint8_t	GetCurrentFrameIndex () const
	Gets index of frame, that will be splitted. More...

bool	Seek (uint8_t frameIndex)
	Seeks (moves) to the frame set by index. This can be used, when same packet has to be retransmitted after calling SplitNextAsFrame(), SplitNextAsFrameHeaderAndData() or SplitNextAsFrameRawData(). More...

bool	SeekToNext ()
	Seeks (moves) to the next frame. More...

bool	SeekToEnd ()
	Seeks (moves) to the end, after last frame, that has to be splitted. More...

MeshFrame	SplitNextAsFrame ()
	Splits current frame and moves to another. More...

bool	SplitNextAsFrameHeaderAndData (MeshFrameHeader &header, uint8_t *data, uint8_t &dataSize)
	Splits current frame and moves to another. More...

bool	SplitNextAsFrameRawData (uint8_t *rawData, uint8_t &dataSize)
	Splits current frame and moves to another. More...

MeshFrame	SplitCurrentAsFrame (bool moveToNext=false)
	Splits current frame and does not move to another. Same frame can be splitted multiple times using this method. More...

bool	SplitCurrentAsFrameHeaderAndData (MeshFrameHeader &header, uint8_t *data, uint8_t &dataSize, bool moveToNext=false)
	Splits current frame and does not move to another. Same frame can be splitted multiple times using this method. More...

bool	SplitCurrentAsFrameRawData (uint8_t *rawData, uint8_t &dataSize, bool moveToNext=false)
	Splits current frame and does not move to another. Same frame can be splitted multiple times using this method. More...

const MeshPacket &	GetSplittedPacket () const
	Gets packet, that is being splitted. More...

MeshPacket &&	TakeSplittedPacket ()
	Takes packet, that was splitted and calls clear method. More...

Protected Attributes
MeshPacket	sPacket

MeshMAC	lastBSSID

MeshFrameHeader	lastHeader

uint8_t	carriageFrameCount = 0

uint8_t	lastCarriageFrameDataSize = 0

uint8_t	maxFrameSize = 32

uint8_t	splitDataPos = 0

uint8_t	remainingCarriageCount = 0

Detailed Description

This class supports splitting MeshPacket to multiple MeshFrames in one carriage. MeshPackets are splitted, because they can contain larger payload than frame. Those frames can be then sent over radio to another receiver, which can build packet from those frames MeshPacketBuilder.

Carriage

Carriage is set of frames which was splitted. The first frame in carriage is called header frame or head frame. It contains all packet header fields and part of data. Other frames are called only carriage frames, they contains only necessary frame header fields to identify frame and another part of data. Every carriage contains count of remaining frames. This is field called CarriageCount. Those carriage frames has to be sorted by CarriageCount.

Worst case performance

Table bellow shows the worst case performance, when packet with 512 bytes of data need to be sent. In the first column is maximum size of frame (maxFrameSize parameter). In the second column is calculated summation of all bytes in all splitted frames including header bytes. In the last column is number of frames, the packet will be splitted to.

Max frame size [bytes]	Frame size summation [bytes]	Count of splitted frames
24	780	33
32	692	22
48	620	13
64	596	10
96	564	6
128	556	5

See also: meshPacketSplitter.h; MeshPacketBuilder; MeshPacket; MeshFrame

Member Function Documentation

◆ Clear()

void MeshPacketSplitter::Clear ( )

Clears and releases all rsources and stops splitting.

◆ GetCurrentFrameDataSize()

uint8_t MeshPacketSplitter::GetCurrentFrameDataSize ( ) const

Gets size of data part of the current frame, which will be splitted.

◆ GetCurrentFrameIndex()

uint8_t MeshPacketSplitter::GetCurrentFrameIndex ( ) const

inline

Gets index of frame, that will be splitted.

Note: Call this before calling SplitNextAsFrame(), SplitNextAsFrameHeaderAndData() or SplitNextAsFrameRawData(), because this method will then return index of next frame.

◆ GetCurrentFrameSize()

uint8_t MeshPacketSplitter::GetCurrentFrameSize ( ) const

Gets size of the current frame, which will be splitted.

◆ GetFrameDataSize()

uint8_t MeshPacketSplitter::GetFrameDataSize ( uint8_t index ) const

Gets size of data part of frame at specific index.

Parameters

index Index of frame, which data part size needs to be get.

◆ GetFramesCount()

uint8_t MeshPacketSplitter::GetFramesCount ( ) const

inline

Gets count of frames into which the packet will be splitted.

Returns: Returns 0 when splitting is at the end or has never stared. Returns 1 when frame doesn't have to be splitted, else returns number of frames in carriage.

◆ GetFrameSize()

uint8_t MeshPacketSplitter::GetFrameSize ( uint8_t index ) const

Gets size of frame at specific index.

Parameters

index Index of frame, which size needs to be get.

◆ GetLastCarriageFrameSize()

uint8_t MeshPacketSplitter::GetLastCarriageFrameSize ( ) const

inline

Gets size of frame, that will be at the end of carriage. All other frames has size same as GetMaxFrameSize(). When frame doesn't have to be splitted, size of that frame is returned.

◆ GetMaxFrameSize()

uint8_t MeshPacketSplitter::GetMaxFrameSize ( ) const

inline

Gets maximum frame size, that was set in SplitNew(), SplitNewMove() or Restart() method.

◆ GetRemainingFramesCount()

uint8_t MeshPacketSplitter::GetRemainingFramesCount ( ) const

inline

Gets count of remaining frames, that will be splitted.

Returns: Returns 0 when splitting is at the end or has never stared, else returns remaining frames count.

◆ GetSplittedPacket()

const MeshPacket& MeshPacketSplitter::GetSplittedPacket ( ) const

inline

Gets packet, that is being splitted.

Note: Valid packet is returned only when splitting started.

◆ Restart() [1/4]

void MeshPacketSplitter::Restart ( )

Restarts splitting with old packet, which is reused. Alternative name to this method is SeekToBegin().

◆ Restart() [2/4]

void MeshPacketSplitter::Restart ( MeshMAC bssid )

Restarts splitting with old packet, which is reused.

Parameters

bssid New BSSID, that has to be set to each frame.

◆ Restart() [3/4]

void MeshPacketSplitter::Restart	(	MeshMAC	bssid,
		uint8_t	maxFrameSize_
	)

Restarts splitting with old packet, which is reused.

Parameters

bssid	New BSSID, that has to be set to each frame.
maxFrameSize_	New max frame size.

◆ Restart() [4/4]

void MeshPacketSplitter::Restart ( uint8_t maxFrameSize_ )

Restarts splitting with old packet, which is reused.

Parameters

maxFrameSize_ New max frame size.

◆ Seek()

bool MeshPacketSplitter::Seek ( uint8_t frameIndex )

Seeks (moves) to the frame set by index. This can be used, when same packet has to be retransmitted after calling SplitNextAsFrame(), SplitNextAsFrameHeaderAndData() or SplitNextAsFrameRawData().

Parameters

frameIndex Index of frame, where to seek.

Returns: Returns true when seek was successfull and frameIndex was not out of range.

◆ SeekToEnd()

bool MeshPacketSplitter::SeekToEnd ( )

Seeks (moves) to the end, after last frame, that has to be splitted.

Returns: Returns true when seek wa successfull.

◆ SeekToNext()

bool MeshPacketSplitter::SeekToNext ( )

Seeks (moves) to the next frame.

Returns: Returns true when seek was successfull and end was not reached.

◆ SplitCurrentAsFrame()

MeshFrame MeshPacketSplitter::SplitCurrentAsFrame ( bool moveToNext = false )

Splits current frame and does not move to another. Same frame can be splitted multiple times using this method.

Note: Always check before calling this method, if there are remaining frames using GetRemainingFramesCount() method.

Parameters

moveToNext True when splitter has to move to another frame after splitting. When you want to use it, it is recommended to use moveToNext() method.

Returns: Returns splitted frame as MeshFrame.

◆ SplitCurrentAsFrameHeaderAndData()

bool MeshPacketSplitter::SplitCurrentAsFrameHeaderAndData	(	MeshFrameHeader &	header,
		uint8_t *	data,
		uint8_t &	dataSize,
		bool	moveToNext = `false`
	)

Splits current frame and does not move to another. Same frame can be splitted multiple times using this method.

Note: Always check before calling this method, if there are remaining frames using GetRemainingFramesCount() method.

Parameters

[out]	header	Header of frame, that was splitted.
[out]	data	Buffer reserved for data from splitted frame. Size of this buffer has to be minimally same as GetCurrentFrameDataSize() value.
[out]	dataSize	The size of data copyied to data buffer. This value is not checked when copying to data buffer, that why you has to check it before calling this function using GetCurrentFrameDataSize() method.
	moveToNext	True when splitter has to move to another frame after splitting. When you want to use it, it is recommended to use moveToNext() method.

Returns: Returns true when frame was splitted.

◆ SplitCurrentAsFrameRawData()

bool MeshPacketSplitter::SplitCurrentAsFrameRawData	(	uint8_t *	rawData,
		uint8_t &	dataSize,
		bool	moveToNext = `false`
	)

Splits current frame and does not move to another. Same frame can be splitted multiple times using this method.

Note: Always check before calling this method, if there are remaining frames using GetRemainingFramesCount() method.

Parameters

[out]	header	Header of frame, that was splitted.
[out]	rawData	Buffer reserved for data, from which the frame can be created. Size of this buffer has to be minimally same as GetMaxFrameSize() value.
[out]	dataSize	The size of data copyied to data buffer. This value is not checked when copying to data buffer, that why you has to check it before calling this function using GetCurrentFrameSize() method.
	moveToNext	True when splitter has to move to another frame after splitting. When you want to use it, it is recommended to use moveToNext() method.

Returns: Returns true when frame was splitted.

◆ SplitNew() [1/2]

bool MeshPacketSplitter::SplitNew	(	const MeshPacket &	packet,
		MeshMAC	bssid,
		uint8_t	maxFrameSize_
	)

Starts splitting new packet to frames, this has to be called first before splitting.

Parameters

packet Packet, that has to be splitted. This packed is copyied.

Note: When packet can be destroyed after calling this method, it is recommended to call SplitNewMove(), because it will be more efficient.

Parameters

bssid	BSSID, that has to be inserted to each frame header.
maxFrameSize_	Maximum size of frames. Can be set from MESH_FRAME_SIZE_MIN_LIMIT to MESH_FRAME_SIZE_LIMIT.

Returns: Returns true when splitting started and no error happened.

◆ SplitNew() [2/2]

bool MeshPacketSplitter::SplitNew	(	MeshPacket &&	packet,
		MeshMAC	bssid,
		uint8_t	maxFrameSize_
	)

Starts splitting new packet to frames, this has to be called first before splitting.

Parameters

packet Packet, that has to be splitted. This packed is moved, to class memory.

Note: Packet is not copyied as using SplitNew() method, but it is moved. Moving is more efficient than copying, because allocation is not needed. The disadvantage of moving is, that MeshPacket that was inserted will be destroyed.

Parameters

bssid	BSSID, that has to be inserted to each frame header.
maxFrameSize_	Maximum size of frames. Can be set from MESH_FRAME_SIZE_MIN_LIMIT to MESH_FRAME_SIZE_LIMIT.

Returns: Returns true when splitting started and no error happened.

◆ SplitNewMove()

bool MeshPacketSplitter::SplitNewMove	(	MeshPacket &	packet,
		MeshMAC	bssid,
		uint8_t	maxFrameSize_
	)

Starts splitting new packet to frames, this has to be called first before splitting.

Parameters

packet Packet, that has to be splitted. This packed is moved, to class memory.

Note: Packet is not copyied as using SplitNew() method, but it is moved. Moving is more efficient than copying, because allocation is not needed. The disadvantage of moving is, that MeshPacket that was inserted will be destroyed.

Parameters

bssid	BSSID, that has to be inserted to each frame header.
maxFrameSize_	Maximum size of frames. Can be set from MESH_FRAME_SIZE_MIN_LIMIT to MESH_FRAME_SIZE_LIMIT.

Returns: Returns true when splitting started and no error happened.

◆ SplitNextAsFrame()

MeshFrame MeshPacketSplitter::SplitNextAsFrame ( )

inline

Splits current frame and moves to another.

Note: Always check before calling this method, if there are remaining frames using GetRemainingFramesCount() method.

Returns: Returns splitted frame as MeshFrame.

◆ SplitNextAsFrameHeaderAndData()

bool MeshPacketSplitter::SplitNextAsFrameHeaderAndData	(	MeshFrameHeader &	header,
		uint8_t *	data,
		uint8_t &	dataSize
	)

inline

Splits current frame and moves to another.

Note: Always check before calling this method, if there are remaining frames using GetRemainingFramesCount() method.

Parameters

[out]	header	Header of frame, that was splitted.
[out]	data	Buffer reserved for data from splitted frame. Size of this buffer has to be minimally same as GetCurrentFrameDataSize() value.
[out]	dataSize	The size of data copyied to data buffer. This value is not checked when copying to data buffer, that why you has to check it before calling this function using GetCurrentFrameDataSize() method.

Returns: Returns true when frame was splitted.

◆ SplitNextAsFrameRawData()

bool MeshPacketSplitter::SplitNextAsFrameRawData	(	uint8_t *	rawData,
		uint8_t &	dataSize
	)

inline

Splits current frame and moves to another.

Note: Always check before calling this method, if there are remaining frames using GetRemainingFramesCount() method.

Parameters

[out]	header	Header of frame, that was splitted.
[out]	rawData	Buffer reserved for data, from which the frame can be created. Size of this buffer has to be minimally same as GetMaxFrameSize() value.
[out]	dataSize	The size of data copyied to data buffer. This value is not checked when copying to data buffer, that why you has to check it before calling this function using GetCurrentFrameSize() method.

Returns: Returns true when frame was splitted.

◆ TakeSplittedPacket()

MeshPacket && MeshPacketSplitter::TakeSplittedPacket ( )

Takes packet, that was splitted and calls clear method.

Note: Move constructor is called, so packet will not be copyied in memory.; Valid packet is returned only when splitting started.

Field Documentation

◆ carriageFrameCount

uint8_t MeshPacketSplitter::carriageFrameCount = 0

protected

◆ lastBSSID

MeshMAC MeshPacketSplitter::lastBSSID

protected

◆ lastCarriageFrameDataSize

uint8_t MeshPacketSplitter::lastCarriageFrameDataSize = 0

protected

◆ lastHeader

MeshFrameHeader MeshPacketSplitter::lastHeader

protected

◆ maxFrameSize

uint8_t MeshPacketSplitter::maxFrameSize = 32

protected

◆ remainingCarriageCount

uint8_t MeshPacketSplitter::remainingCarriageCount = 0

protected

◆ sPacket

MeshPacket MeshPacketSplitter::sPacket

protected

◆ splitDataPos

uint8_t MeshPacketSplitter::splitDataPos = 0

protected

The documentation for this class was generated from the following files:

Mesh/Inc/meshPacketSplitter.h
Mesh/Src/meshPacketSplitter.cpp

Public Member Functions

Protected Attributes

Detailed Description

Carriage

Worst case performance

Member Function Documentation

◆ Clear()

◆ GetCurrentFrameDataSize()

◆ GetCurrentFrameIndex()

◆ GetCurrentFrameSize()

◆ GetFrameDataSize()

◆ GetFramesCount()

◆ GetFrameSize()

◆ GetLastCarriageFrameSize()

◆ GetMaxFrameSize()

◆ GetRemainingFramesCount()

◆ GetSplittedPacket()

◆ Restart() [1/4]

◆ Restart() [2/4]

◆ Restart() [3/4]

◆ Restart() [4/4]

◆ Seek()

◆ SeekToEnd()

◆ SeekToNext()

◆ SplitCurrentAsFrame()

◆ SplitCurrentAsFrameHeaderAndData()

◆ SplitCurrentAsFrameRawData()

◆ SplitNew() [1/2]

◆ SplitNew() [2/2]

◆ SplitNewMove()

◆ SplitNextAsFrame()

◆ SplitNextAsFrameHeaderAndData()

◆ SplitNextAsFrameRawData()

◆ TakeSplittedPacket()

Field Documentation

◆ carriageFrameCount

◆ lastBSSID

◆ lastCarriageFrameDataSize

◆ lastHeader

◆ maxFrameSize

◆ remainingCarriageCount

◆ sPacket

◆ splitDataPos
