This file contains class which can concatinate packet splitted to frames back to packet. More...

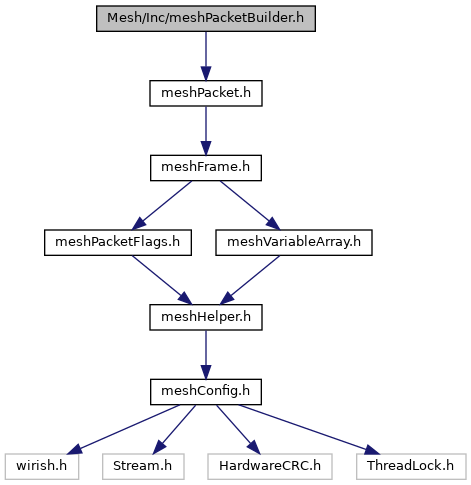

#include "meshPacket.h"
Go to the source code of this file.
Data Structures | |
| class | MeshPacketBuilder |
| This class can build packet from multiple frames. It is usually used to concatinate data from packet, that was splitted into multiple frames in carriage, because of packet size. This class also checks if frame needs to be built (if is not carriage frame, so packet is not splitted) and converts this frame to packet. More... | |
| struct | MeshACKSetup |
| Structure, which has data, that are needed for ACK packet creation. More... | |
Enumerations | |
| enum | MeshPacketBuilderStatus : int8_t { MPB_None = 0, MPB_FullPacketOK = 1, MPB_PartPacketOK = 2, MPB_Ignored = 3, MPB_SameFrameReceived = -1, MPB_InvalidFrameError = -2, MPB_FrameSizeExceededError = -3, MPB_FrameOrderError = -4, MPB_FrameHeaderMissingError = -5, MPB_InvalidPacketError = -6, MPB_PayloadSizeExceededError = -7, MPB_AllocationError = -8, MPB_PacketIntegrityError = -9 } |
| Mesh packet builder status. More... | |
Detailed Description
This file contains class which can concatinate packet splitted to frames back to packet.
Credits
- Date
- Jan 4, 2022
- See also
- MeshPacketBuilder
- MeshACKSetup
Enumeration Type Documentation
◆ MeshPacketBuilderStatus
| enum MeshPacketBuilderStatus : int8_t |
Mesh packet builder status.
- See also
- MeshPacketBuilder
- meshPacketBuilder.h
| Enumerator | |
|---|---|
| MPB_None | No action was done yet. |
| MPB_FullPacketOK | Full packet was built and is ready to use. |
| MPB_PartPacketOK | Part of packet (frame from carriage) was appended. |
| MPB_Ignored | Packet frame was ignored. |
| MPB_SameFrameReceived | WARNING: Same frame from carriage was received multiple times. This may happened, when ACK was not received correctly and transmitting node has resent same frame. This error has to be solved by sending ACK. |
| MPB_InvalidFrameError | ERROR: Invalid frame appended and will be ignored. This may happened, when frame was corrupted. |
| MPB_FrameSizeExceededError | ERROR: Frame size exceeded and will be ignored. This may happened, when frame is larger then maximum frame size set using SetMaxFrameSize() method or when frame from carriage is larger than carriage header frame. This may be solved by sending some error response, where will be specified max frame size.
|
| MPB_FrameOrderError | ERROR: Appended frame from carriage, that was not expected yet. Frame will be ignored. This may happened, when some frame from carriage, that was expected was skipped and next frame from that carriage was appended. This can be repaired by sending some error response, which says to transmitter to resend frame, that was expected. |
| MPB_FrameHeaderMissingError | ERROR: Appended frame from carriage, but frame header is missing. Frame will be ignored. This may happened, when header frame from carriage was not received, but next frame from that carriage was received or when packet was ignored, but transmitter keeps sending frames of ignored packet. It is not recommended to solving this error, because by sending some error response to transmitter, because usually the ignored messages does not belongs to current received.
|
| MPB_InvalidPacketError | ERROR: Invalid packet appended and packet will be ignored. This may happened, when system packet was received, but system packet type field is missing. Or when ACK was received and was splitted to multiple frames, which is foridden. |
| MPB_PayloadSizeExceededError | FATAL ERROR: Payload size exceeded and whole packet will be discarded. This may happened, when corrupted header frame was received. This error protects MCU memory from large memory space allocation. Maximum payload size is set in macro: MESH_PACKET_PAYLOAD_SIZE_LIMIT. |
| MPB_AllocationError | FATAL ERROR: Cannot allocate space for pacet payload, whole packet will be discarded. This may happened, when heap memory is full. It is recommended to send smaller packets. |
| MPB_PacketIntegrityError | ERROR: Packet integrity check failed. Some frame from carriage was corupted.
|
