#include "wirish.h"

Include dependency graph for wirish.cpp:

Classes
struct	IRQLine

Macros
#define	NUM_IRQ_LINES (sizeof(irqlines) / sizeof(IRQLine))

Functions
bool	pinExists (GPIO_TypeDef *GPIOx, uint16_t PPin)
	Checks if pin is available on MCU. More...

bool	pinExists (uint8_t Pin)
	Checks if pin is available on MCU. More...

uint8_t	PortAndPinToPinNum (GPIO_TypeDef *GPIOx, uint16_t PPin)
	Converts GPIOx port and it's pin to Arduino like pin number. More...

uint8_t	pinMode (GPIO_TypeDef *GPIOx, uint16_t PPin, WiringPinMode mode, uint32_t speed)
	Sets mode of selected pin. More...

bool	enableGPIO (GPIO_TypeDef *GPIOx, bool enable)
	Enables/Disables GPIO port periphery. More...

uint8_t	pinMode (uint8_t Pin, WiringPinMode mode, uint32_t speed)
	Sets mode of selected pin. More...

bool	canSetInterruptOnPin (uint8_t Pin)
	Checks if EXTI line, that belongs to Pin is not used by other pin's interrupt. More...

GPIO_TypeDef *	getInterruptGPIOfromPin (uint16_t Pin)
	Gets, what GPIO is attached to EXTI line, that belongs to PPin. More...

bool	isInterruptSetOnPin (uint8_t Pin)
	Checks Pin is used as interrupt. More...

uint32_t	getPinPullSetting (GPIO_TypeDef *GPIOx, uint8_t INTPin)
	This function should return actual pin pull setting (GPIO_NOPULL, GPIO_PULLUP, GPIO_PULLDOWN) More...

uint32_t	getPinSpeedSetting (GPIO_TypeDef *GPIOx, uint8_t INTPin)
	This should return actual pin toggle speed setting. More...

int8_t	attachInterrupt (uint8_t Pin, std::function< void(void)> handler, int mode)
	Attaches interrupt to selected pin. More...

int8_t	detachInterrupt (uint8_t Pin, bool disableEXTIwhenNotUsed)
	Detaches interrupt from selected pin and sets pin mode to INPUT. More...

void	InterruptHandler (uint8_t lineFrom, uint8_t lineTo)
	Include this in every EXTI interrupt handler for lines 0-15. More...

bool	WirishInit (void)
	Initializes some wirish functions. More...

void	__attribute__ ((optimize("Ofast"))) delayMicroseconds(int32_t microseconds)

unsigned long	random (unsigned long from, unsigned long to)
	The random function generates pseudo-random numbers. More...

unsigned long	random (unsigned long to)
	The random function generates pseudo-random numbers. More...

void	randomSeed (unsigned long seed)
	Initializes the pseudo-random number generator, causing it to start at an arbitrary point in its random sequence. More...

const char *	getResetCauseName ()
	Gets the system reset cause as an ASCII-printable name string from a reset cause type. More...

Variables
GPIO_TypeDef *	GPIO_Conversion_Table []

IRQLine	irqlines []

bool	WirishInitDone = true

unsigned long	_Randomseed = 1

ResetCause	rst_cs = reset_cause_read()

Macro Definition Documentation

◆ NUM_IRQ_LINES

#define NUM_IRQ_LINES (sizeof(irqlines) / sizeof(IRQLine))

Function Documentation

◆ pinExists() [1/2]

bool pinExists	(	GPIO_TypeDef *	GPIOx,
		uint16_t	PPin
	)

Checks if pin is available on MCU.

Parameters

GPIOx	GPIO port periphery.
PPin	Pin of that port to convert (GPIO_PIN_0, GPIO_PIN_1, ...). Do not use combined pins (e.g. GPIO_PIN_0 \| GPIO_PIN_1)

Returns: Returns true if pin is available on MCU.

◆ pinExists() [2/2]

bool pinExists ( uint8_t Pin )

Checks if pin is available on MCU.

Parameters

Pin	Arduino like pin number.

Returns: Returns true if pin is available on MCU.

Here is the call graph for this function:

◆ PortAndPinToPinNum()

uint8_t PortAndPinToPinNum	(	GPIO_TypeDef *	GPIOx,
		uint16_t	PPin
	)

Converts GPIOx port and it's pin to Arduino like pin number.

Parameters

GPIOx	GPIO port.
PPin	Pin of that port to convert (GPIO_PIN_0, GPIO_PIN_1, ...). Do not use combined pins (e.g. GPIO_PIN_0 \| GPIO_PIN_1)

Returns: Returns Arduino like pin number (Pin).

◆ pinMode() [1/2]

uint8_t pinMode	(	GPIO_TypeDef *	GPIOx,
		uint16_t	PPin,
		WiringPinMode	mode,
		uint32_t	speed
	)

Sets mode of selected pin.

Parameters

GPIOx	GPIO port.
PPin	Pin of that port (GPIO_PIN_0, GPIO_PIN_1, ...).
mode	Pin mode that will be set.

See also: WiringPinMode

Parameters

speed Toggle speed of pin. Available values: GPIO_SPEED_FREQ_LOW, GPIO_SPEED_FREQ_MEDIUM, GPIO_SPEED_FREQ_HIGH, GPIO_SPEED_FREQ_VERY_HIGH (only some MCUs supports this speed setting))

Returns: W_OK when pin is successfully set.

Here is the call graph for this function:

◆ enableGPIO()

bool enableGPIO	(	GPIO_TypeDef *	GPIOx,
		bool	enable
	)

Enables/Disables GPIO port periphery.

Parameters

GPIOx	GPIO port periphery.
enable	If true, periphery will be enabled, else disabled.

Returns: Returns true when GPIO periphery was enabled successfully.

◆ pinMode() [2/2]

uint8_t pinMode	(	uint8_t	Pin,
		WiringPinMode	mode,
		uint32_t	speed
	)

Sets mode of selected pin.

Parameters

Pin	Arduino like pin number.
mode	Pin mode that will be set.

See also: WiringPinMode

Parameters

speed Toggle speed of pin. Available values: GPIO_SPEED_FREQ_LOW, GPIO_SPEED_FREQ_MEDIUM, GPIO_SPEED_FREQ_HIGH, GPIO_SPEED_FREQ_VERY_HIGH (only some MCUs supports this speed setting))

Returns: W_OK when pin is successfully set.

Here is the call graph for this function:

◆ canSetInterruptOnPin()

bool canSetInterruptOnPin ( uint8_t Pin )

Checks if EXTI line, that belongs to Pin is not used by other pin's interrupt.

Parameters

Pin	Arduino like pin number.

Returns: Returns true if you can set interrupt on Pin.

Here is the call graph for this function:

◆ getInterruptGPIOfromPin()

GPIO_TypeDef* getInterruptGPIOfromPin ( uint16_t Pin )

Gets, what GPIO is attached to EXTI line, that belongs to PPin.

Parameters

Pin	Arduino like pin number.

Returns: Returns pointer to GPIO_TypeDef which is attached to EXTI line, that belongs to PPin. It can return NULL when no interrupt is attached at EXTI line, that belongs to PPin.

◆ isInterruptSetOnPin()

bool isInterruptSetOnPin ( uint8_t Pin )

Checks Pin is used as interrupt.

Parameters

Pin	Arduino like pin number.

Returns: Returns true Pin is used as interrupt.

Note: This function looks same as negation of canSetInterruptOnPin(), but there is big difference. Assume we have attached interrupt on pin PA1:
//GPIOA

bool val = !canSetInterruptOnPin(PA1) // val == true

bool val = isInterruptSetOnPin(PA1) // val == true

//GPIOB

bool val = !canSetInterruptOnPin(PB1) // val == true

bool val = isInterruptSetOnPin(PB1) // val == false

Here is the call graph for this function:

◆ getPinPullSetting()

uint32_t getPinPullSetting	(	GPIO_TypeDef *	GPIOx,
		uint8_t	INTPin
	)

This function should return actual pin pull setting (GPIO_NOPULL, GPIO_PULLUP, GPIO_PULLDOWN)

Parameters

GPIOx	GPIO port.
INTPin	Interrupt pin number (0-15).

Note: On some MCUs, when pin mode is set to OUTPUT, pull register is cleared and this method returns always GPIO_NOPULL.

Returns: Actual pin pull setting (GPIO_NOPULL, GPIO_PULLUP, GPIO_PULLDOWN).

◆ getPinSpeedSetting()

uint32_t getPinSpeedSetting	(	GPIO_TypeDef *	GPIOx,
		uint8_t	INTPin
	)

This should return actual pin toggle speed setting.

Parameters

GPIOx	GPIO port.
INTPin	Interrupt pin number (0-15).

Note: On some MCUs, when pin mode is set to INPUT, speed register is cleared and this method returns always GPIO_SPEED_FREQ_LOW.

Returns: Actual pin toggle speed setting.

◆ attachInterrupt()

int8_t attachInterrupt	(	uint8_t	Pin,
		std::function< void(void)>	,
		int	mode
	)

Attaches interrupt to selected pin.

Parameters

Pin	Arduino like pin.
handler	Function, that will be called when interrupt is triggered.
mode	Mode of interrupt (RISING, FALLING, CHANGE).

Note: Every STM MCU has only 16 EXTI lines. Every line is connected to pins with same PPin number on every GPIO. It means, you cannot attach interrupt to pin PA1 and PB1 at same time. You have to choose another pin, for example PB2 or PA2.; When you attach interrupt on some pin, it will be set to INPUT mode automatically.

Returns: W_OK when interrupt was attached successfully.

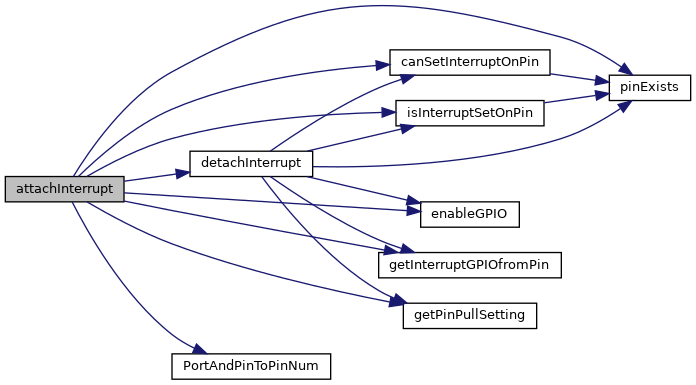

Here is the call graph for this function:

◆ detachInterrupt()

int8_t detachInterrupt	(	uint8_t	Pin,
		bool	disableEXTIwhenNotUsed = `false`
	)

Detaches interrupt from selected pin and sets pin mode to INPUT.

Parameters

Pin	Arduino like pin number.
disableEXTIwhenNotUsed	True if you want to disable group of EXTI lines when they are not used yet. It can save energy, but it can also disable GPIO interrupt, that is set using .ioc file.

Note: When you detach interrupt on some pin, it will be set to INPUT mode automatically.

Returns: W_OK when interrupt was detached successfully.

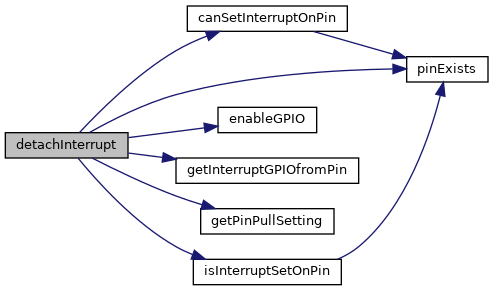

Here is the call graph for this function:

◆ InterruptHandler()

void InterruptHandler	(	uint8_t	lineFrom,
		uint8_t	lineTo
	)

Include this in every EXTI interrupt handler for lines 0-15.

Parameters

lineFrom	Specify first handler line
lineTo	Specify last handler line

See also: interrupt.h

◆ WirishInit()

bool WirishInit ( void )

Initializes some wirish functions.

Note: This method is automatically called before main method, so you don't have to include it in your program.

Returns: Returns true when initialization was done correctly.

◆ attribute()

void __attribute__ ( (optimize("Ofast")) )

◆ random() [1/2]

unsigned long random	(	unsigned long	from,
		unsigned long	to
	)

The random function generates pseudo-random numbers.

Parameters

from	Lower bound of the random value, inclusive (optional).
to	Upper bound of the random value, exclusive.

Returns: A random number between from and to-1 or professionally said random number in interval <from,to).

◆ random() [2/2]

unsigned long random ( unsigned long to )

The random function generates pseudo-random numbers.

Parameters

to	Upper bound of the random value, exclusive.

Returns: A random number between 0 and to-1 or professionally said random number in interval <0,to).

Here is the call graph for this function:

◆ randomSeed()

void randomSeed ( unsigned long seed )

Initializes the pseudo-random number generator, causing it to start at an arbitrary point in its random sequence.

This sequence, while very long, and random, is always the same.

Parameters

seed	Number to initialize the pseudo-random sequence.

◆ getResetCauseName()

const char* getResetCauseName ( )

Gets the system reset cause as an ASCII-printable name string from a reset cause type.

Parameters

reset_cause The previously-obtained system reset cause

Returns: A null-terminated ASCII name string describing the system reset cause

Variable Documentation

◆ GPIO_Conversion_Table

GPIO_TypeDef* GPIO_Conversion_Table[]

◆ irqlines

IRQLine irqlines[]

◆ WirishInitDone

bool WirishInitDone = true

◆ _Randomseed

unsigned long _Randomseed = 1

◆ rst_cs

ResetCause rst_cs = reset_cause_read()
