Methods for data transaction. More...

Functions
virtual uint16_t	HardwareSPI::transfer (uint16_t data, bool lastByte=false)
	SPI transfer is based on a simultaneous send and receive data. More...

virtual uint16_t	HardwareSPI::transfer16 (uint16_t data, bool lastByte=false)
	SPI transfer is based on a simultaneous send and receive data. More...

virtual uint32_t	HardwareSPI::transfer32 (uint32_t data, bool lastByte=false)
	SPI transfer is based on a simultaneous send and receive data. More...

virtual bool	HardwareSPI::transfer (void *buf, uint16_t count, bool lastByte=false)
	SPI transfer is based on a simultaneous send and receive data. More...

virtual bool	HardwareSPI::write (uint16_t data, bool lastByte=false)
	Sends data using SPI periphery. More...

virtual bool	HardwareSPI::write16 (uint16_t data, bool lastByte=false)
	Sends data using SPI periphery. More...

virtual bool	HardwareSPI::write32 (uint32_t data, bool lastByte=false)
	Sends data using SPI periphery. More...

virtual uint16_t	HardwareSPI::receive (bool lastByte=false)
	Receives data from SPI periphery. More...

virtual uint16_t	HardwareSPI::receive16 (bool lastByte=false)
	Receives data from SPI periphery. More...

virtual uint32_t	HardwareSPI::receive32 (bool lastByte=false)
	Receives data from SPI periphery. More...

virtual bool	HardwareSPI::writeBytes (const uint8_t *data, uint32_t size, bool lastByte=false)
	Sends data using SPI periphery in blocking mode. More...

virtual bool	HardwareSPI::writeBytesNonBlocking (const uint8_t *data, uint32_t size, bool lastByte=false)
	Sends data using SPI periphery using DMA or IT (interrupt) mode. More...

virtual bool	HardwareSPI::transferBytes (const uint8_t out, uint8_t in, uint32_t size, bool lastByte=false)
	Transfers data using SPI periphery in blocking mode, it is sending and receiving data simultaneously. More...

virtual bool	HardwareSPI::transferBytesNonBlocking (const uint8_t out, uint8_t in, uint32_t size, bool lastByte=false)
	Transfers data using SPI periphery using DMA or IT (interrupt) mode, it is sending and receiving data simultaneously. More...

virtual bool	HardwareSPI::receiveBytes (uint8_t *data, uint32_t size, bool lastByte=false)
	Receives data from SPI periphery in blocking mode. More...

virtual bool	HardwareSPI::receiveBytesNonBlocking (uint8_t *data, uint32_t size, bool lastByte=false)
	Receives data from SPI periphery in non-blocking mode using DMA or IT (interrupt) mode. More...

Detailed Description

Methods for data transaction.

Three types of transaction methods

One word methods
- Those methods can transact only one 8-bit, 16-bit and two 16-bits acting like one 32-bit.
- Main disadvantage is, that they are significantly slower than Array methods when using HardwareSPI class.
- Methods: transfer(), transfer16(), transfer32(), write(), write16(), write32(), receive(), receive16(), receive32()
Array methods
- Those methods can transact whole array splitted to 8-bit or 16-bit words (depends on setting setDataBits()) in polling mode.
- As fast as possible.
- Methods: transfer(void*, uint16_t, bool), transferBytes(), writeBytes(), receiveBytes()
NonBlocking methods
- Those methods can transact whole array splitted to 8-bit or 16-bit words (depends on setting setDataBits()) in non-blocking mode using DMA or IT(interrupts).
- As fast as possible, without blocking processor.
- Methods: transferBytesNonBlocking(), writeBytesNonBlocking(), receiveBytesNonBlocking()

See also: Optimized transaction methods

Function Documentation

◆ transfer() [1/2]

uint16_t HardwareSPI::transfer	(	uint16_t	data,
		bool	lastByte = `false`
	)

virtual

SPI transfer is based on a simultaneous send and receive data.

Parameters

data	8-bit data to send. When data size (using setDataBits()) is set to 16 bits, 16-bit data are sent.
lastByte	Unused in HardwareSPI.

Note: When you have changed bit order to MSBFIRST, not only bits, but also bytes will be swapped.

Returns: Returns received 8-bit (or when data size is set to 16, then 16-bit) data.

Reimplemented in HardwareSPI_O.

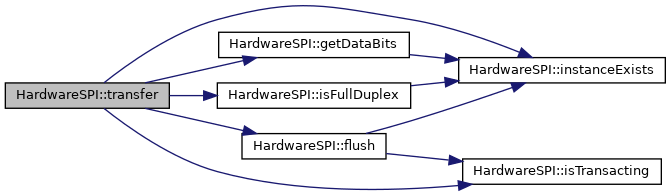

Here is the call graph for this function:

◆ transfer16()

uint16_t HardwareSPI::transfer16	(	uint16_t	data,
		bool	lastByte = `false`
	)

virtual

SPI transfer is based on a simultaneous send and receive data.

Parameters

data	16-bit data to send.
lastByte	Unused in HardwareSPI.

Note: When you have changed bit order to MSBFIRST, not only bits, but also bytes will be swapped.

Returns: Returns received 16-bit data.

Reimplemented in HardwareSPI_O.

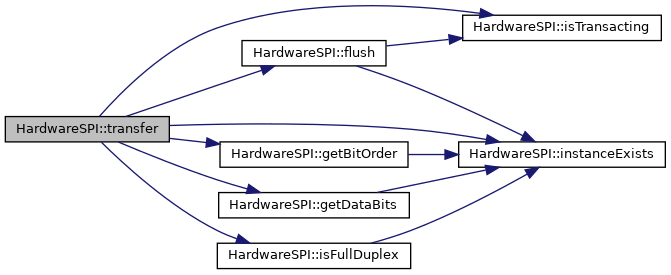

Here is the call graph for this function:

◆ transfer32()

uint32_t HardwareSPI::transfer32	(	uint32_t	data,
		bool	lastByte = `false`
	)

virtual

SPI transfer is based on a simultaneous send and receive data.

Parameters

data	32-bit data to send.
lastByte	Unused in HardwareSPI.

Note: When you have changed bit order to MSBFIRST, not only bits, but also bytes will be swapped.

Returns: Returns received 32-bit data.

Reimplemented in HardwareSPI_O.

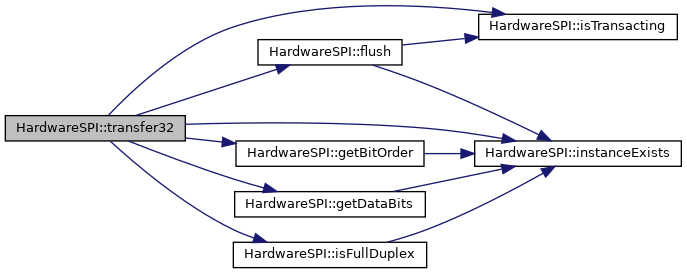

Here is the call graph for this function:

◆ transfer() [2/2]

bool HardwareSPI::transfer	(	void *	buf,
		uint16_t	count,
		bool	lastByte = `false`
	)

virtual

SPI transfer is based on a simultaneous send and receive data.

Data are transfered in blocking mode.

Parameters

buf	Pointer to data, that have to be sent in blocking mode.
count	The size of data in bytes (8-bits). If you are sending whole array uint32_t[5], the count parameter have to be set to 4*5 = 20.
lastByte	Unused in HardwareSPI.

Note: When you have changed bit order to MSBFIRST, only bits will be swapped. Bytes will be sent from array begin also in MSBFIST mode.; When data size (using setDataBits()) is set to 16 and count value is odd, the real count will be then count+1 and the last byte will contain random value.

Returns: Returns received 32-bit data.

Reimplemented in HardwareSPI_O.

Here is the call graph for this function:

◆ write()

bool HardwareSPI::write	(	uint16_t	data,
		bool	lastByte = `false`
	)

virtual

Sends data using SPI periphery.

If any data was received, they will be discarded. This method is faster than transfer method.

Parameters

data	8-bit data to send. When data size (using setDataBits()) is set to 16 bits, 16-bit data are sent.
lastByte	Unused in HardwareSPI.

Note: When you have changed bit order to MSBFIRST, not only bits, but also bytes will be swapped.

Returns: Returns true when data has been written.

Reimplemented in HardwareSPI_O.

Here is the call graph for this function:

◆ write16()

bool HardwareSPI::write16	(	uint16_t	data,
		bool	lastByte = `false`
	)

virtual

Sends data using SPI periphery.

If any data was received, they will be discarded. This method is faster than transfer method. data 16-bit data to send.

Parameters

lastByte Unused in HardwareSPI.

Note: When you have changed bit order to MSBFIRST, not only bits, but also bytes will be swapped.

Returns: Returns true when data has been written.

Reimplemented in HardwareSPI_O.

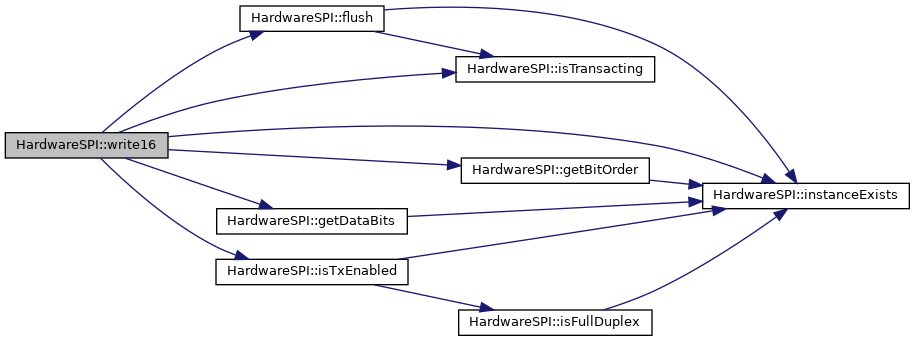

Here is the call graph for this function:

◆ write32()

bool HardwareSPI::write32	(	uint32_t	data,
		bool	lastByte = `false`
	)

virtual

Sends data using SPI periphery.

If any data was received, they will be discarded. This method is faster than transfer method. data 32-bit data to send.

Parameters

lastByte Unused in HardwareSPI.

Note: When you have changed bit order to MSBFIRST, not only bits, but also bytes will be swapped.

Returns: Returns true when data has been written.

Reimplemented in HardwareSPI_O.

Here is the call graph for this function:

◆ receive()

uint16_t HardwareSPI::receive ( bool lastByte = false )

virtual

Receives data from SPI periphery.

During receiving zeros will be sent when mode is set to Master. It is recommended to use available() method to check, if any data are available in FIFO buffer, else this method will wait until timeout or until receiving data. To check, if timeout elapsed, use lastTransactionStatus() method.

Parameters

lastByte Unused in HardwareSPI.

Note: When you have changed bit order to MSBFIRST, not only bits, but also bytes will be swapped.

Returns: Returns received 8-bit (or when data size is set to 16, then 16-bit) data.

Reimplemented in HardwareSPI_O.

Here is the call graph for this function:

◆ receive16()

uint16_t HardwareSPI::receive16 ( bool lastByte = false )

virtual

Receives data from SPI periphery.

During receiving zeros will be sent when mode is set to Master. It is recommended to use available() method to check, if any data are available in FIFO buffer, else this method will wait until timeout or until receiving data. To check, if timeout elapsed, use lastTransactionStatus() method.

Parameters

lastByte Unused in HardwareSPI.

Note: When you have changed bit order to MSBFIRST, not only bits, but also bytes will be swapped.

Returns: Returns received 16-bit data.

Reimplemented in HardwareSPI_O.

Here is the call graph for this function:

◆ receive32()

uint32_t HardwareSPI::receive32 ( bool lastByte = false )

virtual

Receives data from SPI periphery.

During receiving zeros will be sent when mode is set to Master. It is recommended to use available() method to check, if any data are available in FIFO buffer, else this method will wait until timeout or until receiving data. To check, if timeout elapsed, use lastTransactionStatus() method.

Parameters

lastByte Unused in HardwareSPI.

Note: When you have changed bit order to MSBFIRST, not only bits, but also bytes will be swapped.

Returns: Returns received 32-bit data.

Reimplemented in HardwareSPI_O.

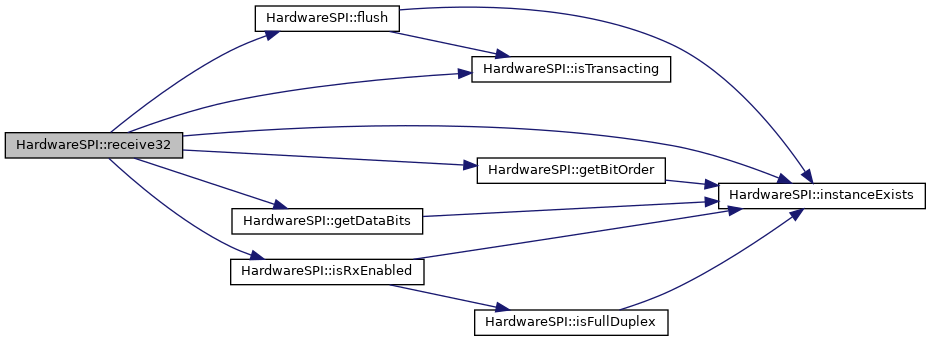

Here is the call graph for this function:

◆ writeBytes()

bool HardwareSPI::writeBytes	(	const uint8_t *	data,
		uint32_t	size,
		bool	lastByte = `false`
	)

virtual

Sends data using SPI periphery in blocking mode.

If any data was received, they will be discarded. This method is faster than transfer method.

Parameters

data	Pointer to data, that have to be sent in blocking mode.
size	The size of data in bytes (8-bits).
lastByte	Unused in HardwareSPI.

Note: When you have changed bit order to MSBFIRST, only bits will be swapped. Bytes will be sent from array begin also in MSBFIST mode.; When data size (using setDataBits()) is set to 16 and count value is odd, the real count will be then count+1 and the last byte will contain random value.

Returns: Returns true when data has been written.

Reimplemented in HardwareSPI_O.

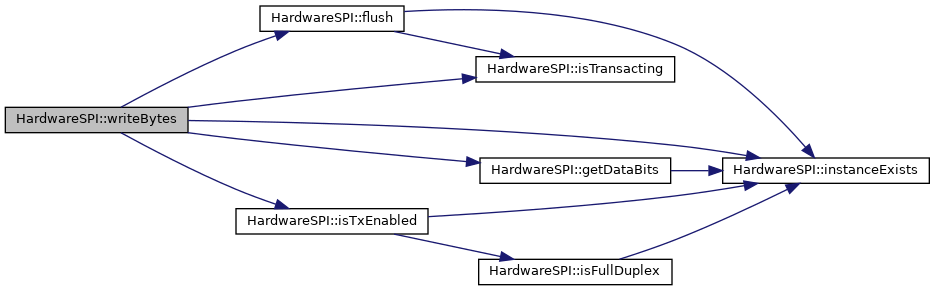

Here is the call graph for this function:

◆ writeBytesNonBlocking()

bool HardwareSPI::writeBytesNonBlocking	(	const uint8_t *	data,
		uint32_t	size,
		bool	lastByte = `false`
	)

virtual

Sends data using SPI periphery using DMA or IT (interrupt) mode.

If any data was received, they will be discarded. This method is faster than transfer method.

Parameters

data	Pointer to data, that have to be sent in non-blocking mode.
size	The size of data in bytes (8-bits).
lastByte	Unused in HardwareSPI.

Note: When you have changed bit order to MSBFIRST, only bits will be swapped. Bytes will be sent from array begin also in MSBFIST mode.; When data size (using setDataBits()) is set to 16 and count value is odd, the real count will be then count+1 and the last byte will contain random value.

Warning: Data have to be available on same pointer until they are sent.

Returns: Returns true when data has been written.

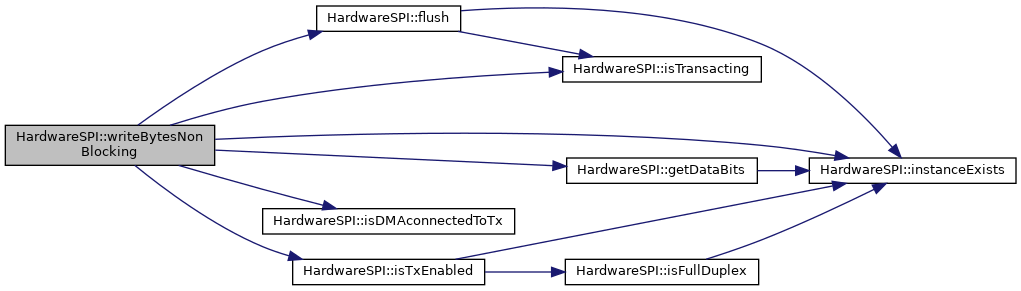

Here is the call graph for this function:

◆ transferBytes()

bool HardwareSPI::transferBytes	(	const uint8_t *	out,
		uint8_t *	in,
		uint32_t	size,
		bool	lastByte = `false`
	)

virtual

Transfers data using SPI periphery in blocking mode, it is sending and receiving data simultaneously.

Parameters

out	Pointer to data, that have to be sent in blocking mode.
in	Pointer to array, where will be stored received data. It can also pointing same address as out parameter without any error.
size	The size of data in bytes (8-bits). Out and in parameter must have same size.
lastByte	Unused in HardwareSPI.

Note: When you have changed bit order to MSBFIRST, only bits will be swapped. Bytes will be sent from array begin also in MSBFIST mode.; When data size (using setDataBits()) is set to 16 and count value is odd, the real count will be then count+1 and the last byte will contain random value.

Returns: Returns true when data has been transfered.

Reimplemented in HardwareSPI_O.

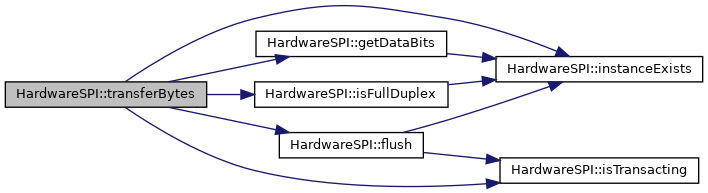

Here is the call graph for this function:

◆ transferBytesNonBlocking()

bool HardwareSPI::transferBytesNonBlocking	(	const uint8_t *	out,
		uint8_t *	in,
		uint32_t	size,
		bool	lastByte = `false`
	)

virtual

Transfers data using SPI periphery using DMA or IT (interrupt) mode, it is sending and receiving data simultaneously.

Parameters

out	Pointer to data, that have to be sent in non-blocking mode.
in	Pointer to array, where will be stored received data. It can also pointing same address as out parameter without any error.
size	The size of data in bytes (8-bits). Out and in parameter must have same size.
lastByte	Unused in HardwareSPI.

Note: When you have changed bit order to MSBFIRST, only bits will be swapped. Bytes will be sent from array begin also in MSBFIST mode.; When data size (using setDataBits()) is set to 16 and count value is odd, the real count will be then count+1 and the last byte will contain random value.

Warning: Out and In data have to be available on same pointer until they are transfered.

Returns: Returns true when data has been transfered.

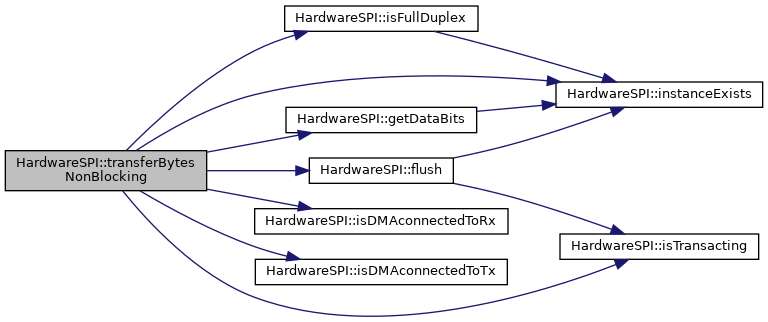

Here is the call graph for this function:

◆ receiveBytes()

bool HardwareSPI::receiveBytes	(	uint8_t *	data,
		uint32_t	size,
		bool	lastByte = `false`
	)

virtual

Receives data from SPI periphery in blocking mode.

During receiving zeros will be sent when mode is set to Master. It is recommended to use available() method to check, if any data are available in FIFO buffer, else this method will wait until timeout or until receiving data. To check, if timeout elapsed, use lastTransactionStatus() method.

Parameters

data	Pointer to array, where will be stored received data.
size	The size of data in bytes (8-bits).
lastByte	Unused in HardwareSPI.

Note: When you have changed bit order to MSBFIRST, only bits will be swapped. Bytes will be sent from array begin also in MSBFIST mode.

Returns: Returns true when data has been received.

Reimplemented in HardwareSPI_O.

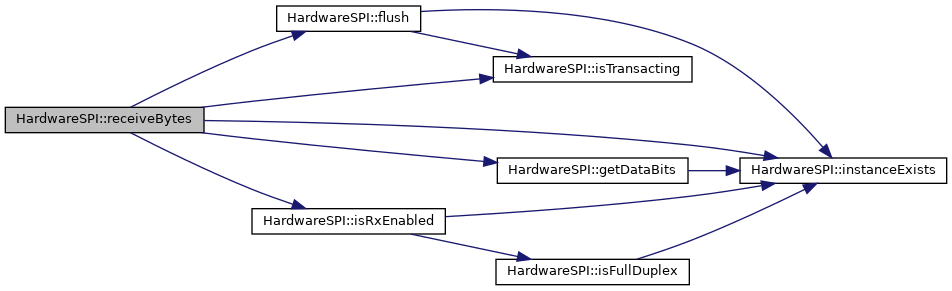

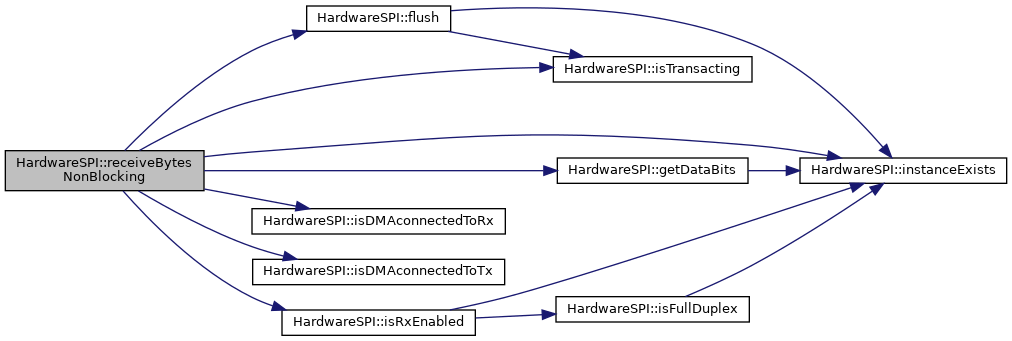

Here is the call graph for this function:

◆ receiveBytesNonBlocking()

bool HardwareSPI::receiveBytesNonBlocking	(	uint8_t *	data,
		uint32_t	size,
		bool	lastByte = `false`
	)

virtual

Receives data from SPI periphery in non-blocking mode using DMA or IT (interrupt) mode.

During receiving zeros will be sent when mode is set to Master. It is recommended to use available() method to check, if any data are available in FIFO buffer, else this method will wait until timeout or until receiving data. To check, if timeout elapsed, use lastTransactionStatus() method.

Parameters

data	Pointer to array, where will be stored received data.
size	The size of data in bytes (8-bits).
lastByte	Unused in HardwareSPI.

Note: When you have changed bit order to MSBFIRST, only bits will be swapped. Bytes will be sent from array begin also in MSBFIST mode.

Warning: Data have to be available on same pointer until they are received.

Returns: Returns true when data has been received.

Here is the call graph for this function:

Functions

Detailed Description

Three types of transaction methods

Function Documentation

◆ transfer() [1/2]

◆ transfer16()

◆ transfer32()

◆ transfer() [2/2]

◆ write()

◆ write16()

◆ write32()

◆ receive()

◆ receive16()

◆ receive32()

◆ writeBytes()

◆ writeBytesNonBlocking()

◆ transferBytes()

◆ transferBytesNonBlocking()

◆ receiveBytes()

◆ receiveBytesNonBlocking()
