This class is for receiving and transmitting data. More...

#include <Stream.h>

Inheritance diagram for Stream:

[legend]

Collaboration diagram for Stream:

Public Member Functions
virtual int	available ()=0
	Checks how many bytes are available in receiving buffer. More...

virtual int	read ()=0
	Reads one byte from receiving buffer and removes it from buffer. More...

virtual int	peek ()=0
	Reads one byte from receiving buffer and without removing it from buffer. More...

	Stream ()
	Constructor. More...

Stream &	operator>> (char &c)
	This operator (>>) applied to an input stream is known as extraction operator, it can be used same as cin>> operator. More...

Stream &	operator>> (char *buffer)
	This operator (>>) applied to an input stream is known as extraction operator, it can be used same as cin>> operator. More...

Stream &	operator>> (uint8_t *buffer)
	This operator (>>) applied to an input stream is known as extraction operator, it can be used same as cin>> operator. More...

	__INTEGER_ONLY__ (T, Stream &) operator>>(T &val)
	This operator (>>) applied to an input stream is known as extraction operator, it can be used same as cin>> operator. More...

	__FLOATING_ONLY__ (T, Stream &) operator>>(T &val)
	This operator (>>) applied to an input stream is known as extraction operator, it can be used same as cin>> operator. More...

void	setTimeout (unsigned long timeout)
	Sets the maximum milliseconds to wait for data transmitting or receiving. More...

virtual void	width (size_t width_)
	Sets receiving width, that is applied when using operators >> (same as cin.width() method). More...

bool	find (const char *target)
	Reads and removes data from the stream until the target string is found. More...

bool	find (uint8_t *target)
	Reads and removes data from the stream until the target string is found. More...

bool	find (const char *target, size_t length)
	Reads and removes data from the stream until the target string is found. More...

bool	find (const uint8_t *target, size_t length)
	Reads and removes data from the stream until the target string is found. More...

bool	find (char target)
	Reads and removes data from the stream until the target character is found. More...

bool	findUntil (const char target, const char terminator)
	Reads data from the stream until a target string or terminator string is found. More...

bool	findUntil (const uint8_t target, const char terminator)
	Reads data from the stream until a target string or terminator string is found. More...

bool	findUntil (const char target, size_t targetLen, const char terminate, size_t termLen)
	Reads data from the stream until a target string or terminator string is found. More...

bool	findUntil (const uint8_t target, size_t targetLen, const char terminate, size_t termLen)
	Reads data from the stream until a target string or terminator string is found. More...

long	parseInt ()
	Parses the first valid (long) integer number from the stream. More...

	__INTEGER_ONLY__ (T, T) inline parseNum()
	Parses the first valid integer number from the stream. More...

float	parseFloat ()
	Parses the first valid floating point number from the stream. More...

	__FLOATING_ONLY__ (T, T) inline parseNum()
	Parses the first valid floating point number from the stream. More...

virtual size_t	readBytes (char *buffer, size_t length)
	Reads characters from the stream into a buffer. More...

virtual size_t	readBytes (uint8_t *buffer, size_t length)
	Reads characters from the stream into a buffer. More...

size_t	readBytesUntil (char terminator, char *buffer, size_t length)
	Reads characters from the stream into a buffer. More...

size_t	readBytesUntil (char terminator, uint8_t *buffer, size_t length)
	Reads characters from the stream into a buffer. More...

Public Member Functions inherited from Print
	Print ()
	Constructor. More...

int	getWriteError ()
	Gets write error. More...

void	clearWriteError ()
	Clears write error. More...

virtual size_t	write (uint8_t byte)=0
	Writes one unsigned byte (character). More...

size_t	write (const char *str)
	Writes character array (string). More...

virtual size_t	write (const uint8_t *buffer, size_t size)
	Writes byte array (string). More...

size_t	write (const char *buffer, size_t size)
	Writes character array (string). More...

	__INTEGER_ONLY__ (T, size_t) inline write(T val)
	Converts integer type variable to unsigned byte and writes it. More...

virtual int	availableForWrite ()
	Gets how many bytes can be written, meaning "a single write may block". More...

size_t	printf (const char *format,...) __attribute__((format(printf
	Prints formatted data. More...

size_t size_t	print (const String &s)
	Prints string. More...

size_t	print (const char str[])
	Prints character array (string). More...

size_t	print (char c)
	Prints one character. More...

	__SIGNED_INTEGER_ONLY__ (T, size_t) print(T n
	Converts integer number to character array and prints it. More...

size_t	println (const String &s)
	Prints string followed by carriage return and new line. More...

size_t	println (const char[])
	Prints character array (string) followed by carriage return and new line. More...

size_t	println (char)
	Prints one character followed by carriage return and new line. More...

	__INTEGER_ONLY__ (T, size_t) inline println(T n
	Converts integer number to character array followed by carriage return and new line and prints it. More...

size_t	println (void)
	Prints carriage return and new line. More...

template<class T >
Print &	operator<< (T value)
	This operator (<<) applied to an output stream is known as insertion operator, it can be used same as cout<< operator. More...

Protected Member Functions
int	timedRead ()
	Private method to read stream with timeout. More...

int	timedPeek ()
	Private method to peek stream with timeout. More...

int	peekNextDigit ()
	Gets the next numeric digit in the stream or -1 if timeout. More...

long	parseInt (char skipChar)
	Parses the first valid (long) integer number from the stream. More...

	__INTEGER_ONLY__ (T, T) parseNum(char skipChar)
	Parses the first valid integer number from the stream. More...

float	parseFloat (char skipChar)
	Parses the first valid floating point number from the stream. More...

	__FLOATING_ONLY__ (T, T) parseNum(char skipChar)
	Parses the first valid floating point number from the stream. More...

virtual size_t	widthCheck (size_t width_)
	Checks if the correct width in width() method was set. More...

Protected Member Functions inherited from Print
void	setWriteError (int err=1)
	Sets write error. More...

Protected Attributes
unsigned long	_timeout = 1000
	Number of milliseconds to wait for the next char before aborting timed read. More...

unsigned long	_startMillis
	Used for timeout measurement. More...

size_t	_width = INT32_MAX
	Maximum operator >> read width. More...

Additional Inherited Members
Public Attributes inherited from Print
int	base

Detailed Description

This class is for receiving and transmitting data.

See also: Stream.h; Print

Constructor & Destructor Documentation

◆ Stream()

Stream::Stream ( )

inline

Constructor.

Member Function Documentation

◆ timedRead()

int Stream::timedRead ( )

protected

Private method to read stream with timeout.

Returns: Returns one character or -1 if nothing was read.

Here is the call graph for this function:

◆ timedPeek()

int Stream::timedPeek ( )

protected

Private method to peek stream with timeout.

Returns: Returns one character or -1 if nothing was read.

Here is the call graph for this function:

◆ peekNextDigit()

int Stream::peekNextDigit ( )

protected

Gets the next numeric digit in the stream or -1 if timeout.

Returns: Returns the next numeric digit in the stream or -1 if timeout.

Here is the call graph for this function:

◆ available()

virtual int Stream::available ( )

pure virtual

Checks how many bytes are available in receiving buffer.

Returns: Returns number of available bytes in receiving buffer or 0 if nothing is available.

Note: You should to override this method in derived class.

Implemented in HardwareSerial, and HardwareI2C.

◆ read()

virtual int Stream::read ( )

pure virtual

Reads one byte from receiving buffer and removes it from buffer.

Returns: Returns one character or -1 if nothing was read.

Note: You should to override this method in derived class.

Implemented in HardwareSerial, and HardwareI2C.

◆ peek()

virtual int Stream::peek ( )

pure virtual

Reads one byte from receiving buffer and without removing it from buffer.

Returns: Returns one character or -1 if nothing was read.

Note: You should to override this method in derived class.

Implemented in HardwareSerial, and HardwareI2C.

◆ operator>>() [1/3]

Stream & Stream::operator>> ( char & c )

This operator (>>) applied to an input stream is known as extraction operator, it can be used same as cin>> operator.

Parameters

c	Reads one character to this variable.

Returns: Returns stream class.

Here is the call graph for this function:

◆ operator>>() [2/3]

Stream & Stream::operator>> ( char * buffer )

This operator (>>) applied to an input stream is known as extraction operator, it can be used same as cin>> operator.

Note: Reading to buffer is terminated when white character was read or when received data count is higher or equals as width (see width()).

Parameters

buffer Reads characters from stream to this buffer.

Returns: Returns stream class.

Here is the call graph for this function:

◆ operator>>() [3/3]

Stream & Stream::operator>> ( uint8_t * buffer )

This operator (>>) applied to an input stream is known as extraction operator, it can be used same as cin>> operator.

Note: Reading to buffer is terminated when white character was read or when received data count is higher or equals as width (see width()).

Parameters

buffer Reads characters from stream to this buffer.

Returns: Returns stream class.

Here is the call graph for this function:

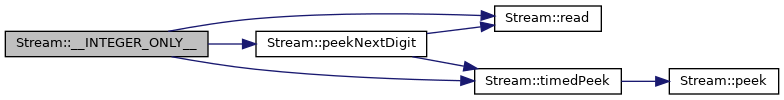

◆ __INTEGER_ONLY__() [1/3]

Stream::__INTEGER_ONLY__	(	T	,
		Stream &
	)		&

inline

This operator (>>) applied to an input stream is known as extraction operator, it can be used same as cin>> operator.

Note: This operator works same as parseInt() or parseNum() (only for integers types) methods.

Parameters

val	Read value is written to this variable.

Returns: Returns stream class.

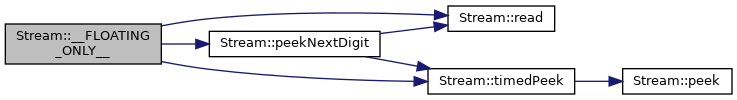

◆ __FLOATING_ONLY__() [1/3]

Stream::__FLOATING_ONLY__	(	T	,
		Stream &
	)		&

inline

This operator (>>) applied to an input stream is known as extraction operator, it can be used same as cin>> operator.

Note: This operator works same as parseFloat() or parseNum() (only for floating point types) methods.

Parameters

val	Read value is written to this variable.

Returns: Returns stream class.

◆ setTimeout()

void Stream::setTimeout ( unsigned long timeout )

Sets the maximum milliseconds to wait for data transmitting or receiving.

It defaults to 1000 milliseconds.

Parameters

timeout Timeout in milliseconds.

◆ width()

void Stream::width ( size_t width_ )

virtual

Sets receiving width, that is applied when using operators >> (same as cin.width() method).

Parameters

width_ Data width, that can be received at one time with >> operator to char array.

Note: You should to override this method in derived class.

◆ find() [1/5]

bool Stream::find ( const char * target )

Reads and removes data from the stream until the target string is found.

Parameters

target Target string.

Returns: Returns true if target string is found, false if timed out (see setTimeout).

Here is the call graph for this function:

◆ find() [2/5]

bool Stream::find ( uint8_t * target )

inline

Reads and removes data from the stream until the target string is found.

Parameters

target Target string.

Returns: Returns true if target string is found, false if timed out (see setTimeout).

Here is the call graph for this function:

◆ find() [3/5]

bool Stream::find	(	const char *	target,
		size_t	length
	)

Reads and removes data from the stream until the target string is found.

Parameters

target	Target string.
length	Length of the target string.

Returns: Returns true if target string is found, false if timed out (see setTimeout).

Here is the call graph for this function:

◆ find() [4/5]

bool Stream::find	(	const uint8_t *	target,
		size_t	length
	)

inline

Reads and removes data from the stream until the target string is found.

Parameters

target	Target string.
length	Length of the target string.

Returns: Returns true if target string is found, false if timed out (see setTimeout).

Here is the call graph for this function:

◆ find() [5/5]

bool Stream::find ( char target )

inline

Reads and removes data from the stream until the target character is found.

Parameters

target Target character.

Returns: Returns true if target character is found, false if timed out (see setTimeout).

Here is the call graph for this function:

◆ findUntil() [1/4]

bool Stream::findUntil	(	const char *	target,
		const char *	terminator
	)

Reads data from the stream until a target string or terminator string is found.

Parameters

target	The string to search for.
terminator	The terminal string in the search.

Returns: Returns true if target string is found, false if timed out (see setTimeout).

◆ findUntil() [2/4]

bool Stream::findUntil	(	const uint8_t *	target,
		const char *	terminator
	)

inline

Reads data from the stream until a target string or terminator string is found.

Parameters

target	The string to search for.
terminator	The terminal string in the search.

Returns: Returns true if target string is found, false if timed out (see setTimeout).

Here is the call graph for this function:

◆ findUntil() [3/4]

bool Stream::findUntil	(	const char *	target,
		size_t	targetLen,
		const char *	terminate,
		size_t	termLen
	)

Reads data from the stream until a target string or terminator string is found.

Parameters

target	The string to search for.
targetLen	Length of the target string.
terminator	The terminal string in the search.
targetLen	Length of the terminator string.

Returns: Returns true if target string is found, false if timed out (see setTimeout).

Here is the call graph for this function:

◆ findUntil() [4/4]

bool Stream::findUntil	(	const uint8_t *	target,
		size_t	targetLen,
		const char *	terminate,
		size_t	termLen
	)

inline

Reads data from the stream until a target string or terminator string is found.

Parameters

target	The string to search for.
targetLen	Length of the target string.
terminator	The terminal string in the search.
targetLen	Length of the terminator string.

Returns: Returns true if target string is found, false if timed out (see setTimeout).

Here is the call graph for this function:

◆ parseInt() [1/2]

long Stream::parseInt ( )

inline

Parses the first valid (long) integer number from the stream.

Characters that are not integers (or the minus sign) are skipped. Parsing stops when no characters have been read for a configurable time-out value, or a non-digit is read. If no valid digits were read when the time-out occurs (see setTimeout()), 0 is returned.

Returns: Returns the first valid (long) integer number from the stream.

◆ __INTEGER_ONLY__() [2/3]

Stream::__INTEGER_ONLY__	(	T	,
		T
	)

inline

Parses the first valid integer number from the stream.

Characters that are not integers (or the minus sign) are skipped. Parsing stops when no characters have been read for a configurable time-out value, or a non-digit is read. If no valid digits were read when the time-out occurs (see setTimeout()), 0 is returned.

Returns: Returns the first valid integer number from the stream.

Note: Use this method like this: Stream.parseNum<type>(); example for int32_t: int32_t value = Serial.parseNum<int32_t>();

◆ parseFloat() [1/2]

float Stream::parseFloat ( )

inline

Parses the first valid floating point number from the stream.

Characters that are not digits (or the minus sign or the decimal point) are skipped. Parsing stops when no characters have been read for a configurable time-out value, or a non-digit is read. If no valid digits were read when the time-out occurs (see setTimeout()), 0 is returned.

Returns: Returns the first valid floating point number from the stream.

◆ __FLOATING_ONLY__() [2/3]

Stream::__FLOATING_ONLY__	(	T	,
		T
	)

inline

Parses the first valid floating point number from the stream.

Characters that are not digits (or the minus sign or the decimal point) are skipped. Parsing stops when no characters have been read for a configurable time-out value, or a non-digit is read. If no valid digits were read when the time-out occurs (see setTimeout()), 0 is returned.

Returns: Returns the first valid floating point number from the stream.

Note: Use this method like this: Stream.parseNum<type>(); example for float: float value = Serial.parseNum<float>();

◆ readBytes() [1/2]

size_t Stream::readBytes	(	char *	buffer,
		size_t	length
	)

virtual

Reads characters from the stream into a buffer.

The function terminates if the determined length has been read, or it times out (see setTimeout()).

Parameters

buffer	Buffer, where to read data.
length	Length of the data, you want to read.

Returns: Returns number of successfully read bytes.

Note: You should to override this method in derived class.

Reimplemented in HardwareSerial.

Here is the call graph for this function:

◆ readBytes() [2/2]

virtual size_t Stream::readBytes	(	uint8_t *	buffer,
		size_t	length
	)

inlinevirtual

Reads characters from the stream into a buffer.

The function terminates if the determined length has been read, or it times out (see setTimeout()).

Parameters

buffer	Buffer, where to read data.
length	Length of the data, you want to read.

Returns: Returns number of successfully read bytes.

Note: You should to override this method in derived class.

Reimplemented in HardwareSerial.

Here is the call graph for this function:

◆ readBytesUntil() [1/2]

size_t Stream::readBytesUntil	(	char	terminator,
		char *	buffer,
		size_t	length
	)

Reads characters from the stream into a buffer.

The function terminates (checks being done in this order) if the determined length has been read, if it times out (see setTimeout()), or if the terminator character is detected (in which case the function returns the characters up to the last character before the supplied terminator).

Note: The terminator itself is not returned in the buffer.

Parameters

terminator	Terminator character.
buffer	Buffer, where to read data.
length	Length of the data, you want to read.

Returns: Returns number of successfully read bytes.

Here is the call graph for this function:

◆ readBytesUntil() [2/2]

size_t Stream::readBytesUntil	(	char	terminator,
		uint8_t *	buffer,
		size_t	length
	)

inline

Reads characters from the stream into a buffer.

The function terminates (checks being done in this order) if the determined length has been read, if it times out (see setTimeout()), or if the terminator character is detected (in which case the function returns the characters up to the last character before the supplied terminator).

Note: The terminator itself is not returned in the buffer.

Parameters

terminator	Terminator character.
buffer	Buffer, where to read data.
length	Length of the data, you want to read.

Returns: Returns number of successfully read bytes.

Here is the call graph for this function:

◆ parseInt() [2/2]

long Stream::parseInt ( char skipChar )

inlineprotected

Parses the first valid (long) integer number from the stream.

Characters that are not integers (or the minus sign) are skipped. Parsing stops when no characters have been read for a configurable time-out value, or a non-digit is read. If no valid digits were read when the time-out occurs (see setTimeout()), 0 is returned.

Parameters

skipChar Character, that will be ignored.

Returns: Returns the first valid (long) integer number from the stream.

◆ __INTEGER_ONLY__() [3/3]

Stream::__INTEGER_ONLY__	(	T	,
		T
	)

inlineprotected

Parses the first valid integer number from the stream.

Characters that are not integers (or the minus sign) are skipped. Parsing stops when no characters have been read for a configurable time-out value, or a non-digit is read. If no valid digits were read when the time-out occurs (see setTimeout()), 0 is returned.

Parameters

skipChar Character, that will be ignored.

Returns: Returns the first valid integer number from the stream.

Note: Use this method like this: Stream.parseNum<type>(); example for int32_t: int32_t value = Serial.parseNum<int32_t>();

Here is the call graph for this function:

◆ parseFloat() [2/2]

float Stream::parseFloat ( char skipChar )

inlineprotected

Parses the first valid floating point number from the stream.

Characters that are not digits (or the minus sign or the decimal point) are skipped. Parsing stops when no characters have been read for a configurable time-out value, or a non-digit is read. If no valid digits were read when the time-out occurs (see setTimeout()), 0 is returned.

Parameters

skipChar Character, that will be ignored.

Returns: Returns the first valid floating point number from the stream.

Here is the call graph for this function:

◆ __FLOATING_ONLY__() [3/3]

Stream::__FLOATING_ONLY__	(	T	,
		T
	)

inlineprotected

Parses the first valid floating point number from the stream.

Characters that are not digits (or the minus sign or the decimal point) are skipped. Parsing stops when no characters have been read for a configurable time-out value, or a non-digit is read. If no valid digits were read when the time-out occurs (see setTimeout()), 0 is returned.

Returns: Returns the first valid floating point number from the stream.

Parameters

skipChar Character, that will be ignored.

Note: Use this method like this: Stream.parseNum<type>(); example for float: float value = Serial.parseNum<float>();

Here is the call graph for this function:

◆ widthCheck()

size_t Stream::widthCheck ( size_t width_ )

protectedvirtual

Checks if the correct width in width() method was set.

Parameters

width_ Width value to check.

Returns: Returns corrected width value.

Reimplemented in HardwareSerial.

Member Data Documentation

◆ _timeout

unsigned long Stream::_timeout = 1000

protected

Number of milliseconds to wait for the next char before aborting timed read.

◆ _startMillis

unsigned long Stream::_startMillis

protected

Used for timeout measurement.

◆ _width

size_t Stream::_width = INT32_MAX

protected

Maximum operator >> read width.

The documentation for this class was generated from the following files:

src/Streams/Inc/Stream.h
src/Streams/Src/Stream.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Stream()

Member Function Documentation

◆ timedRead()

◆ timedPeek()

◆ peekNextDigit()

◆ available()

◆ read()

◆ peek()

◆ operator>>() [1/3]

◆ operator>>() [2/3]

◆ operator>>() [3/3]

◆ __INTEGER_ONLY__() [1/3]

◆ __FLOATING_ONLY__() [1/3]

◆ setTimeout()

◆ width()

◆ find() [1/5]

◆ find() [2/5]

◆ find() [3/5]

◆ find() [4/5]

◆ find() [5/5]

◆ findUntil() [1/4]

◆ findUntil() [2/4]

◆ findUntil() [3/4]

◆ findUntil() [4/4]

◆ parseInt() [1/2]

◆ __INTEGER_ONLY__() [2/3]

◆ parseFloat() [1/2]

◆ __FLOATING_ONLY__() [2/3]

◆ readBytes() [1/2]

◆ readBytes() [2/2]

◆ readBytesUntil() [1/2]

◆ readBytesUntil() [2/2]

◆ parseInt() [2/2]

◆ __INTEGER_ONLY__() [3/3]

◆ parseFloat() [2/2]

◆ __FLOATING_ONLY__() [3/3]

◆ widthCheck()

Member Data Documentation

◆ _timeout

◆ _startMillis

◆ _width
