Calculate CRC simply and fast using this class. Calculation is done using hardware CRC calculation unit. More...

#include <HardwareCRC.h>

Public Member Functions
bool	begin ()
	Enables CRC hardware calculation unit. More...

bool	setPolynomial7 (uint32_t polynomial=CRC7_POLY)
	Sets CRC-7 polynomial. More...

bool	setPolynomial8 (uint32_t polynomial=CRC8_POLY)
	Sets CRC-8 polynomial. More...

bool	setPolynomial16 (uint32_t polynomial=CRC16_POLY)
	Sets CRC-16 polynomial. More...

bool	setPolynomial32 (uint32_t polynomial=CRC32_POLY)
	Sets CRC-32 polynomial. More...

uint32_t	getPolynomial ()
	Gets polynomial, that was set. More...

uint8_t	getPolynomialLength ()
	Gets polynomial length in bits. More...

uint32_t	getInitValue ()
	Gets initial value, that was set using reset(), compute() or computeAndWriteToEnd() method. More...

uint32_t	getLastCRC (uint32_t finalXOR=0x00)
	Gets last calculated CRC result. More...

void	reset (uint32_t initValue=DEFAULT_HCRC_INITVAL)
	Resets calculation and sets initial value. More...

uint32_t	append (const uint8_t data, uint32_t finalXOR=0x00)
	Appends another data to previous CRC calculation and calculates new CRC value. More...

uint32_t	append (const uint8_t *data, uint32_t dataLength, uint32_t finalXOR=0x00)
	Appends another data to previous CRC calculation and calculates new CRC value. More...

uint32_t	append (const int8_t *data, uint32_t dataLength, uint32_t finalXOR=0x00)
	Appends another data to previous CRC calculation and calculates new CRC value. More...

uint32_t	append (const uint16_t data, uint32_t finalXOR=0x00)
	Appends another data to previous CRC calculation and calculates new CRC value. More...

uint32_t	append (const uint16_t *data, uint32_t dataLength, uint32_t finalXOR=0x00)
	Appends another data to previous CRC calculation and calculates new CRC value. More...

uint32_t	append (const int16_t *data, uint32_t dataLength, uint32_t finalXOR=0x00)
	Appends another data to previous CRC calculation and calculates new CRC value. More...

uint32_t	append (const uint32_t data, uint32_t finalXOR=0x00)
	Appends another data to previous CRC calculation and calculates new CRC value. More...

uint32_t	append (const uint32_t *data, uint32_t dataLength, uint32_t finalXOR=0x00)
	Appends another data to previous CRC calculation and calculates new CRC value. More...

uint32_t	append (const int32_t *data, uint32_t dataLength, uint32_t finalXOR=0x00)
	Appends another data to previous CRC calculation and calculates new CRC value. More...

uint32_t	compute (const uint8_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Resets and computes CRC value of the whole array. More...

uint32_t	compute (const int8_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Resets and computes CRC value of the whole array. More...

uint32_t	compute (const uint16_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Resets and computes CRC value of the whole array. More...

uint32_t	compute (const int16_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Resets and computes CRC value of the whole array. More...

uint32_t	compute (const uint32_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Resets and computes CRC value of the whole array. More...

uint32_t	compute (const int32_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Resets and computes CRC value of the whole array. More...

uint32_t	computeAndWriteToEnd (uint8_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Resets, computes CRC value of the whole array and attaches calculated CRC value at the end of the array. More...

uint32_t	computeAndWriteToEnd (int8_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Resets, computes CRC value of the whole array and attaches calculated CRC value at the end of the array. More...

uint32_t	computeAndWriteToEnd (uint16_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Resets, computes CRC value of the whole array and attaches calculated CRC value at the end of the array. More...

uint32_t	computeAndWriteToEnd (int16_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Resets, computes CRC value of the whole array and attaches calculated CRC value at the end of the array. More...

uint32_t	computeAndWriteToEnd (uint32_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Resets, computes CRC value of the whole array and attaches calculated CRC value at the end of the array. More...

uint32_t	computeAndWriteToEnd (int32_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Resets, computes CRC value of the whole array and attaches calculated CRC value at the end of the array. More...

bool	check (const uint8_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Checks if the array (with CRC attached at the end) is valid. More...

bool	check (const int8_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Checks if the array (with CRC attached at the end) is valid. More...

bool	check (const uint16_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Checks if the array (with CRC attached at the end) is valid. More...

bool	check (const int16_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Checks if the array (with CRC attached at the end) is valid. More...

bool	check (const uint32_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Checks if the array (with CRC attached at the end) is valid. More...

bool	check (const int32_t *data, uint32_t dataLength, uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Checks if the array (with CRC attached at the end) is valid. More...

uint32_t	getCheckValue (uint32_t initValue=DEFAULT_HCRC_INITVAL, uint32_t finalXOR=0x00)
	Calculates CRC check value. More...

bool	setInputReverse (bool reverse)
	Sets, if input data bits will be reversed(reflected) or not. More...

bool	setOutputReverse (bool reverse)
	Sets, if output CRC data bits will be reversed(reflected) or not. More...

bool	getInputReverse ()
	Gets, if input data bits will be reversed(reflected) or not. More...

bool	getOutputReverse ()
	Gets, if output CRC data bits will be reversed(reflected) or not. More...

void	end ()
	Disables hardware CRC calculation unit. More...

Static Public Attributes
static const bool	isCustomPolynomialSupported = CRC_CUST_POLY
	True when custom polynomials are supported. More...

static const bool	isIOReverseSupported = CRC_IO_REV_SUPP
	True when input / output reversion (reflection) is supported. More...

static const bool	isCustomInitValueSupported = CRC_CUST_INIT_VAL
	True when custom initial value is supported, if not, 0xFFFFFFFFUL is set. More...

Protected Member Functions
void	setInputReverseSize (uint32_t reverse)
	Sets input reverse size to CR register. More...

Protected Attributes
uint8_t	lastCR = 0xFF

uint32_t	lastFXOR = 0

uint32_t	lastCRCCheckValue = 0

uint8_t	inputReverse = HCRC_IN_REVERSE_DISABLED

Detailed Description

Calculate CRC simply and fast using this class. Calculation is done using hardware CRC calculation unit.

Pros and cons

Pros:

Fully programmable polynomial with programmable size (7, 8, 16, 32 bits).
Handles 8-,16-, 32-bit data size.
Programmable CRC initial value.
Programmable final XOR value.
Hardware CRC computation is done in 4 AHB clock cycles (HCLK) for the 32-bit data size. 2 AHB clock cycles (HCLK) for the 16-bit data size. 1 AHB clock cycle (HCLK) for the 8-bit data size.
Supports input/output reflection. Cons:
Not every method is supported on all MCUs.

TODO

Todo:: Add support for little and big endian.

See also: HardwareCRC.h; Default CRC polynomials; CRC polynomial terms; Hardware CRC documentation

Member Function Documentation

◆ begin()

bool HardwareCRC::begin ( )

Enables CRC hardware calculation unit.

Returns: Returns true when periphery was enabled.

Examples: HarwareCRCExample.

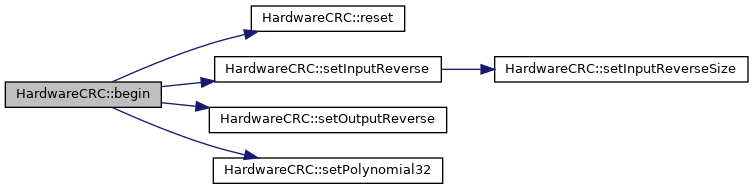

Here is the call graph for this function:

◆ setPolynomial7()

bool HardwareCRC::setPolynomial7 ( uint32_t polynomial = CRC7_POLY )

Sets CRC-7 polynomial.

Parameters

polynomial Custom CRC-7 polynomial. See CRC_Poly_Terms to create custom polynomial, or see Def_CRC_Poly to use most used polynomials.

Note: CRC-7 polynomial has to be odd and lower or equal than 0x7F.

Returns: Returns true when polynomial is correct and was set.

◆ setPolynomial8()

bool HardwareCRC::setPolynomial8 ( uint32_t polynomial = CRC8_POLY )

Sets CRC-8 polynomial.

Parameters

polynomial Custom CRC-8 polynomial. See CRC_Poly_Terms to create custom polynomial, or see Def_CRC_Poly to use most used polynomials.

Note: CRC-8 polynomial has to be odd and lower or equal than 0xFF.

Returns: Returns true when polynomial is correct and was set.

Examples: HarwareCRCExample.

◆ setPolynomial16()

bool HardwareCRC::setPolynomial16 ( uint32_t polynomial = CRC16_POLY )

Sets CRC-16 polynomial.

Parameters

polynomial Custom CRC-16 polynomial. See CRC_Poly_Terms to create custom polynomial, or see Def_CRC_Poly to use most used polynomials.

Note: CRC-16 polynomial has to be odd and lower or equal than 0xFFFF.

Returns: Returns true when polynomial is correct and was set.

◆ setPolynomial32()

bool HardwareCRC::setPolynomial32 ( uint32_t polynomial = CRC32_POLY )

Sets CRC-32 polynomial.

Parameters

polynomial Custom CRC-32 polynomial. See CRC_Poly_Terms to create custom polynomial, or see Def_CRC_Poly to use most used polynomials.

Note: CRC-32 polynomial has to be odd and lower or equal than 0xFFFFFFFF.

Returns: Returns true when polynomial is correct and was set.

Examples: HarwareCRCExample.

◆ getPolynomial()

uint32_t HardwareCRC::getPolynomial ( )

inline

Gets polynomial, that was set.

Returns: Returns polynomial.

◆ getPolynomialLength()

uint8_t HardwareCRC::getPolynomialLength ( )

Gets polynomial length in bits.

Returns: Returns polynomial length in bits. Possible values: 32, 16, 8, 7.

◆ getInitValue()

uint32_t HardwareCRC::getInitValue ( )

inline

Gets initial value, that was set using reset(), compute() or computeAndWriteToEnd() method.

Returns: Returns initial value.

◆ getLastCRC()

uint32_t HardwareCRC::getLastCRC ( uint32_t finalXOR = 0x00 )

inline

Gets last calculated CRC result.

Parameters

param finalXOR Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns last calculated CRC result.

◆ reset()

void HardwareCRC::reset ( uint32_t initValue = DEFAULT_HCRC_INITVAL )

Resets calculation and sets initial value.

Parameters

initValue Initial calculation value.

Examples: HarwareCRCExample.

◆ append() [1/9]

uint32_t HardwareCRC::append	(	const uint8_t	data,
		uint32_t	finalXOR = `0x00`
	)

Appends another data to previous CRC calculation and calculates new CRC value.

Parameters

data	One byte to add.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F => 0xF0

Returns: Returns calculated CRC value from the begin of the calculation. Calculation is restarted when reset(), begin(), compute(), computeAndWriteToEnd() or check() method were used.

Examples: HarwareCRCExample.

Here is the call graph for this function:

◆ append() [2/9]

uint32_t HardwareCRC::append	(	const uint8_t *	data,
		uint32_t	dataLength,
		uint32_t	finalXOR = `0x00`
	)

Appends another data to previous CRC calculation and calculates new CRC value.

Parameters

data	Byte array to add.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F => 0xF0

Parameters

dataLength	Count of bytes in data array.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value from the begin of the calculation. Calculation is restarted when reset(), begin(), compute(), computeAndWriteToEnd() or check() method were used.

Here is the call graph for this function:

◆ append() [3/9]

uint32_t HardwareCRC::append	(	const int8_t *	data,
		uint32_t	dataLength,
		uint32_t	finalXOR = `0x00`
	)

inline

Appends another data to previous CRC calculation and calculates new CRC value.

Parameters

data	Byte array to add.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F => 0xF0

Parameters

dataLength	Count of bytes in data array.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value from the begin of the calculation. Calculation is restarted when reset(), begin(), compute(), computeAndWriteToEnd() or check() method were used.

Here is the call graph for this function:

◆ append() [4/9]

uint32_t HardwareCRC::append	(	const uint16_t	data,
		uint32_t	finalXOR = `0x00`
	)

Appends another data to previous CRC calculation and calculates new CRC value.

Parameters

data	One half-word (2 bytes) to add.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0FFF => 0xFFF0

Parameters

finalXOR Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value from the begin of the calculation. Calculation is restarted when reset(), begin(), compute(), computeAndWriteToEnd() or check() method were used.

Here is the call graph for this function:

◆ append() [5/9]

uint32_t HardwareCRC::append	(	const uint16_t *	data,
		uint32_t	dataLength,
		uint32_t	finalXOR = `0x00`
	)

Appends another data to previous CRC calculation and calculates new CRC value.

Parameters

data	Array of half-words (2 bytes) to add.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0FFF => 0xFFF0

Parameters

dataLength	Count of half-words in data array.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value from the begin of the calculation. Calculation is restarted when reset(), begin(), compute(), computeAndWriteToEnd() or check() method were used.

Here is the call graph for this function:

◆ append() [6/9]

uint32_t HardwareCRC::append	(	const int16_t *	data,
		uint32_t	dataLength,
		uint32_t	finalXOR = `0x00`
	)

inline

Appends another data to previous CRC calculation and calculates new CRC value.

Parameters

data	Array of half-words (2 bytes) to add.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0FFF => 0xFFF0

Parameters

dataLength	Count of half-words in data array.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value from the begin of the calculation. Calculation is restarted when reset(), begin(), compute(), computeAndWriteToEnd() or check() method were used.

Here is the call graph for this function:

◆ append() [7/9]

uint32_t HardwareCRC::append	(	const uint32_t	data,
		uint32_t	finalXOR = `0x00`
	)

Appends another data to previous CRC calculation and calculates new CRC value.

Parameters

data	One word (4 bytes) to add.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F0FFFFF => 0xFFFFF0F0

Parameters

finalXOR Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value from the begin of the calculation. Calculation is restarted when reset(), begin(), compute(), computeAndWriteToEnd() or check() method were used.

Here is the call graph for this function:

◆ append() [8/9]

uint32_t HardwareCRC::append	(	const uint32_t *	data,
		uint32_t	dataLength,
		uint32_t	finalXOR = `0x00`
	)

Appends another data to previous CRC calculation and calculates new CRC value.

Parameters

data	Array of words (4 bytes) to add.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F0FFFFF => 0xFFFFF0F0

Parameters

dataLength	Count of words in data array.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value from the begin of the calculation. Calculation is restarted when reset(), begin(), compute(), computeAndWriteToEnd() or check() method were used.

Here is the call graph for this function:

◆ append() [9/9]

uint32_t HardwareCRC::append	(	const int32_t *	data,
		uint32_t	dataLength,
		uint32_t	finalXOR = `0x00`
	)

inline

Appends another data to previous CRC calculation and calculates new CRC value.

Parameters

data	Array of words (4 bytes) to add.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F0FFFFF => 0xFFFFF0F0

Parameters

dataLength	Count of words in data array.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value from the begin of the calculation. Calculation is restarted when reset(), begin(), compute(), computeAndWriteToEnd() or check() method were used.

Here is the call graph for this function:

◆ compute() [1/6]

uint32_t HardwareCRC::compute	(	const uint8_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

Resets and computes CRC value of the whole array.

reset() method is called at the method begin.

Parameters

data	Array of bytes to compute.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F => 0xF0

Parameters

dataLength	Count of bytes in data array.
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value.

Examples: HarwareCRCExample.

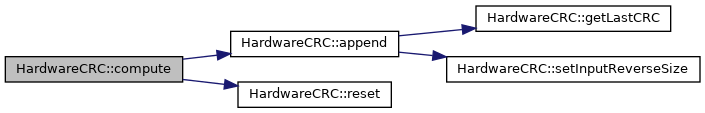

Here is the call graph for this function:

◆ compute() [2/6]

uint32_t HardwareCRC::compute	(	const int8_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

inline

Resets and computes CRC value of the whole array.

reset() method is called at the method begin.

Parameters

data	Array of bytes to compute.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F => 0xF0

Parameters

dataLength	Count of bytes in data array.
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value.

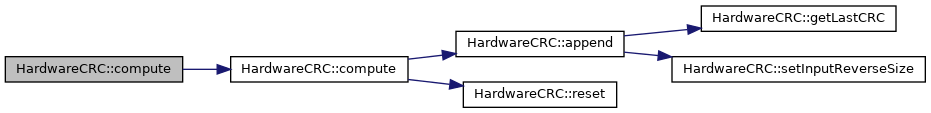

Here is the call graph for this function:

◆ compute() [3/6]

uint32_t HardwareCRC::compute	(	const uint16_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

Resets and computes CRC value of the whole array.

reset() method is called at the method begin.

Parameters

data	Array of half-words (2 bytes) to add.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0FFF => 0xFFF0

Parameters

dataLength	Count of half-words (2 bytes) in data array.
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value.

Here is the call graph for this function:

◆ compute() [4/6]

uint32_t HardwareCRC::compute	(	const int16_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

inline

Resets and computes CRC value of the whole array.

reset() method is called at the method begin.

Parameters

data	Array of half-words (2 bytes) to add.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0FFF => 0xFFF0

Parameters

dataLength	Count of half-words (2 bytes) in data array.
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value.

Here is the call graph for this function:

◆ compute() [5/6]

uint32_t HardwareCRC::compute	(	const uint32_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

Resets and computes CRC value of the whole array.

reset() method is called at the method begin.

Parameters

data	Array of words (4 bytes) to add.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F0FFFFF => 0xFFFFF0F0

Parameters

dataLength	Count of words (4 bytes) in data array.
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value.

Here is the call graph for this function:

◆ compute() [6/6]

uint32_t HardwareCRC::compute	(	const int32_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

inline

Resets and computes CRC value of the whole array.

reset() method is called at the method begin.

Parameters

data	Array of words (4 bytes) to add.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F0FFFFF => 0xFFFFF0F0

Parameters

dataLength	Count of words (4 bytes) in data array.
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value.

Here is the call graph for this function:

◆ computeAndWriteToEnd() [1/6]

uint32_t HardwareCRC::computeAndWriteToEnd	(	uint8_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

Resets, computes CRC value of the whole array and attaches calculated CRC value at the end of the array.

reset() method is called at the method begin.

Parameters

data	Array of bytes to compute. At the end of array must be reserved 4 bytes when CRC-32, 2 bytes when CRC-16 and 1 byte when CRC-8 or CRC-7 is used.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F => 0xF0

Parameters

dataLength	Count of bytes in data array. Excluding bytes reserved for CRC value.
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value.

Examples: HarwareCRCExample.

Here is the call graph for this function:

◆ computeAndWriteToEnd() [2/6]

uint32_t HardwareCRC::computeAndWriteToEnd	(	int8_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

inline

Resets, computes CRC value of the whole array and attaches calculated CRC value at the end of the array.

reset() method is called at the method begin.

Parameters

data	Array of bytes to compute. At the end of array must be reserved 4 bytes when CRC-32, 2 bytes when CRC-16 and 1 byte when CRC-8 or CRC-7 is used.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F => 0xF0

Parameters

dataLength	Count of bytes in data array. Excluding bytes reserved for CRC value.
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value.

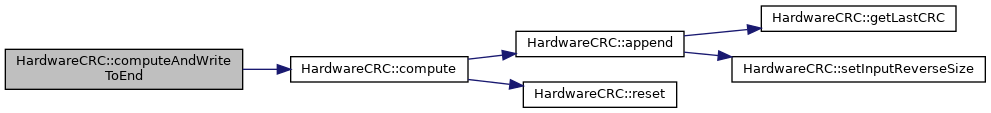

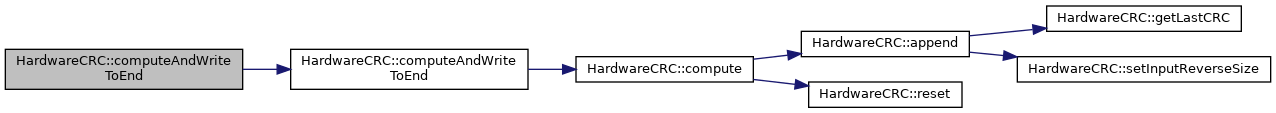

Here is the call graph for this function:

◆ computeAndWriteToEnd() [3/6]

uint32_t HardwareCRC::computeAndWriteToEnd	(	uint16_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

Resets, computes CRC value of the whole array and attaches calculated CRC value at the end of the array.

reset() method is called at the method begin.

Parameters

data	Array of half-words (2 bytes) to add. At the end of array must be reserved 4 bytes when CRC-32, 2 bytes when CRC-16 and 1 byte when CRC-8 or CRC-7 is used.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0FFF => 0xFFF0

Parameters

dataLength	Count of half-words (2 bytes) in data array. Excluding bytes reserved for CRC value.
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value.

Here is the call graph for this function:

◆ computeAndWriteToEnd() [4/6]

uint32_t HardwareCRC::computeAndWriteToEnd	(	int16_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

inline

Resets, computes CRC value of the whole array and attaches calculated CRC value at the end of the array.

reset() method is called at the method begin.

Parameters

data	Array of half-words (2 bytes) to add. At the end of array must be reserved 4 bytes when CRC-32, 2 bytes when CRC-16 and 1 byte when CRC-8 or CRC-7 is used.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0FFF => 0xFFF0

Parameters

dataLength	Count of half-words (2 bytes) in data array. Excluding bytes reserved for CRC value.
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value.

Here is the call graph for this function:

◆ computeAndWriteToEnd() [5/6]

uint32_t HardwareCRC::computeAndWriteToEnd	(	uint32_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

Resets, computes CRC value of the whole array and attaches calculated CRC value at the end of the array.

reset() method is called at the method begin.

Parameters

data	Array of words (4 bytes) to add. At the end of array must be reserved 4 bytes when CRC-32, 2 bytes when CRC-16 and 1 byte when CRC-8 or CRC-7 is used.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F0FFFFF => 0xFFFFF0F0

Parameters

dataLength	Count of words (4 bytes) in data array. Excluding bytes reserved for CRC value.
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value.

Here is the call graph for this function:

◆ computeAndWriteToEnd() [6/6]

uint32_t HardwareCRC::computeAndWriteToEnd	(	int32_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

inline

Resets, computes CRC value of the whole array and attaches calculated CRC value at the end of the array.

reset() method is called at the method begin.

Parameters

data	Array of words (4 bytes) to add. At the end of array must be reserved 4 bytes when CRC-32, 2 bytes when CRC-16 and 1 byte when CRC-8 or CRC-7 is used.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F0FFFFF => 0xFFFFF0F0

Parameters

dataLength	Count of words (4 bytes) in data array. Excluding bytes reserved for CRC value.
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns calculated CRC value.

Here is the call graph for this function:

◆ check() [1/6]

bool HardwareCRC::check	(	const uint8_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

Checks if the array (with CRC attached at the end) is valid.

reset() method is called at the method begin.

Parameters

data	Array of bytes to check. CRC has to be at the end of the array.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F0FFFFF => 0xFFFFF0F0

Parameters

dataLength	Count of bytes in data array (excluding CRC).
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns true when array is valid.

Examples: HarwareCRCExample.

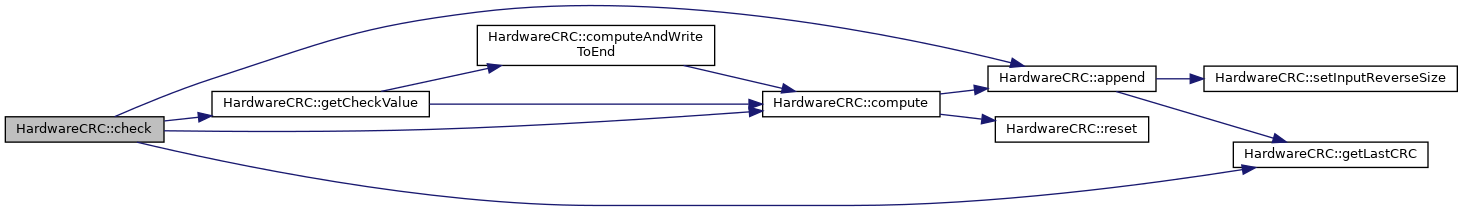

Here is the call graph for this function:

◆ check() [2/6]

bool HardwareCRC::check	(	const int8_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

inline

Checks if the array (with CRC attached at the end) is valid.

reset() method is called at the method begin.

Parameters

data	Array of bytes to check. CRC has to be at the end of the array.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F0FFFFF => 0xFFFFF0F0

Parameters

dataLength	Count of bytes in data array (excluding CRC).
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns true when array is valid.

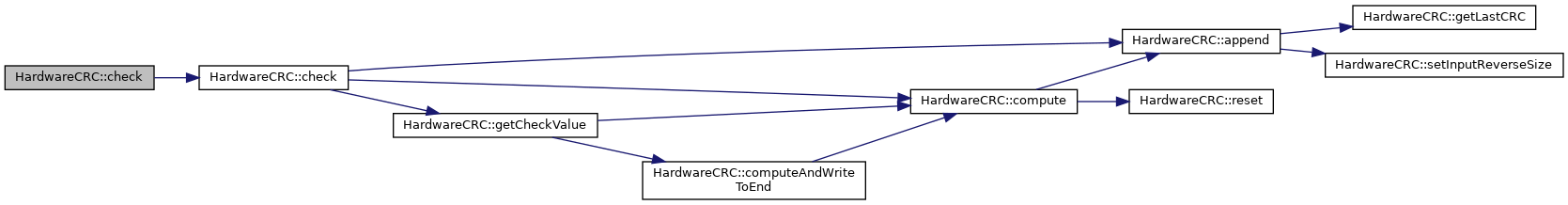

Here is the call graph for this function:

◆ check() [3/6]

bool HardwareCRC::check	(	const uint16_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

Checks if the array (with CRC attached at the end) is valid.

reset() method is called at the method begin.

Parameters

data	Array of half-words (2 bytes) to check. CRC has to be at the end of the array.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0FFF => 0xFFF0

Parameters

dataLength	Count of half-words (2 bytes) in data array (excluding CRC).
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns true when array is valid.

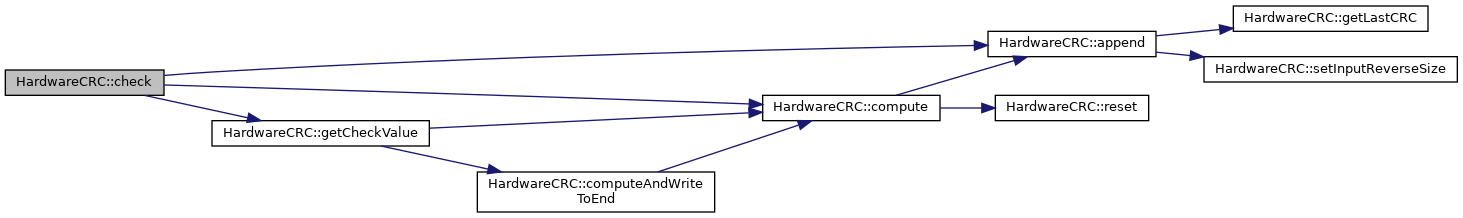

Here is the call graph for this function:

◆ check() [4/6]

bool HardwareCRC::check	(	const int16_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

inline

Checks if the array (with CRC attached at the end) is valid.

reset() method is called at the method begin.

Parameters

data	Array of half-words (2 bytes) to check. CRC has to be at the end of the array.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0FFF => 0xFFF0

Parameters

dataLength	Count of half-words (2 bytes) in data array (excluding CRC).
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns true when array is valid.

Here is the call graph for this function:

◆ check() [5/6]

bool HardwareCRC::check	(	const uint32_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

Checks if the array (with CRC attached at the end) is valid.

reset() method is called at the method begin.

Parameters

data	Array of words (4 bytes) to check. CRC has to be at the end of the array.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F0FFFFF => 0xFFFFF0F0

Parameters

dataLength	Count of words (4 bytes) in data array (excluding CRC).
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns true when array is valid.

Here is the call graph for this function:

◆ check() [6/6]

bool HardwareCRC::check	(	const int32_t *	data,
		uint32_t	dataLength,
		uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

inline

Checks if the array (with CRC attached at the end) is valid.

reset() method is called at the method begin.

Parameters

data	Array of words (4 bytes) to check. CRC has to be at the end of the array.

Note: When input reverse is enabled, bits of whole word are reversed. For example: 0x0F0FFFFF => 0xFFFFF0F0

Parameters

dataLength	Count of words (4 bytes) in data array (excluding CRC).
initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns true when array is valid.

Here is the call graph for this function:

◆ getCheckValue()

uint32_t HardwareCRC::getCheckValue	(	uint32_t	initValue = `DEFAULT_HCRC_INITVAL`,
		uint32_t	finalXOR = `0x00`
	)

Calculates CRC check value.

When settings were not changed, last check value is returned. To validate array(with CRC at the end), compute it's CRC value again and compare to the check value.

Parameters

initValue	Initial calculation value.
finalXOR	Value, that is used to XOR by bits the calculated result. Set to 0 if you want to disable final XORing.

Returns: Returns check value.

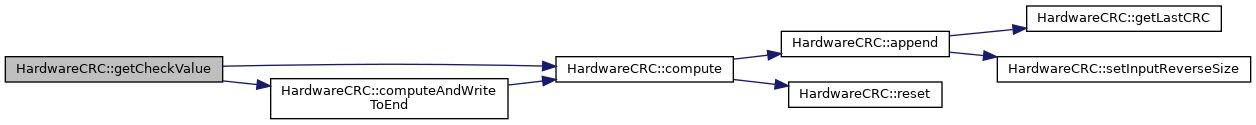

Here is the call graph for this function:

◆ setInputReverse()

bool HardwareCRC::setInputReverse ( bool reverse )

Sets, if input data bits will be reversed(reflected) or not.

Returns: Returns true when input reflection is supported.

Examples: HarwareCRCExample.

Here is the call graph for this function:

◆ setOutputReverse()

bool HardwareCRC::setOutputReverse ( bool reverse )

Sets, if output CRC data bits will be reversed(reflected) or not.

Note: Output is reversed immediately after calling this method. It can be used in run-time.

Returns: Returns true when output reflection is supported.

Examples: HarwareCRCExample.

◆ getInputReverse()

bool HardwareCRC::getInputReverse ( )

inline

Gets, if input data bits will be reversed(reflected) or not.

Returns: Returns true when input data bits will be reversed(reflected) or not.

◆ getOutputReverse()

bool HardwareCRC::getOutputReverse ( )

inline

Gets, if output CRC data bits will be reversed(reflected) or not.

Returns: Returns true when output CRC data bits will be reversed(reflected) or not.

◆ end()

void HardwareCRC::end ( )

Disables hardware CRC calculation unit.

◆ setInputReverseSize()

void HardwareCRC::setInputReverseSize ( uint32_t reverse )

protected

Sets input reverse size to CR register.

Parameters

reverse Size to set.

Member Data Documentation

◆ isCustomPolynomialSupported

const bool HardwareCRC::isCustomPolynomialSupported = CRC_CUST_POLY

static

True when custom polynomials are supported.

Methods setPolynomial7(), setPolynomial8(), setPolynomial16(), setPolynomial32() will work correctly. If not, CRC-32 polynomial is used.

◆ isIOReverseSupported

const bool HardwareCRC::isIOReverseSupported = CRC_IO_REV_SUPP

static

True when input / output reversion (reflection) is supported.

◆ isCustomInitValueSupported

const bool HardwareCRC::isCustomInitValueSupported = CRC_CUST_INIT_VAL

static

True when custom initial value is supported, if not, 0xFFFFFFFFUL is set.

◆ lastCR

uint8_t HardwareCRC::lastCR = 0xFF

protected

◆ lastFXOR

uint32_t HardwareCRC::lastFXOR = 0

protected

◆ lastCRCCheckValue

uint32_t HardwareCRC::lastCRCCheckValue = 0

protected

◆ inputReverse

uint8_t HardwareCRC::inputReverse = HCRC_IN_REVERSE_DISABLED

protected

The documentation for this class was generated from the following files:

src/Drivers/Inc/HardwareCRC.h
src/Drivers/Src/HardwareCRC.cpp

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Pros and cons

TODO

Member Function Documentation

◆ begin()

◆ setPolynomial7()

◆ setPolynomial8()

◆ setPolynomial16()

◆ setPolynomial32()

◆ getPolynomial()

◆ getPolynomialLength()

◆ getInitValue()

◆ getLastCRC()

◆ reset()

◆ append() [1/9]

◆ append() [2/9]

◆ append() [3/9]

◆ append() [4/9]

◆ append() [5/9]

◆ append() [6/9]

◆ append() [7/9]

◆ append() [8/9]

◆ append() [9/9]

◆ compute() [1/6]

◆ compute() [2/6]

◆ compute() [3/6]

◆ compute() [4/6]

◆ compute() [5/6]

◆ compute() [6/6]

◆ computeAndWriteToEnd() [1/6]

◆ computeAndWriteToEnd() [2/6]

◆ computeAndWriteToEnd() [3/6]

◆ computeAndWriteToEnd() [4/6]

◆ computeAndWriteToEnd() [5/6]

◆ computeAndWriteToEnd() [6/6]

◆ check() [1/6]

◆ check() [2/6]

◆ check() [3/6]

◆ check() [4/6]

◆ check() [5/6]

◆ check() [6/6]

◆ getCheckValue()

◆ setInputReverse()

◆ setOutputReverse()

◆ getInputReverse()

◆ getOutputReverse()

◆ end()

◆ setInputReverseSize()

Member Data Documentation

◆ isCustomPolynomialSupported

◆ isIOReverseSupported

◆ isCustomInitValueSupported

◆ lastCR

◆ lastFXOR

◆ lastCRCCheckValue

◆ inputReverse
