HardwareSPI.h File Reference

This file contains class with methods to handle SPI periphery. More...

#include "HardwareCRC.h"

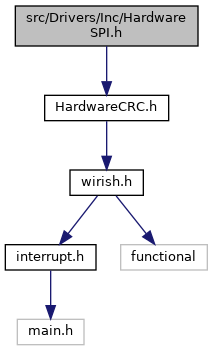

Include dependency graph for HardwareSPI.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	SPISettings
	Class, that holds SPI settings. More...
class	HardwareSPI
	This class is for handling SPI periphery. More...
class	HardwareSPI_O
	This class is for handling SPI periphery, but is more optimized for speed same as arduino SPI class. More...

Macros
#define	SPI_HAS_TRANSACTION   1
	Macro contains 1 when SPI supports transactions. More...
#define	SPI_CLOCK_DIV2   SPI_BAUDRATEPRESCALER_2
#define	SPI_CLOCK_DIV4   SPI_BAUDRATEPRESCALER_4
#define	SPI_CLOCK_DIV8   SPI_BAUDRATEPRESCALER_8
#define	SPI_CLOCK_DIV16   SPI_BAUDRATEPRESCALER_16
#define	SPI_CLOCK_DIV32   SPI_BAUDRATEPRESCALER_32
#define	SPI_CLOCK_DIV64   SPI_BAUDRATEPRESCALER_64
#define	SPI_CLOCK_DIV128   SPI_BAUDRATEPRESCALER_128
#define	SPI_CLOCK_DIV256   SPI_BAUDRATEPRESCALER_256
#define	SPI_MASTER   SPI_MODE_MASTER
#define	SPI_SLAVE   SPI_MODE_SLAVE

Enumerations
enum	SPI_Status {   SPI_OK = HAL_OK, SPI_ERR = HAL_ERROR, SPI_BUSY_ERR = HAL_BUSY, SPI_TIMEOUT = HAL_TIMEOUT,   SPI_GEN_ERR, SPI_ERR_LOCKED, SPI_CRC_ERR }
	Enumerations of SPI status codes. More...
enum	SPI_ErrorCode {   SPI_ERROR_NONE = HAL_SPI_ERROR_NONE, SPI_ERROR_MODF = HAL_SPI_ERROR_MODF, SPI_ERROR_CRC = HAL_SPI_ERROR_CRC, SPI_ERROR_OVR = HAL_SPI_ERROR_OVR,   SPI_ERROR_DMA = HAL_SPI_ERROR_DMA, SPI_ERROR_FLAG = HAL_SPI_ERROR_FLAG, SPI_ERROR_ABORT = HAL_SPI_ERROR_ABORT }
	Enumerations of SPI Hardware error codes. More...
enum	SPI_CRCLength { SPI_CRC_DATAWIDTH = 0, SPI_CRC_1BYTE = 8, SPI_CRC_2BYTES = 16 }
	Enumerations of SPI CRC lengths. More...

Variables
const uint8_t	SPI_MODE0 = 0x00
	CPOL: 0 CPHA: 0. More...
const uint8_t	SPI_MODE1 = 0x01
	CPOL: 0 CPHA: 1. More...
const uint8_t	SPI_MODE2 = 0x10
	CPOL: 1 CPHA: 0. More...
const uint8_t	SPI_MODE3 = 0x11
	CPOL: 1 CPHA: 1. More...

Detailed Description

This file contains class with methods to handle SPI periphery.

Credits

Author

Cepko Patrik

Date

June 18, 2021

See also

SPISettings

Hardware I2C documentation

Credits

Author

Matej Fitoš

Date

June 18, 2021

See also

HardwareSPI

HardwareSPI_O

SPISettings

Hardware SPI documentation

Macro Definition Documentation

SPI_HAS_TRANSACTION

#define SPI_HAS_TRANSACTION   1

Macro contains 1 when SPI supports transactions.

Note

Do not change!

Enumeration Type Documentation

SPI_Status

enum SPI_Status

Enumerations of SPI status codes.

Note

Method getError() does not returns values from this enum, but uses SPI_ErrorCode.

See also

lastTransactionStatus()

Enumerator
SPI_OK	Transaction was without known error.
SPI_ERR	Error, that happened during ending of transaction.
SPI_BUSY_ERR	SPI periphery is busy.
SPI_TIMEOUT	SPI timeout was reached.
SPI_GEN_ERR	SPI generic error. This status indicates, that instance does not exists or current method cannot be called with current settings.
SPI_ERR_LOCKED	SPI periphery is locked already.
SPI_CRC_ERR	SPI CRC calculation error (see enableCRC())

SPI_ErrorCode

enum SPI_ErrorCode

Enumerations of SPI Hardware error codes.

Note

Method lastTransactionStatus() does not returns values from this enum, but uses SPI_Status.

See also

getError()

Enumerator
SPI_ERROR_NONE	No error.
SPI_ERROR_MODF	MODF (mode fault) error.
SPI_ERROR_CRC	CRC error.
SPI_ERROR_OVR	OVR (overrun) error.
SPI_ERROR_DMA	DMA transfer error.
SPI_ERROR_FLAG	Error on RXNE/TXE/BSY/FTLVL/FRLVL Flag.
SPI_ERROR_ABORT	Error during SPI Abort procedure.

SPI_CRCLength

enum SPI_CRCLength

Enumerations of SPI CRC lengths.

See also

setCRClength()

Enumerator
SPI_CRC_DATAWIDTH	CRC size will be automatically aligned to data width, but data width have to be set to 8 or 16. See also setDataBits()
SPI_CRC_1BYTE	CRC will be 8 bits wide.
SPI_CRC_2BYTES	CRC will be 16 bits wide.
