SensorInterface_t Struct Reference

The interface, that defines list of functions, tha have to be implemented for each type of value (or sensor), that will be inserted in file. More...

#include <sensor.h>

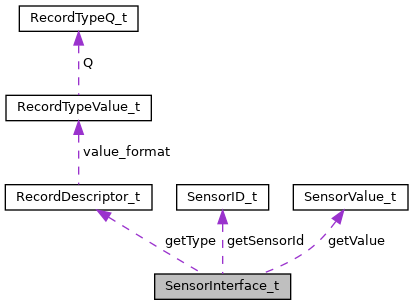

Collaboration diagram for SensorInterface_t:

Public Attributes
void(*	Init )(void *hw1, uint16_t hw2)
	Initialization of sensor. More...
void(*	resetSensor )(void)
	Reset sensor settings. More...
SensorID_t *(*	getSensorId )(uint8_t id)
	Return sensors ID. More...
RecordDescriptor_t(*	getType )()
	Return sensor type specification. More...
void(*	doMeasure )(void)
	Start data acquisition process on sensor. More...
SensorValue_t *(*	getValue )(void)
	Read prepared value from sensor. More...
uint8_t(*	getSensorCount )(void)
	Return number of internal sub-sensors if they are defined. More...

Detailed Description

The interface, that defines list of functions, tha have to be implemented for each type of value (or sensor), that will be inserted in file.

In general, the source for data acquisition is some HW element, e.g. external sensor. These functions provide interface between higl-level aplication and low-level communication with sensors. Meaning of the functions:

• Init - initialize of interface. Can be HW initialisation.
• resetSensor - reset sensor setting.
• getSensorId - return sensor ID
• getType - return type of sensor/value
• doMeasure perform action to start data acquisition form sensor
• getValue - read value from sensor
• getSensorCount - return number of internal sub-sensors

Member Data Documentation

doMeasure

void(* SensorInterface_t::doMeasure) (void)

Start data acquisition process on sensor.

For HW implemented sensors, this function have to be called before getValue() function.

getSensorCount

uint8_t(* SensorInterface_t::getSensorCount) (void)

Return number of internal sub-sensors if they are defined.

Returns

number od sensors for this interface.

getSensorId

SensorID_t*(* SensorInterface_t::getSensorId) (uint8_t id)

Return sensors ID.

In some cases, this interface can represents more than 1 sensor. In these cases, the first argument identifies that sensor by internal index.

Parameters

id	internal index of sensor in this interface. If this interface represents only one sensor, this parameter is omitted.

Returns

pointer to structure, that represents sensor ID.

getType

RecordDescriptor_t(* SensorInterface_t::getType) ()

Return sensor type specification.

In some cases, this interface can represents more than 1 sensor. In these cases, the first argument identifies that sensor by internal index.

Parameters

id	internal index of sensor in this interface. If this interface represents only one sensor, this parameter is omitted.

Returns

structure, that represents sensor type specification.

getValue

SensorValue_t*(* SensorInterface_t::getValue) (void)

Read prepared value from sensor.

Before calling this function, the doMeasure() function have to be caled.

Returns

pointer to structure, that is stored raw value from sensor.

Init

void(* SensorInterface_t::Init) (void *hw1, uint16_t hw2)

Initialization of sensor.

Can be used for setting of real HW interface.

Parameters

hw1	pointer to HW structure, that manipulate with sensors. It can represents I2C, SPI or UART interface. For sensors, that dont have that interface (primitive data types) us NULL.
hw2	Additional information fo specify HW interface, or type specification.

resetSensor

void(* SensorInterface_t::resetSensor) (void)

Reset sensor settings.

It is used in some sensors only. E.g. in one-wire termometers (module_ow_bus.h), where this interface can represent more than 1 sensor.

---

The documentation for this struct was generated from the following file:

• inc/sensor.h
