Module for communication Real Time Clock (RTC) peripheral used on MCU. Supported modes: More...

#include "sensor.h"
#include "simplefs_config.h"
#include <time.h>

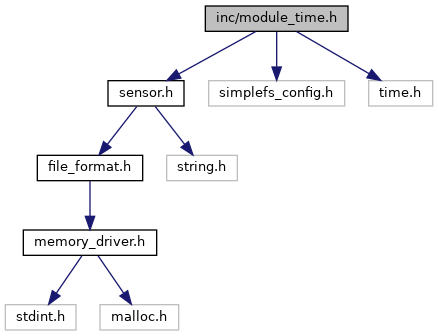

Include dependency graph for module_time.h:

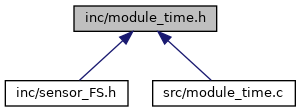

This graph shows which files directly or indirectly include this file:

Classes
struct	RTC_TimeTypeDef
	Time structure for RTC module. More...

struct	RTC_DateTypeDef
	Date structure for RTC module. More...

Macros
#define	RTC_HandleTypeDef void
	Dummy datatype in simulation mode.

Functions
void	time_init (void *rtc_handle, uint16_t time_format)
	Initialization of RTC module. More...

SensorID_t *	get_tsensor_id (uint8_t index)
	Return sensor ID. More...

RecordDescriptor_t	time_getType ()
	Return type specification for RTC module. More...

SensorValue_t *	get_time_value ()
	Read prepared value from RTC module. More...

void	time_reset (void)
	Do nothing.

void	time_doMeasure (void)
	Do nothing.

uint8_t	time_count (void)
	Return number of sensors in this peripheral. More...

Detailed Description

Module for communication Real Time Clock (RTC) peripheral used on MCU. Supported modes:

Configuration of this module: Format of measured time:

#Properties of ADC module

Interface specification:

sensor type: SENSOR_TYPE_TIME (0x04)
format of measured value: FORMAT_META_NONE
data length of measured value: 4B (FORMAT_META_FMT_SPECIAL_TIME) or 6B (FORMAT_META_FMT_SPECIAL_BCD)
Q format parameters: Q_FORMAT_NONE

Example of RTC record format stored in META area:

Sensor ID	TYPE	META_FORMAT	Q_m	Q_n
0 .. 7B	8B	9B	10B	11B
0x1060A8E800000000	0x04	0x34 => FORMAT_META_FMT_SPECIAL_TIME + FORMAT_META_LENGTH_4B	Q_FORMAT_NONE	Q_FORMAT_NONE
0x1060A8E800000000	0x04	0x46 => FORMAT_META_FMT_SPECIAL_BCD + FORMAT_META_LENGTH_6B	Q_FORMAT_NONE	Q_FORMAT_NONE
