low level interface to specific types of used memories More...

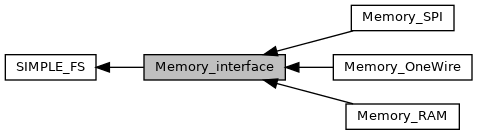

Collaboration diagram for Memory_interface:

Modules
	Memory_OneWire
	low level implementation 1-wire interface

	Memory_RAM
	low level implementation memory emulation (in RAM)

	Memory_SPI
	low level implementation SPI and QSPI memory

Classes
struct	MemoryDriver_t
	Interface that defines list of functions with basic operation with memory. More...

Macros
#define	MEMORY_DRIVER_RAM 1

#define	MEMORY_DRIVER_ONE_WIRE 2

#define	MEMORY_DRIVER_SPI 3

#define	MEMORY_DRIVER MEMORY_DRIVER_RAM

#define	MEMORY_EMPTY_VALUE (uint8_t)0xFF

#define	SIMULATION 1

#define	MEMORY_PAGE_SIZE 256

#define	FS_VARIANT_U 0x55
	Ultra low capacity (~1kB)

#define	FS_VARIANT_X 0x58
	Extra low capacity (~4kB)

#define	FS_VARIANT_S 0x53
	Small capacity (~20kB)

#define	FS_VARIANT_L 0x4C
	Large capacity (~4MB+)

#define	FS_SIZE_VARIANT FS_VARIANT_L

Typedefs
typedef enum state	FS_state
	State definition for memory operations.

Enumerations
enum	state { STATE_OK, STATE_ERR }
	State definition for memory operations.

Detailed Description

low level interface to specific types of used memories

Macro Definition Documentation

#define FS_SIZE_VARIANT FS_VARIANT_L
