Mesh MAC table, is lookup table for node address and MAC address. It acts as DHCP table. Size of table can be defined using template like this: More...

#include <meshTables.h>

Inheritance diagram for MeshMACTable< BufferSize >:

[legend]

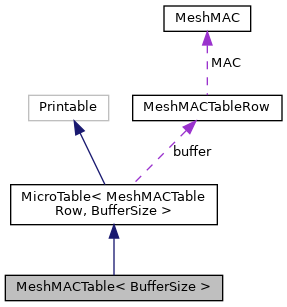

Collaboration diagram for MeshMACTable< BufferSize >:

[legend]

Public Member Functions
	MeshMACTable (const uint32_t rowLife)
	Constructor. More...

bool	set (uint8_t address, MeshMAC MAC, int16_t valid=-1)
	Sets row values in table. More...

int16_t	add (MeshMAC mac, bool isGateway=false)
	Adds MAC address to table at first free index. More...

int16_t	getAddressFromMAC (MeshMAC mac, int16_t startPos=0) const
	Searches for node address, which is assinged to node MAC address. More...

MeshMAC	getMACFromAddress (uint8_t address) const
	Gets node MAC address assigned to node address. More...

bool	addressExists (uint8_t address) const
	Checks if node address exists in table. More...

bool	MACExists (MeshMAC mac) const
	Checks if node MAC address exists in table. More...

int16_t	getFreeAddress (uint8_t startFrom=MESH_GATEWAY_MAX_ADDRESS+1)
	Gets first available address. More...

void	setValidityChangeCallback (void(callback)(MeshMACTable< BufferSize > , int16_t, const MeshMACTableRow &, bool, bool))
	Sets callback function, which is called when row validity has changed. There can be 3 states of validity: More...

Public Member Functions inherited from MicroTable< MeshMACTableRow, BufferSize >
	MicroTable (const uint32_t rowLife)
	Constructor. More...

const MeshMACTableRow &	get (int16_t index) const
	Gets row from table by index. More...

MeshMACTableRow	get (int16_t index)
	Gets row from table by index. More...

const MeshMACTableRow &	operator[] (int16_t index) const
	Gets row from table by index. More...

MeshMACTableRow	operator[] (int16_t index)
	Gets row from table by index. More...

bool	set (int16_t index, const MeshMACTableRow &row)
	Sets row values in table. Row life time is set to maximum. More...

bool	set (int16_t index, const MeshMACTableRow &row, int16_t rawLifeTime_)
	Sets row values in table. More...

bool	remove (const MeshMACTableRow &rowRef)
	Removes first row, which is equal to rowRef. More...

bool	remove (int16_t index)
	Removes row at index. More...

void	clear ()
	Removes all rows data. More...

void	validate ()
	Decreases all valid column values in specified interval (row lifetime). If valid value is 0, row will not be longer valid. More...

bool	setRawRemainingLifeTime (int16_t index, uint8_t rawLifeTime_=255)
	Sets row life time. Valid counter for this rowcan be changed, only when row is still valid. More...

virtual int16_t	getIndexOf (const MeshMACTableRow &rowRef) const
	Gets index of row which is equal to rowRef. More...

int16_t	getFirstBlankRowIndex (int16_t startPos=0) const
	Gets index of first blank row. More...

int16_t	getOldestRowIndex () const
	Gets index of first oldest row. More...

bool	exists (int16_t index) const
	Checks if row at specified index exists in table. More...

bool	exists (const MeshMACTableRow &rowRef) const
	Checks if any row, which is equal to rowRef exists in table. More...

bool	isRowBlank (int16_t index) const
	Checks if row is blank or not. Row, that is not valid is blank. More...

int16_t	size () const
	Gets capacity of table in rows. More...

int16_t	count () const
	Gets number of used rows in buffer. More...

uint8_t	getMaxRowLifeTime () const
	Gets the maximum row life time in millisseconds. More...

int16_t	getRealUsedSize () const
	Gets real used count of rows in table. This value is calculated like this: last_used_row_index + 1. More...

uint8_t	getFragmentation () const
	Calculates fragmentation in %. Fragmentation is calculated like this: (getRealUsedSize() - count())/getRealUsedSize() More...

void	defragment ()
	Removes blank spaces between rows. Call this to speed up searching when buffer is fragmented. More...

uint32_t	getRowRemainingLifeTime (int16_t index) const
	Gets selected row's remaining life time in milliseconds. More...

uint8_t	getRawRowRemainingLifeTime (int16_t index) const
	Gets selected row's raw remaining life time. More...

uint32_t	getLifeTimeResolution () const
	Gets life time resolution in milliseconds. More...

uint8_t	convertLifeTimeToRaw (uint32_t lifeTime) const
	Converts life time in milliseconds to raw life time value. Value is rounded up. More...

uint32_t	convertRawToLifeTime (uint8_t rawLifeTime) const
	Converts raw life time value to life time in milliseconds. Value is aproximate. To get accurate result, use getRowRemainingLifeTime() method. More...

virtual size_t	getRawDataSize () const
	Calculates, how many bytes will be printed, when using command printRaw. More...

virtual size_t	printRaw (OSTREAM &stream, const char tableIdentifier[4]) const
	Prints raw table data through stream. Those data can be decoded in PC or in another MCU. More...

size_t	print (OSTREAM &stream, bool showIndexes=true, bool doNotPrintBlank=true, bool showRemainingRowLifetime=true) const
	Prints items from table to stream. More...

size_t	printTo (Print &p) const override
	Makes this class printable. More...

Protected Member Functions
void	onRowLifeChanged (int16_t index, uint8_t old_raw, uint8_t new_raw) override
	This method is called when table is cleared. It is called after cleaning is done, so all variables are fresh. More...

Protected Member Functions inherited from MicroTable< MeshMACTableRow, BufferSize >
virtual void	onCreate (int16_t index, const MeshMACTableRow &newValue, uint8_t newRawLifeTime)
	This method is called when valid row is set to blank space. It is called after count calculation is done, but before buffer is updated. More...

virtual void	onSet (int16_t index, const MeshMACTableRow &oldValue, uint8_t oldRawLifeTime, const MeshMACTableRow &newValue, uint8_t newRawLifeTime)
	This method is called when valid row is set to new value. It is called after count calculation is done, but before buffer is updated. More...

virtual void	onRemove (int16_t index, const MeshMACTableRow &oldValue, uint8_t oldRawLifeTime, bool removedByValidation=false)
	This method is called when valid row is removed. It is called after count calculation is done, but before buffer is updated. More...

virtual void	onClear ()
	This method is called when table is cleared. It is called after cleaning is done, so all variables are fresh. More...

Additional Inherited Members
Protected Attributes inherited from MicroTable< MeshMACTableRow, BufferSize >
MeshMACTableRow	buffer [RowsCount]

uint8_t	lifeTime [RowsCount]

uint32_t	lastValidationTime

int16_t	usedBufferSize

int16_t	realUsedSize

const uint32_t	ValidationInterval

const uint32_t	RowLife

Detailed Description

template<int16_t BufferSize>
class MeshMACTable< BufferSize >

Mesh MAC table, is lookup table for node address and MAC address. It acts as DHCP table. Size of table can be defined using template like this:

MeshMACTable<255> dhcpTable(60000);

Size of route table in example is 255 rows and lifetime of one row is 60 seconds.

Difference between Static and Dynamic mesh route table

Static MRT takes up less bytes in RAM, because it uses only 3 columns, instead of 4
Static MRT is way more fasted than dynamic MRT.
Source in static MRT has to be lower than BufferSize, because BufferSize sets limit for number of nodes.

How data are stored:

Node address - as index (not physically stored)	Node MAC [MeshMAC]	Valid [uint8_t]
0	XXX	XXX
1	XXX	XXX
...	...	...
x - depends on BufferSize	XXX	XXX

Constructor & Destructor Documentation

◆ MeshMACTable()

template<int16_t BufferSize>

MeshMACTable< BufferSize >::MeshMACTable ( const uint32_t rowLife )

inline

Constructor.

Parameters

rowLife Life time of each row in milliseconds. Value has to be higher than 0, but it is recommended to set value to higher than 100 seconds.

Member Function Documentation

◆ add()

template<int16_t BufferSize>

int16_t MeshMACTable< BufferSize >::add	(	MeshMAC	mac,
		bool	isGateway = `false`
	)

inline

Adds MAC address to table at first free index.

Parameters

mac	MAC address to add.
isGateway	True if gateway node is added. If set to false, minimum available address (index) starts at (MESH_GATEWAY_MAX_ADDRESS + 1), else it starts at 0.

Returns: Returns assigned address to MAC address or -1 if no free address was found.

◆ addressExists()

template<int16_t BufferSize>

bool MeshMACTable< BufferSize >::addressExists ( uint8_t address ) const

inline

Checks if node address exists in table.

◆ getAddressFromMAC()

template<int16_t BufferSize>

int16_t MeshMACTable< BufferSize >::getAddressFromMAC	(	MeshMAC	mac,
		int16_t	startPos = `0`
	)		const

inline

Searches for node address, which is assinged to node MAC address.

Note: One MAC address can contain multiple node addresses. To list them all call this method in loop until -1 is returned.
MeshMACTable<250> table(86400);

//Here comes some wotk with table (setting, removing, etc.)

const MeshMAC searchedMAC(0,0,0,1);

int16_t source = -1;

while(source = table.getAddressFromMAC(searchedMAC, source+1) >= 0){

cout << "Node address found: " << (int)source << endl;

}

Parameters

mac	MAC address of node, which addresses has to be found.
startPos	Index (address), where to start searching.

Returns: Returns address assigned to MAC address of node.

◆ getFreeAddress()

template<int16_t BufferSize>

int16_t MeshMACTable< BufferSize >::getFreeAddress ( uint8_t startFrom = MESH_GATEWAY_MAX_ADDRESS + 1 )

inline

Gets first available address.

Parameters

startFrom Minimum address, where to start searching from.

Returns: Returns first available address or -1 when no available address exists.

◆ getMACFromAddress()

template<int16_t BufferSize>

MeshMAC MeshMACTable< BufferSize >::getMACFromAddress ( uint8_t address ) const

inline

Gets node MAC address assigned to node address.

Note: Only one node MAC address can be assigned to one node address, but multiple node addresses can be assigned to one node MAC address.

Parameters

address Address of node.

Returns: Returns MAC address assigned to node address or invalid MeshMAC struct if no MAC was found.

◆ MACExists()

template<int16_t BufferSize>

bool MeshMACTable< BufferSize >::MACExists ( MeshMAC mac ) const

inline

Checks if node MAC address exists in table.

◆ onRowLifeChanged()

template<int16_t BufferSize>

void MeshMACTable< BufferSize >::onRowLifeChanged	(	int16_t	index,
		uint8_t	old_raw,
		uint8_t	new_raw
	)

inlineoverrideprotectedvirtual

This method is called when table is cleared. It is called after cleaning is done, so all variables are fresh.

Parameters

index	Index of changed row.
old_raw	Old raw life time value (0-255).
new_raw	New raw life time value (0-255).

Reimplemented from MicroTable< MeshMACTableRow, BufferSize >.

◆ set()

template<int16_t BufferSize>

bool MeshMACTable< BufferSize >::set	(	uint8_t	address,
		MeshMAC	MAC,
		int16_t	valid = `-1`
	)

inline

Sets row values in table.

Parameters

address	Variable address of node.
MAC	Physical MAC address of node.
valid	Set this value to 255 to reset row lifetime. Set it to -1, to keep old value. Accepted value (0-255).

Returns: Returns true when row was set.

◆ setValidityChangeCallback()

template<int16_t BufferSize>

void MeshMACTable< BufferSize >::setValidityChangeCallback ( void(*)(MeshMACTable< BufferSize > *, int16_t, const MeshMACTableRow &, bool, bool) callback )

inline

Sets callback function, which is called when row validity has changed. There can be 3 states of validity:

Valid (rawLifeTime > DHCPTABLE_ROW_RAW_LIFETIME_RESERVED): valid = true, removed = false
Invalid (rawLifeTime <= DHCPTABLE_ROW_RAW_LIFETIME_RESERVED && rawLifeTime > 0): valid = false, removed = false
Blank (rawLifeTime == 0) valid = false, removed = true
Parameters

callback Callback function.

Callback function parameters

MeshRouteTable<BufferSize> Pointer to table which called this callback
int16_t - Index of item.
MeshMACTableRow - Affected row.
bool - True if row is valid.
bool - True if row is removed.

The documentation for this class was generated from the following file:

Mesh/Inc/meshTables.h
