#include "memory_driver.h"
#include "simplefs_config.h"

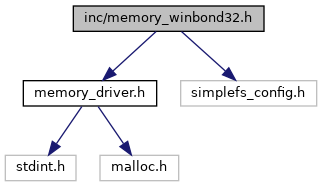

Include dependency graph for memory_winbond32.h:

Macros
#define	MEMORY_MANUFACTURER_WINBOND 0xEF

#define	MEMORY_MANUFACTURER_MICRON 0x20

#define	MEMORY_MANUFACTURER_CYPRESS 0x01

#define	W_SR 0x01

#define	PAGE_PGM 0x02

#define	READ 0x03

#define	W_DE 0x04

#define	R_SR1 0x05

#define	W_EN 0x06

#define	FAST_READ 0x0b

#define	SECTOR_E 0x20

#define	QPAGE_PGM 0x32

#define	READ_DSPI 0x3B

#define	R_SR2 0x35

#define	R_UNIQUE_ID 0x4b

#define	W_SR_ENABLE 0x50

#define	CHIP_ERASE2 0x60

#define	BLK_E_32K 0x52

#define	E_SUSPEND 0x75

#define	E_RESUME 0x7a

#define	R_MANUF_ID 0x90

#define	R_JEDEC_ID 0x9f

#define	HIGH_PERF_M 0xa3

#define	RELEASE 0xab

#define	PDWN 0xb9

#define	CHIP_ERASE 0xc7

#define	BLK_E_64K 0xD8

#define	CONT_R_RST 0xff

#define	SR1_BUSY_MASK 0x01

#define	SR1_WEN_MASK 0x02

#define	WINBOND_MANUF 0xef

#define	DEFAULT_TIMEOUT 200

#define	WINBOND_32_PAGE 256

#define	WINBOND_32_SECTOR_SIZE WINBOND_32_PAGE*16
	WINBOND_32_SECTOR = 4096.

#define	WINBOND_32_SECTOR_COUNT 1024

Typedefs
typedef enum __winbond_status_mem_	Winbond_memoryStatus

typedef struct __winbond_driver_	WindBondDriver_TypeDef

Enumerations
enum	__winbond_status_mem_ { MEMORY_EMPTY =0, MEMORY_NOT_EMPTY, MEMORY_BUSY, MEMORY_ERROR }

Functions
uint8_t	winbond_init (void *hw_object)
	end IO functions More...

uint8_t	winbond_init (void hspi, void GPIOx, uint16_t GPIO_Pin)

uint8_t	winbond_isBusy (void)

uint16_t	winbond_readSR (void)

uint8_t	winbond_readManufacturer (void)

uint64_t	winbond_readUniqueID ()

uint8_t	winbond_readMemoryType (void)

uint8_t	winbond_readCapacity (void)

uint16_t	winbond_read (uint32_t addr, uint8_t *buf, uint16_t n)

uint16_t	winbond_read_DMA (uint32_t addr, uint8_t *buf, uint16_t n)

uint16_t	winbond_write (uint32_t addr, uint8_t *buf, int32_t n)

uint8_t	winbond_powerDown (void)

uint8_t	winbond_powerUp (void)

uint8_t	winbond_eraseSector (uint32_t addr_start)

uint8_t	winbond_eraseAll (void)

Winbond_memoryStatus	winbond_checkSector (uint16_t sector_index)

uint8_t	winbond_writeToMemory (uint32_t address, uint8_t *buf, uint16_t n)

uint8_t *	winbond_readChipInfo (void)

void	winbond_dump (void)

uint8_t	winbond_dma_cmplt ()

uint8_t	winbond_dma_half ()

Detailed Description
